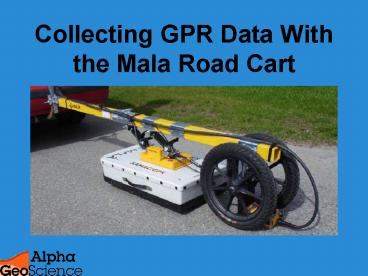

Collecting GPR Data With the Mala Road Cart

1
Collecting GPR Data With the Mala Road Cart
2
Introducing The Mala GPR Road Cart
3
Mounting of High Frequency GPR Antenna on the
Mala Road Cart
4
Mounting of Low Frequency GPR Antenna on the Mala
Road Cart
5
Collecting GPR Data With the Mala Road Cart
6
GPR Data Collected Using 800MHz and 1.6GHz
Antennas
800MHz GPR Data Profile, Full Profile
1.6GMHz GPR Data Profile, Full Profile
7
Construction Layers Visible Within the GPR Data
Profiles
800MHz GPR Data, reinforcement and base of road
slab is visible
1.6GHz GPR Data, reinforcement and base of road
slab is clearly visible
8
Reporting of Depth of Cover of Reinforcement and
Thickness of Road Slab from GPR Profiles
Reinforcement Depth and Slab Base Mapped in
800MHz GPR Data Profile
Reinforcement Depth and Slab Base Mapped in
1.6GHz GPR Data Profile
9
Identification of Individual Reinforcement Bars
by the Use of 1.6GHz GPR Antenna.
800MHz GPR Data
Utilities at Base of Road Slab
Base of Road Slab
Reinforcement Bars, the lower resolution of the
800MHz GPR antenna does not allow the individual
bars to be identified
Construction Change in Road Slab
1.6GHz GPR Data
Reinforcement Bars
Base of Road Slab
Interpreted Utilities at Base of Road Slab
Construction Change in Road Slab
10
GPR Enables the Location of Buried Utilities
Typical GPR Response from a Buried Utility Low
amplitude response is interpreted to be due to
the utility being a PVC pipe.
Increase in plot scale to highlight response.
The low amplitude response is interpreted to be
due to the utility being a PVC pipe.
11
Advantages of Using a GPR Cart System

• Allows multiple GPR antennas to be deployed along
  the same profile, reduction in data collection
  time.
• The GPR survey can investigate construction
  details and also locate services with the one
  data collection event.
• Location of voiding and engineering information
  can be gained from the GPR profiles by the use of
  multiple antenna frequencies.

12
Mala GPR Systems

• Any configuration of Mala GPR Systems can be used
  with the Cart System.
• Individual CX11 (Concrete System)
• X3M GPR control unit and XV11 monitor.
• ProEx GPR system, running 2 (or more) antennas.

13
Alpha can supply the Mala GPR Road Cart for

• Rental
• Purchase
• Road Survey Consulting

14
Technical Specifications

• Dimensions (cm)
• Unpacked 130 (L) x 30 (W) x 50 (D)
• Shipping box 140 (L) x 40 (W) x 55 (D)
• Weight (kg)
• Unpacked 21
• Packed (box) 37
• Wheel size 16
• Wheel type puncture proof
• Distance encoder included

15

• For Instrument Sales and Rental contact
• Grant Rosewarne
• Phone [phone]
• Email GRosewarne_at_alpha-geo.com
• For Survey and Consulting contact
• Jamie Speer
• Phone [phone]
• Email JSpeer_at_alpha-geo.com
• Web site http//www.alpha-geo.com
