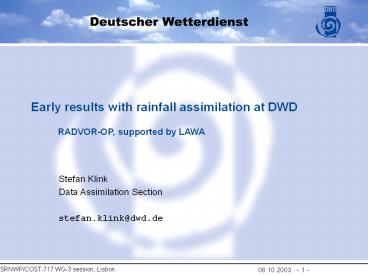

Early results with rainfall assimilation at
DWDRADVOR-OP, supported by LAWA
Stefan Klink Data Assimilation
Section stefan.klink_at_dwd.de
2
Early results with rainfall assimilation at DWD
  • Radar data
  • Real case study
  • Humidity adjustment
  • Filtering of vertical profiles
  • Influence of convective parameterisation scheme
  • Influence of mesh size
  • Summary

3
Radar data
  • Input data currently used
  • radar reflectivity at the ground (int.
    Composite Germany and surrounding countries)
  • pixel size 4km ? 4km
  • time resolution 15 minutes (data from volume
    scan)
  • conversion reflectivity to precipitation rate by
    simple Z-R-relation
  • problems clutter, only 7 reflectivity classes

4
Radar data
  • new radar data
  • input data reflectivities from precipitation
    scan, mesh 1km ? 1, time resolution 5 minutes
  • correction of orographic attenuation
  • variable Z-R-relation
  • compositing
  • still incomplete clutter correction

5
Real case study experimental setup
  • Convective event on 28. Aug. 2002 over western
    Germany
  • LM runs on the operational domain
  • mesh size 7 km
  • LM runs on an experimental domain
  • covering almost Germany
  • mesh size 2.8 km
  • convective parameterisation scheme switched off
  • laterally driven by GME
  • 6h Nudging LHN starting at 6 UTC
  • adjustment of humidity during LHN
  • 6h free forecast starting at 12 UTC

6
Real case study humidity adjustment
  • Increased heating
  • ? increase q to reach f100 over nudging
    timescale ?
  • Reduced heating
  • ? decrease q (maintain f)

7
Real case study humidity adjustment
  • LM runs on the experimental domain
  • mesh size 2.8 km
  • without humidity adjustment during LHN
  • with humidity adjustment during LHN

8
Real case study humidity adjustment
  • Hourly sums of modeled and radar-observed
    precipitation in mm/h
  • Nudging 08-09 UTC
  • Nudging11-12 UTC

9
Real case study humidity adjustment
  • free forecast14-15 UTC

10
Real case study filtering of vertical profiles
vertical cross section W-E, t 11 UTC, with
humidity adjustment specific cloud liquid
water content in g/kg
no filtering
filtering
11
Real case study influence of convective
parameterisation scheme
  • LM runs on the operational domain
  • mesh size 7 km
  • no adjustment of humidity during LHN
  • without convective parameterisation scheme
  • with convective parameterisation scheme

12
Real case study influence of convective
parameterisation scheme
  • Hourly sums of modeled and radar-observed
    precipitation in mm/h
  • Nudging 08-09 UTC
  • Nudging 09-10 UTC

13
Real case study influence of convective
parameterisation scheme
  • Nudging
  • 11-12 UTC
  • free forecast
  • 12-13 UTC

14
Real case study influence of convective
parameterisation scheme
  • free forecast
  • 14-15 UTC

15
Case Studies comparison mesh sizes 7 km and 2.8
km
  • LM runs
  • CTRL 7 km
  • mesh size 7km (operational domain)
  • LHN 7 km
  • mesh size 7 km (operational domain)
  • LHN 2.8 km
  • mesh size 2.8 km (smaller model domain)

16
Case Studies comparison mesh sizes 7 km and 2.8
km
  • Hourly sums of modeled and radar-observed
    precipitation in mm/h
  • Nudging06- 07 UTC
  • Nudging 08-09 UTC

17
Case Studies comparison mesh sizes 7 km and 2.8
km
  • Nudging
  • 11-12 UTC
  • free forecast
  • 12-13 UTC

18
Case Studies comparison mesh sizes 7 km and 2.8
km
  • free forecast
  • 14-15 UTC
  • free forecast
  • 17-18 UTC

19
Summary
  • Results
  • adjustment of humidity supports the assimilation
    of precipitation and leads to more exact free
    forecasts
  • explicit simulation of convection produces more
    realistic patterns and amounts of precipitation
    than the corresponding model run with a
    parameterisation scheme
  • model with 2.8 km mesh size shows potential for
    further improvements of precipitation forecast
  • sporadical occurrence of spurious precipitation
  • influence of the assimilation lasts for several
    hours

20
Summary
  • Future work
  • numerical problems with noisy profiles of latent
    heat (2 ?z-structures)
  • quality of radar data
  • improvements to extend the influence of
    assimilation during free model run
  • prognostic precipitation
