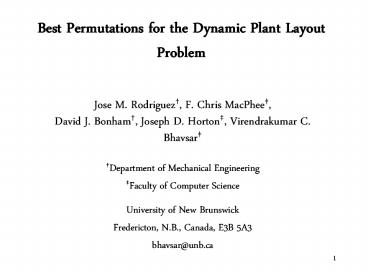

Title: Best Permutations for the Dynamic Plant Layout Problem


1
Best Permutations for the Dynamic Plant Layout
Problem
  • Jose M. Rodriguez, F. Chris MacPhee, David J.
    Bonham, Joseph D. Horton, Virendrakumar C.
    Bhavsar
  • Department of Mechanical Engineering
  • Faculty of Computer Science
  • University of New Brunswick
  • Fredericton, N.B., Canada, E3B 5A3
  • bhavsar_at_unb.ca

2
Outline
  • Introduction
  • Problem Statement
  • Description of the Algorithm
  • Experimental Results
  • Conclusions

3
Introduction
  • Plant layout an engineering design problem

4
Facilities Planning Process
  • Strategic Planning stages
  • Planning (strategic level)
  • Design (tactical level)
  • Implementation (operational level).
  • Plant layout objectives are determined according
    to
  • Selection of a strategy to manufacture the
    products (i.e., Manufacturing strategy)
  • Definition of the products (i.e., Product
    design)
  • Specification of the process plan (i.e., Process
    design)
  • Definition of the production plan (i.e.,
    Schedule design).

S ? Objectives are determined T ? Other plant
layout requirements are determined O ? Plant
layout is selected and maintained.
5
(No Transcript)
6
Problem Statement
The Dynamic PlantLayout Problem (DPLP)as an
optimization problem J. Balakrishnan and C. H.
Cheng, Dynamic Layout Algorithms A
State-of-the-art Survey, International Journal
of Management Science, vol. 264, pp. 507-521,
1998.
7
DPLP Formulation
8
DPLP Formulation
Ytijl - 0,1 dependant variable for including cost
of shifting facility i from location j to
location l in period t Atijl - fixed cost of
shifting facility i from location j to location l
in period t Ctijkl - cost of material flow
between facility i located at j and facility k
located at l in period t djl - distance from
location j to location l ftik - flow of material
between facility i and facility k in period t
P - number of periods n - number of facilities
and locations t - a given period of the planning
horizon i,k - facilities in the layout j,l -
locations in the layout
9
Genetic and Tabu Search Algorithm (GATS)
  • Overview of the GATS code
  • The GATS search space
  • The triangular evolutionary technique used by
    GATS
  • Research questions

10
Overview of the GATS Code
11
The GATS Search Space
  • Location of a DPLP instance cost in the GATS
    search space is defined by (P, CF, N), where
  • Population (P) refers to the number of
    chromosomes or layouts in the parent pool
  • Convergence factor (CF) is the evolution
    threshold a better solution must be found every
    CF generations or the tabu search parameters are
    modified
  • Mutation (N) refers to the number of mutations
    to be performed between the crossover and tabu
    search routines

12
The Triangular Evolutionary Technique Used by GATS
Synergetic Evolution (i.e., improving population
quality at each generation)
13
Research Questions
  • How many optimal layout sets are there and
    what are they?
  • How many times is the layout changed during
    the five periods (i.e., re-layouts) and at what
    cost?

14
Flow/Distance matrices shifting costs for the
Rosenblatt (1986) Instance
15
GATS Early Convergence
16
GATS Final Convergence
17
GATS End of Evolution
18
An Optimal Layout Set
Optimal --gt Cost 71187 , NUM_MOVE 4 ,
TABU_LEN 1 , G 138 , Real G 38 The Layout
is P 11, cost 71187 No.1 Period 6 4 2 5 3 1
No.2 Period 6 4 2 5 3 1 No.3 Period 6 4 2 3 5
1 No.4 Period 4 6 2 3 5 1 No.5 Period 4 1 2 3
5 6
19
All Layout Sets Found by GATS

20
Experimental Results
The GATS site http//acrl.cs.unb.ca/research/gat
s/ Experiments were performed on infrastructure
managed by the Advanced Computational Research
Laboratory at the University of New Brunswick
21
ACRL Infrastructure
22
ACRL Usage
From April 2003 - March 2004, GATS utilized over
11 CPU years of compute time on the ACRL chorus
cluster.
23
DPLP Algorithms
  • Genetic Algorithms
  • CVGA - Conway, D.G. and Venkataramanan, M.A.
  • NLGA - Balakrishnan, J. and Cheng, C.H.
  • GADP - Balakrishnan, J., Cheng, C.H., Conway,
    D.G., and Lau, C.M.
  • CCGA - Chang, M., Sugiyama, M., Ohkura, K., and
    Ueda, K.
  • SymEA - Chang, M., Ohkura, K., Ueda, K., and
    Sugiyama, M.
  • Simulated Annealing Algorithms
  • SA - Baykasoglu, A. and Gindy, N.N.Z. SA, GA, DP
  • Dynamic Programming, Genetic, and Simulated
    Annealing Algorithms
  • DP-GA-SA - Erel, E., Ghosh, J.B., Simon, J.T.

24
DPLP ResultsTotal cost of 6 department / 5
period instances
25
DPLP ResultsTotal cost of 6 department / 10
period instances
26
DPLP ResultsTotal cost of 15 department / 5
period instances
27
DPLP ResultsTotal cost of 15 department / 10
period instances
28
DPLP ResultsTotal cost of 30 department / 5
period instances
29
DPLP ResultsTotal cost of 30 department / 10
period instances
30
Conclusions Results
  • GATS has been developed to solve QAP and DPLP
    instances. We have challenged the well-known
    QAPLIB, a selected DPLP dataset, and other
    difficult instances.
  • Optimum or best-known permutations have been
    generated for over 82 of 210 available QAP and
    DPLP instances.
  • Better solutions than those known to date for the
    DPLP have been found. Of the attempted 51 DPLP
    instances, 29 now have new best-known solution
    found by GATS.

31
Conclusions Benefits
  • Multiple global optima provide many benefits
  • equally optimal layouts by different qualitative
    criteria
  • solutions can be chosen that may have fewer
    layout changes, requiring fewer interruptions in
    the production system.
  • Most results published in the literature include
    only the layout cost (no permutation). This has
    lead to false best known solutions and
    retractions. Published results should always
    include both costs and permutations for
    verification purposes.

32
Conclusions Future Work
  • A provisional patent regarding GATS has been
    filed with the United States Patent and Trademark
    Office . Next steps
  • Although the design of a factory is a planning
    problem, response time is as important as
    solution quality. The concept of iterative
    design is implicit in GATS and can only be
    realized with a high performance computing (HPC)
    infrastructure.
