Title: Steve Blonstein, CFI West Valley Flying Club

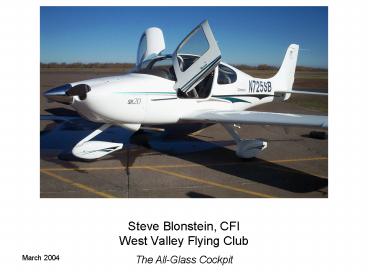

1
Steve Blonstein, CFIWest Valley Flying Club
2
Agenda
  • Current Systems
  • Thought Provoking Questions
  • Terminology
  • Systems Overview
  • Primary Flight Display
  • Multifunction Display
  • GNS430
  • STEC55x Autopilot
  • Discussion

3
Diamond DA40 Garmin G1000
CURRENT SYSTEMS
4
Diamond DA40 Avidyne
CURRENT SYSTEMS
5
Eclipse Personal Jet Avio
CURRENT SYSTEMS
6
Chelton Flight Systems - HITS
CURRENT SYSTEMS
7
Cirrus SRV/SR20/SR22 - Avidyne
CURRENT SYSTEMS
8
5 Thought Provoking Questions
  • Is an all-glass panel safer than a conventional
    panel ?
  • As a community, are we prepared for such rapid
    innovation ?
  • How much training is required to be competent
    and safe ?
  • What happens in the event the panels go dark?
  • How should one manage database currency ?

Well come back to discuss these important
questions later on
9
Terminology
  • TAA Technically Advanced Aircraft (e.g. All
    Glass Cockpit, GPS, A/P)
  • PFD Primary Flight Display (1 display with AS,
    Altimeter, VSI, HSI, TC)
  • MFD Multi-Function Display (1 display with
    maps, engine, wx, traffic)
  • HITS Highway In The Sky (like Chelton Flight
    Systems)
  • FITS FAA Industry Training Standards (e.g. TAA
    with PFD/MFD/HITS)
  • ADAHRS or ADAHARS Air Data Altitude Heading
    and Reference System
  • GPS Global Positioning System
  • GPSS GPS Steering

10
System Structure
ADAHRS
MFD
Air Data
Heading
Attitude
GPS 1
PFD
Crossfill
GPS 2
GPSS relay
S-TEC 55X
T/C
11
Electrical Components
  • Alternator 1
  • 75 amp, 28 volts
  • Belt driven
  • Internally rectified
  • Alternator 2
  • 20 amp, 28.75 volts
  • Gear driven
  • Internally rectified

12
Electrical Components
  • Battery 1
  • 24 volt, 10 amp-hour
  • Lead Acid
  • Battery 2
  • 2, 12 volt, 7 amp-hour connected in series
  • Lead Acid
  • Sealed in an acid resistant container
  • Located at FS 222 below parachute canister

13
Avidyne PFD
  • The Avidyne PFD incorporates the functionality
    of
  • Airspeed Indicator
  • Attitude Indicator
  • Altimeter
  • VSI
  • HSI (HI VOR/LOC)

14
Avidyne PFD(2)
  • The display is integrated with an Air Data /
    Attitude Heading Reference System (ADAHRS)
  • Three axis solid state gyro system
  • Provides
  • Pitch
  • Roll
  • Heading

15
Avidyne PFD(3)
  • Turn Coordinator
  • Scale show extending from either side of digital
    heading representation
  • Graduations for half and full standard rate turn
  • Blue bar extends into scale as turn is entered

16
Avidyne PFD(4)
  • Inclinometer
  • Represented as black trapezoid below angle of
    bank indicator

17
PFD - Initialization
  • Requires approximately 3 minutes to align
  • Countdown begins when unit is 40 seconds from
    completing the initialization process
  • Air data will become valid prior to attitude
    information
  • Red Xs indicate invalid data
  • Brightness Default 75

18
PFD - Initialization
  • Default configuration
  • HDG Bug 360
  • Altitude Bug Nearest hundred feet
  • VSI Bug 0
  • Baro Set 29.92 in. Hg
  • Nav GPS 1
  • Bearing Off
  • Aux Off
  • View 360

19
PFD Failures (1)
  • Air Data Failure
  • Refer to standby instrumentation

20
PFD Failures (2)
  • Recoverable Attitude Data Failure
  • Occurs when
  • Attitude change exceeds 90 per second
  • Small power fluctuation
  • Gyros are reset by pressing Fast Erect line
    select key

21
PFD - Failures (3)
  • Non-recoverable Failure
  • Cannot be corrected in flight
  • Must refer to standby instruments

22
PFD Failures (4)
  • Lamp or LCD failure
  • Keys are lit no display
  • Take system off line by use of CB, this will
    ensure that you have predictable autopilot
    operations.

23
PFD - Limitations
  • Avidyne PFD Pilot Guide must be immediately
    available in flight
  • PFD must be aligned with no flags for takeoff
  • All standby instruments must be working for
    takeoff
  • PFD may be inoperative for VFR operations

24
Avidyne MFD
  • The Avidyne MFD supports
  • Map/Terrain/Nearest
  • Engine Management
  • Fuel Management
  • Lean Assist
  • Traffic
  • Stormscope

25
MFD - Nearest Page
  • Separate Avidyne database to support this

26
MFD Engine Management
  • All important engine, fuel, and electrical
    information on a single page
  • Use in run-up
  • Use on takeoff

27
MFD Lean Assist
  • Do not lean in climb
  • Lean at altitude using the lean assist function
  • After reaching Best Power try using Normalize

28
MFD - Limitations
  • The moving map display must not be used as the
    primary navigation instrument.
  • Use of map page during IFR flight requires an IFR
    approved GPS receiver installation operated in
    accordance with applicable limitations.
  • Under no circumstances should the Map page
    terrain representations be used as a basis for
    terrain avoidance.
  • The electronic checklists are supplements to the
    POH checklists and is advisory only. These must
    not be used as the primary set of onboard
    airplane checklists.
  • The Avidyne FlightMax EX-Series Pilots Guide
    must be available to the pilot during flight
    operations.

29
GPS GNS430
  • Acts as a communications and navigation
    management system
  • Integrates radio transceiver, navigation
    receiver, and GPS navigation capability into a
    single unit
  • WAAS upgrade ?

30
GNS430 - Chapter Page Selection
31
Autopilot STEC 55x
  • Rate autopilot
  • Two axis control system
  • Roll axis controlled by aileron trim motor and
    spring cartridge
  • Pitch axis controlled by pitch trim motor
  • Powered by Essential Bus

32
STEC 55x - System
33
Approach Procedures
  • ILS Approach
  • Ensure a reliable Localizer signal exists
  • Select the desired course using the CDI
  • Select APR mode on the autopilot mode controller
  • Verify illumination of NAV and APR annunciators
  • Glide-slope Coupling
  • APR and ALT modes must be selected
  • Aircraft must be within ½ scale deflection of
    localizer
  • Aircraft must be 60 or more below the
    glide-slope
  • Condition must exist for 10 seconds for GS mode
    to arm
  • Arm indicated by illumination of ALT and GS
    annunciators
  • ALT annunciator extinguishes at glide-slope
    intercept
  • GS mode may be manually engaged by pressing ALT
    once when in ALT mode and a glideslope signal
    exists
  • On or below glide-slope in later revisions of
    software.

34
Thought Provoking Questions
  • Is an all-glass panel safer than a conventional
    panel ?
  • As a community, are we prepared for such rapid
    innovation ?
  • How much training is required to be competent
    and safe ?
  • What happens in the event the panels go dark?
  • How should one manage database currency ?
