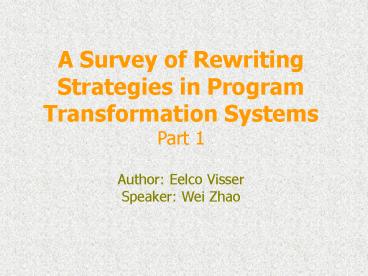

A Survey of Rewriting Strategies in Program
Transformation Systems Part 1 Author Eelco
Visser Speaker Wei Zhao
2
Outline

• Section 1 introduction
• Section 2 A Taxonomy of program transformation
• Section 3 Program Representation
• Section 4 Implementation of Program
  Transformation
• Section 5 Program Transformation Paradigms
• Section 6 conclusions

3
Section 1 Introduction

• Definition of program transformation (PT)

4
Definitions

• Syntax allow us to transform a program
• Semantics (intentional and extensional) to reason
  the validity of transformation
• PT is the act of changing one program into
  another
• Source target languages

5
Section 1 Introduction

• Definition of program transformation (PT)
• The aim of PT programmer productivity,
  maintainability, re-usability
• The aim of PT research
• The exist PT systems are specialized
• Programming languages have structural/semantic
  similarities
• To capture generic, language independent schemas
  of transformation to develop efficient
  implementation that scales up to large programs
• The aim of the paper understand the
  similarities/differences among PT systems
  concentrate on the transformation strategies

6
Section 2 Taxonomy of PT

• Two main scenarios
• Translation source and target languages are
  different
• Rephrasing source and target languages are the
  same
• Sub-scenarios based on the level of abstraction
  of a program and to what extent they preserve the
  semantics of a program

7
2.1 Translation scenarios

• Sub-scenarios are based on the level of
  abstraction of a program
• Aims at preserving the extensional semantics, but
  usually not possible
• Sub-scenarios Synthesis, migration, reverse
  engineering, analysis

8
Synthesis

• Translate from the high level to lower level
  abstraction
• Design is traded for increased efficiency
• Examples
• Refinement deriving implementation from high
  level specification
• Compilation
• Parser/pretty-printer generation from
  context-free grammar

9
Migration

• Translate a program into another language at the
  same level of abstraction
• Examples transformations between dialects (from
  Fortran 77 to Fortran 90, from Pascal to C)

10
Reverse Engineering

• To extract the program from a lower-level to a
  high-level program or some higher-level aspects
• The dual of synthesis
• Examples
• Decompilation of an object program into a
  high-level program
• Architecture (design) extraction
• Documentation generation
• Software visualization (some aspects are depicted
  in an abstract way)

11
Analysis

• Reduce a program to one aspect such as its
  control- or data- flow.
• A transformation to a sub-language to an aspect
  language

12
2.2 Rephrasing scenarios

• Rephrasing says the same thing in different words
• Improving some aspect of the program
• The semantics of the program are changed
• Sub-scenarios normalization, optimization,
  refactoring, and renovation

13
Normalization

• Reduces a program to a program in a sub-language
  decreasing its syntactic complexity
• Examples
• Desugaring syntactic sugar of a language is
  transformed into more fundamental constructs
• Desugar Haskell to its kernel language
• EBNF to BNF
• Simplification a program is reduced to a normal
  (standard form)
• Canonical form of intermediate representation
• Algebraic simplification of expressions

14
Optimization

• Improves the run-time/space performance
• Examples
• Fusion
• Inlining
• Constant propagation
• Constant folding
• Common-subexpression elimination
• Dead code elimination

15
refactoring

• Refactoring improves the design of a program by
  restructuring, preserving functionality
• Obfuscation makes program harder to understand by
  renaming variables, inserting dead code
  preventing reverse engineering

16
renovation

• Renovation repairs an error or bring the program
  up to date with changed requirements
• The extensional semantics is changed
• Example Y2K

17
Section3 program representation

• Some PT systems directly work on text
• Most systems use structured representation
• so parser and unparser are needed for conversion
  between text and structure
• In some programming framework (IP), programs are
  stored, edited and processed as source graphs.
• What representation form should be used?

18
3.1 parse tree or AST

• Internal representation of a program to be
  transformed
• Parser tree contain syntactic information such as
  layout (white space and comments), parentheses,
  and extra nodes disambiguating grammar
  transformation
• Normally AST is used since this info is
  irrelevant for the transformation
• Layout
• Some applications (renovation, refactoring) need
  restore the layout through the transformation.
• parse tree is used
• Where to insert the comments in a generic manner?
  (origin tracking)
• Types
• Optimization and compilation might need type info
  to be stored in an extension of a tree format

19
3.2 concrete or abstract syntax

• The representation of program fragments in the
  specification of transformation rules
• ASTs are usually represented using data
  structure records, objects, algebraic data
  types, terms
• When the ASTs (in a data structure facility) are
  easy to be composed and decomposed
• Such as in compiler, small fragments are
  manipulated each time
• AST is used directly in the specification
• So, the AST can be used as an intermediate
  language such as multiple language can be
  expressed in.
• Otherwise (when the conceptual distance between
  concrete program and the data structure access
  operations used in AST is too large)
• Transformation languages support concrete object
  syntax for the programmer to define the
  transformations while internally use the AST.

20
3.3 Trees or Graphs

• Program structures can be represented by trees,
  DAGs, or full fledged graphs with cycles
• Copy
• Tree requires a complete copy
• For DAG, only a pointer to the tree gets copied
• sub-tree shared by multiple context
• reduced memory usage
• testing of equality is cheap
• But the context need to be rebuilt when a tree is
  transformed because two occurrences of a shared
  tree that are syntactically the same can have a
  different meaning depending on their context
• Annotation
• DAG annotations associated with each occurrences
  of the tree, Not desirable
• Full fledged graph for back links (loops, link to
  declarations)
• More problematic sub-graph can have links to the
  entire graph, it may be required to reconstruct
  the entire graph after a transformation if it is
  necessary to keep the original graph.

21
3.4 Variable binding

• Transformation system has no special knowledge
  for the variables in the syntax tree
• Transformations need to be aware of variables by
  means of extra conditions to avoid the problem of
  free variable capture and lifting the variable
  occurrences out of binding
• Higher-order abstract syntax (HOAS) transparent
  handling of variable binding by encoding variable
  binding as lambda abstractions
• FreshML has a weaker mechanism by transparently
  refreshes variable names
• All approaches that rename variables are in
  conflict with requirements of preserving the
  original name (refactoring, renovation)
• Associating declaration info (symbol table,
  annotating the usage occurrences of a symbol with
  the declaration)

22
3.5 exchange format

• Program representation should be exchangeable
  among the transformation components
• Examples
• XML supports exchange of tree shaped data
• Annotated Term Format supports exchange of DAGs
  maintaining maximal sharing

23
Section4 implementation of PT

• A complex program transformation is achieved
  through a number of consecutive modifications of
  a program
• A Rule defines a basic step in the
  transformation of a program
• A Strategy is a plan for achieving a complex
  transformation using a set of rules
• Strategy for the reproducible and automated
  transformations versus the interactive
  transformation
• Example
• let x3 in xy ?let x3 in 3y ? 3y (inline,
  dead variable)
• Let x3 in xy?
• let x3 in let newfun(z)zy in newfun(x)?
• let newfun(z)zy in let x3 in newfun(x)
• (extract function, hoist)

24
4.1. Transformation rules

• Rules preserves the extensional semantics
• Some other aspects change (might be intentional
  semantics) time/space resource usage
• A rule
• Syntactic recognition
• Some semantic condition verification
• The replacement contains
• A term pattern
• A function constructing a new tree or graph
• A semantic action with arbitrary side-effects

25
4.2 transformation strategies

• A set of transformation rules for a programming
  language induces a rewrite relation on programs
• If the relation is confluent and terminating,
  there is a unique normal form for every program
  the matter is applying the rules most efficiently
  to reach the normal form
• In PT, it is usually not the case
• A set of transformation rules can give rise to
  infinite branches (by inlining recursive
  function)
• Inverses to undone a transformation(by
  distribution or commutatively rules)
• Non-confluence in which a program can be
  transformed into different programs

26
4.2 cont

• For a specific program it is always possible to
  find the shortest path to the optimal solution
  for a specific transformation task
• A strategy is a algorithm for choosing a path in
  the rewrite relation
• Given one set of rules, there can be many
  strategies, each achieving a different goal
• A strategy can be provided by the engine or the
  user
• Fixed application order the engine applies rules
  exhaustively according to a built-in strategy
• Automatic dependency analysis based on the
  analysis of rules
• Goal driven to apply rules to achieve a user
  defined goal
• Strategy menu
• Completely programmable in a strategy language
• The strategy needs to be expressed and
  implemented formally

27
4.2 cont strategies languages ingredients

• Sequential composition
• Consecutively, conditionally, iteratively or
  recursively compose the rules
• Non-deterministic programming
• Speculatively explore paths until an acceptable
  solution is found
• Explore all paths in parallel and choose the best
  (cost function to compare the solution)
• Goal based exploration discard the path
  inconsistent with a set of constraints

28
4.2 cont strategies languages ingredients

• Structural traversal
• A rewrite relation includes application of rules
  in any context
• The strategy should determine the location where
  the rule is applied
• find the location in the program representation
  structure, apply the rule, rebuild the context
• It is inefficient to directly use the tree paths
  (context)
• Some mechanism is needed to traverse syntax trees
  and to apply transformation rules at subtree
• Language specific/generic transformation
  mechanism
• Top-down / bottom-up traversal
• Primitive and composite traversal

29
4.2 cont strategies languages ingredients

• Information carrying strategies strategies may
  carry information that can be used in making
  decisions about paths to take an in passing
  context-sensitive information to rules
• An important aspect the scope in which the
  information is valid

30
4.2 cont strategies languages ingredients

• Separation of rules and strategies
• In the implementation, the rule can be hardwired
  in the definition of the strategies
• Strategies are parameterized with a set of rules
• Clearer specification that allow reasoning about
  smaller entities (rules, strategies) separately
• Separation definition enables the reuse of rules,
  strategies, and the generic implementation of
  aspects of transformation system for a class of
  languages
• Intertwining may sometimes be required for
  efficiency reason, but should be done by a
  compiler rather than the specifier
• Abstraction
• The strategy language should have proper
  abstraction over the rules and strategy, I.e. it
  should be possible to name and parameterize the
  rules and strategies

31
Section 5 PT paradigms

• .
