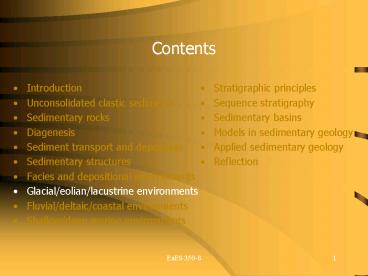

Contents

1
Contents

• Introduction
• Unconsolidated clastic sediments
• Sedimentary rocks
• Diagenesis
• Sediment transport and deposition
• Sedimentary structures
• Facies and depositional environments
• Glacial/eolian/lacustrine environments
• Fluvial/deltaic/coastal environments
• Shallow/deep marine environments

• Stratigraphic principles
• Sequence stratigraphy
• Sedimentary basins
• Models in sedimentary geology
• Applied sedimentary geology
• Reflection

2
(No Transcript)
3
(No Transcript)
4
(No Transcript)
5
Glacial/eolian/lacustrine environments

• Glacial environments
• Glaciers and ice sheets form where precipitation
  rates, in the form of snow (accumulation), exceed
  melting rates (ablation)
• Ice flows as a result of gravity and essentially
  acts like a high-viscosity fluid exhibiting
  laminar flow
• Temperate (warm-based) vs. polar (cold-based)
  glaciers reflect the temperature regime within
  the ice
• Ice shelves can form when a glacier or ice sheet
  reaches the coast and extends offshore, and
  ultimately breaks up into icebergs

6
(No Transcript)
7
Glacial/eolian/lacustrine environments

• Glacial environments
• Abrasion leads to the formation of rock flour
  (mineralogically diverse silt- and clay-sized
  sediment grains) plucking results in coarser (up
  to boulder-sized) material
• Warm-based ice tends to be more erosive
  (abrasive) than cold-based ice
• Till/tillite (also known as diamict/diamictite)
  is poorly sorted, angular, and immature
• Lodgement till forms by active deposition under
  the ice (relatively compact and usually
  fractured)
• Meltout till forms passively during melting

8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
Glacial/eolian/lacustrine environments

• Glacial environments
• Abrasion leads to the formation of rock flour
  (mineralogically diverse silt- and clay-sized
  sediment grains) plucking results in coarser (up
  to boulder-sized) material
• Warm-based ice tends to be more erosive
  (abrasive) than cold-based ice
• Till/tillite (also known as diamict/diamictite)
  is poorly sorted, angular, and immature
• Lodgement till forms by active deposition under
  the ice (relatively compact and usually
  fractured)
• Meltout till forms passively during melting

14
(No Transcript)
15
(No Transcript)
16
(No Transcript)
17
(No Transcript)
18
Glacial/eolian/lacustrine environments

• Glacial environments
• Glaciofluvial or fluvioglacial deposits are
  sediments formed in association with glacial
  meltwater (e.g., glacial outwash)
• More distal glaciolacustrine and glaciomarine
  deposits are typically dominated by fine-grained
  sediment (rock flour), along with ice-rafted
  debris and dropstones
• The preservation potential of glacial deposits is
  usually limited, with the exception of tills and
  glaciomarine deposits associated with big ice
  sheets

19
(No Transcript)
20
Glacial/eolian/lacustrine environments

• Eolian environments
• Eolian deposits dominate deserts (mostly at low
  latitudes, but sometimes arctic), but are also
  important along shorelines (coastal dunes) and in
  association with ice sheets (loess)
• Air is a low-density and low-viscosity fluid
  therefore high flow velocities are required to
  enable sediment transport
• Eolian deposits are mostly texturally and
  mineralogically mature, due to the selective
  transport of specific grain sizes and the large
  impact of grain-to-grain collision

21
(No Transcript)
22
(No Transcript)
23
Glacial/eolian/lacustrine environments

• Eolian environments
• Sand dunes are the most common eolian landforms
  their geometry and resulting sedimentary
  structures depend primarily on sediment supply
  and prevailing wind direction
• Large (gt5 m) sets of cross strata are very
  commonly eolian in origin
• Eolian sand sheets develop when sediment supply
  is limited and are characterized by planar
  stratification vegetation can contribute to dune
  formation under such circumstances
• Loess is a homogeneous, very well sorted,
  silt-dominated sediment that is deposited from
  suspension it is commonly associated with ice
  sheets that produce large quantities of source
  material (rock flour)

24
(No Transcript)
25
(No Transcript)
26
(No Transcript)
27
Glacial/eolian/lacustrine environments

• Eolian environments
• Sand dunes are the most common eolian landforms
  their geometry and resulting sedimentary
  structures depend primarily on sediment supply
  and prevailing wind direction
• Large (gt5 m) sets of cross strata are very
  commonly eolian in origin
• Eolian sand sheets develop when sediment supply
  is limited and are characterized by planar
  stratification vegetation can contribute to dune
  formation under such circumstances
• Loess is a homogeneous, very well sorted,
  silt-dominated sediment that is deposited from
  suspension it is commonly associated with ice
  sheets that produce large quantities of source
  material (rock flour)

28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
Glacial/eolian/lacustrine environments

• Lacustrine environments
• Playa (saline) lakes are hydrologically closed,
  ephemeral water bodies that form in arid
  environments and are characterized by
  mud-evaporite couplets
• Freshwater lakes are permanent (commonly
  hydrologically open) water bodies
• Waves and relatively weak wind-driven currents
  constitute the main mechanisms of sediment
  transport
• Density stratification develops under seasonal
  climate conditions and when currents are limited

32
(No Transcript)
33
Glacial/eolian/lacustrine environments

• Lacustrine environments
• Playa (saline) lakes are hydrologically closed,
  ephemeral water bodies that form in arid
  environments and are characterized by
  mud-evaporite couplets
• Freshwater lakes are permanent (commonly
  hydrologically open) water bodies
• Waves and relatively weak wind-driven currents
  constitute the main mechanisms of sediment
  transport
• Density stratification develops under seasonal
  climate conditions and when currents are limited

34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
Glacial/eolian/lacustrine environments

• Lacustrine environments
• Coarse sediments mainly occur on lake margins
  (lacustrine deltas, beaches)
• In the central parts of lakes, deposition occurs
  from suspension and by means of turbidity
  currents
• Stratified lakes promote the accumulation of
  organic matter and the formation of varves
  organics are especially important in small lakes
• Carbonates of both chemical and biogenic origin
  can contribute significantly to lake sediments

38
(No Transcript)
39
(No Transcript)
40
(No Transcript)
41
Glacial/eolian/lacustrine environments

• Lacustrine environments
• The final stage of filling of lakes commonly
  involves an important organic component
• Hydrosere vertical succession of organic
  deposits associated with the transition from a
  limnic, through a telmatic, to a terrestrial
  environment
• Gyttja --gt fen peat --gt wood peat --gt moss peat

42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
