CSS 372 Oct 2nd - Lecture 2

1

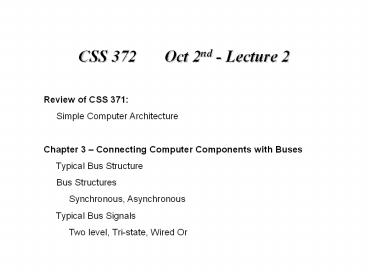

CSS 372 Oct 2nd - Lecture 2
Review of CSS 371 Simple Computer
Architecture Chapter 3 Connecting
Computer Components with Buses Typical Bus
Structure Bus Structures
Synchronous, Asynchronous Typical Bus
Signals Two level, Tri-state, Wired Or

2
Simple ComputerData Paths
3
Simple Memory Mapped I/O
Simple Memory Layout x0000 x00FF Trap
vectors (Supports Software Interrupts)
x0020 x0400 GETC (Read Char from
Keyboard) x0021 x0430 OUT
(Write Character to Console) x0022
x0450 PUTS (Write string to Console)
x0023 x04A0 IN (Prompt,
input character from Keyboard, echo character to
Console) x0024 x04E0 PUTSP
(Write packed string to Console)
x0025 xFD70 HALT (Turn off run latch in
MCR) x0100 x01FF Interrupt Vectors
(Supports Hardware Interrupts) x0200 x2FFF
System Programs Data (Operating System)
x3000 xFDFF User Programs Area xFE00
xFFFF I/O Programming Registers (Mapped I/O
Registers) xFE00 KBSR 15 Ready, 14
Intr enable (Keyboard Status Register)
xFE02 KBDR 70ascii data
(Keyboard Data Register) xFE04
DSR 15Done, 14Intr enable
(Display Status Register) xFE06 DDR
70ascii data
(Display Data Register xFFFE MCR
15Run latch
(Machine Control Register)
4
Simple Interrupts

• Programmer Action
• Enable Interrupts by setting intr
  enable bit in Device Status Reg
• Enabling Mechanism for device
• When device wants service, and
• its enable bit is set (The I/O device
  has the right to request service), and
• its priority is higher than the
  priority of the presently running program, and

• execution of an instruction is
  complete, then
• The processor initiates the interrupt
• Process to service the interrupt
• The Processor saves the state of the
  program (has to be able to return)
• The Processor goes into Privileged Mode (PSR
  bit 15 cleared)
• Priority level is set (established by the
  interrupting device)
• The (USP), (R6) ? USP.saved register
  (UserStackPointer.saved)
• The (SSP.saved) ? R6 (SupervisorStackPointer)
• The (PC) and the (PSR) are PUSHED onto the
  Supervisor Stack
• The contents of the other registers are not
  saved. Why?
• The CCs are cleared

5
Allocating Space for Variables

• Global data section
• All global variables stored here(actually all
  static variables)
• R4 points to beginning
• Run-time stack
• Used for local variables
• R6 points to top of stack
• R5 points to top frame on stack
• New frame for each block(goes away when block
  exited)

0x0000
instructions
PC
R4
global data
R6
run-time stack
R5
0xFFFF
6
Simple Register Convention
R0 Trap routine pass values R1 R3 General
purpose R4 Global variable stack pointer R5
Frame pointer (or Activation Record pointer) R6
Stack pointer R7 Return PC value
7
Simple Activation Record Format
X0000
Function stacked stuff ..
.. Local Variables Callers Frame Pointer
(R5) Callers Return PC (R7) Function Return
Value Function Pass Value n
.. Function Pass Value 1
R6

R5
XFFFF
8
Simple Function Call Implementation

1. Caller pushes arguments (last to first).
2. Caller invokes subroutine (JSR).
3. Callee allocates space for return value, pushes
   R7 and R5.
4. Callee allocates space for local variables.
5. Callee executes function code.
6. Callee stores result into return value slot.
7. Callee pops local vars, pops R5, pops R7.
8. Callee returns (RET or JMP R7).
9. Caller loads return value and pops arguments.
10. Caller resumes computation

9
Chapter 3 Connecting Computer Components with
Buses
Typical Bus Structure Hierarchical Bus
Structures Synchronous, Asynchronous
Typical Bus Signals Two level,
Tri-state, Wired Or PCI Bus Example
10
What is a Bus?

• A communication pathway connecting two or more
  devices (Computers, Components, I/O, )
• Usually broadcast
• Often grouped
• A number of channels in one bus
• e.g. 32 bit data bus is 32 separate single bit
  channels
• Power lines may not be shown

11
What do Buses look like?

• Parallel lines on circuit boards
• Ribbon cables
• Strip connectors on mother boards
• Sets of wires

12
Communication with Memory
13
Communication with I/O
14
CPU Communication
15
Data Bus (Subset of Bus)

• Carries data
• Remember that there is no difference between
  data and instruction at this level
• Width is a key determinant of performance
• 8, 16, 32, 64 bit

16
Address Bus (Subset of Bus)

• Identify the source or destination of data
• e.g. CPU needs to read an instruction (data) from
  a given location in memory
• Bus width determines maximum memory capacity of
  system
• e.g. 8080 has 16 bit address bus giving 64k
  address space

17
Control Bus (Subset of Bus)

• Control and timing information
• Memory read/write signal(s)
• Interrupt request/acknowledge signal(s)
• Clock signal(s)
• Etc.

18
Power/Ground (Subset of bus ?)

• Provides Power and Reference Levels for Devices
• May be several voltage levels
• Ground may be dispersed between signals

19
Bus Interconnection Scheme
20
Physical Realization of Bus Architecture
21
Types of Buses

• Synchronous
• Asynchronous (Hand Shaking)
• Serial (Twisted pair, Coaxial Cable, ..)
• Parallel (Ribbon Cable,

22
Types of Buses

• Dedicated
• Separate data address lines
• Multiplexed
• Shared lines
• Address valid or data valid control line
• Advantage - fewer lines
• Disadvantages
• More complex control
• Ultimate performance

23
Physical Considerations for Buses

• Media (voltage, light)
• Signal levels
• Noise Absorption
• Noise Generation
• Length
• Delay (Bandwidth)
• Power
• Terminations - Transmission
  Characteristics
