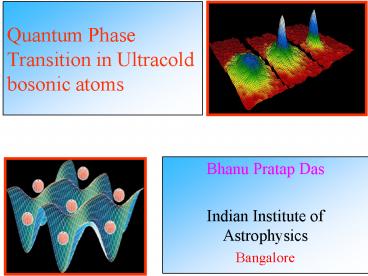

Quantum Phase Transition in Ultracold bosonic atoms

1
Quantum Phase Transition in Ultracold bosonic
atoms

• Bhanu Pratap Das
• Indian Institute of Astrophysics
• Bangalore

2
Talk Outline

• Brief remarks on quantum phase transitions in a
  single species ultracold bosonic atoms.
• Quantum phase transitions in a mixture of two
  species ultracold bosonic atoms.
• Special reference to new quantum phases and
  transitions between them.

3
SF-MI transition for bosons in a periodic
potential
Bose-Hubbard Model
onsite interaction
hopping
Fisher et al, PRB(1989)
U/t ltlt 1 Superfluid U/t gtgt 1 Mott
insulator
Jaksch et al, PRL(1998) (for optical lattice)
Integer density gt SF-MI transition
4
SF-MI Transition In Optical Lattice
Greiner et al, Nature(2002) 3D Stoeferle et
al, PRL (2004) 1D
5
SF-MI transition in One component Boson with
Filling factor 1
Superfluid
Mott Insulator
6
SF-MI transition in One component Boson with
Filling factor 1
7
SF-MI transition in One component Boson with
Filling factor 1
8
SF-MI transition in One component Boson with
Filling factor 1
9
SF-MI transition in two component Boson with
Filling factor 1 (?a1/2, ?b1/2)
10
SF-MI transition in two component Boson with
Filling factor 1 (?a1/2, ?b1/2)
11
SF-MI transition in two component Boson with
Filling factor 1 (?a1/2, ?b1/2)
12
Phase separation in two component Boson with
filling factor 1 (?a1/2, ?b1/2)
Phase separated SF
13
Phase separation in two component Boson with
filling factor 1 (?a1/2, ?b1/2)
Phase separated SF
14
Phase separation in two component Boson with
filling factor 1 (?a1/2, ?b1/2)
Phase separated MI
15
Two Species Bose-Hubbard Model
Exploration of New Quantum Phase Transitions
Present work ta tb 1 , Ua Ub
U Physics of the system is determined by ? Uab
/ U and the densities of the two species ?a
Na/L and ?b Nb/L
16
Theoretical Approach

• We calculate the Gap
• And the onsite density
• For a and b type bosons, EL(Na,Nb) is
  the ground state energy and
• ?0LNaNbgt is the ground state wave
  function for a system of length L with Na (Nb)
  number of a(b) type bosons obtained by DMRG
  method which involves the iterative
  diagonalization of a wave function and the energy
  for a particular state of a many-body system. The
  size of the space is determined by an appropriate
  number of eigen values and eigen vectors of the
  density matrix.
• We study the system for ? 0.95 and ? 1.05 .
• We have considered three different cases of
  densities
• i.e ?a ?b ½ , ?a 1, ?b ½ and ?a
  ?b 1

GL EL(Na1,Nb) - EL(Na,Nb) EL(Na,Nb) -
EL(Na-1,Nb)
ltniagt lt?0LNaNb nia ?0LNaNbgt
17
Result

• For ? 0.95 and for all densities there is a
  transition from 2SF-MI at some critical value Uc
  .
• For ? 1.05 and ?a ?b ½ there is a
  transition from 2SF to a new phase known as PS-SF
  at some critical value of U and there is a
  further transition to another new phase known as
  PS-MI for some higher value of U.
• For ? 1.05 and ?a 1 and ?b ½ there is a
  transition from 2SF to PS-SF. The PS-MI phase
  does not appear in this case.
• Finally for ? 1.05 and ?a ?b 1 there is a
  transition from 2SF to PS-MI without an
  intermediate PS-SF phase. This result is very
  intriguing.
• Tapan Mishra, Ramesh. V. Pai, B. P. Das,
  cond-mat/0610121

18
Results....
This plots shows the SF-MI transition at the
critical point Uc3.4 for ? 0.95
Plots of ltniagt and ltnibgt versus L for U 1 and
U 4 . These plots are for ? 1.05 and L50.
19
OPS ?i ltnaigt - ltnbigt
The upper plot is between LGL and U which showes
the SF-MI transition and the lower one between
OPS and U.
20
Conclusion

• For the values of the interaction strengths and
  the density considered here we obtain phases like
  2SF, MI, PS-SF and PS-MI
• The SF-MI transition is similar to the single
  species Bose-Hubbard model with the same total
  density
• When Uab gt U we observe phase separation
• For ?a ?b ½ we observe PS-SF sandwiched
  between 2SF and PS-MI
• For ?a 1 and ?b ½ there is a transition from
  2SF to PS-SF
• For ?a ?b 1 no PS-SF was found and the
  transition is directly from 2SF to MI-PS.

21

• Co-Workers
• Tapan Mishra, Indian Institute of Astrophysics,
  Bangalore
• Ramesh Pai, Dept of Physics, University of Goa,
• Goa

22
Bragg reflections of condensate at reciprocal
lattice vectors showing the momentum distribution
function of the condensate
M. Greiner, et al. Nature 415, 39 (2002).
23
Experimental verification of SF-MI transition
M. Greiner, et al. Nature 415, 39 (2002).
