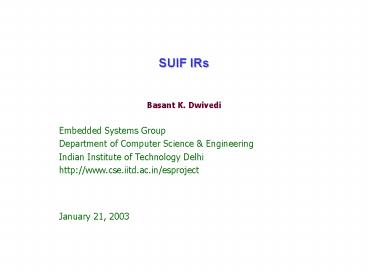

Title: SUIF IRs


1
SUIF IRs
  • Basant K. Dwivedi

2
Outline
  • Introduction
  • User requirements
  • SUIF1
  • SUIF2
  • MachSUIF

3
Introduction
4
User Requirements
  • Efficient traversal of the IR
  • Efficient communication among compiler passes
  • code transformations
  • annotations
  • Availability of libraries for common operations
    such as dataflow analysis
  • Flexibility to add
  • new IR nodes
  • new passes

5
SUIF1
  • Hierarchical data structure
  • If-then-else node
  • For-loop node
  • Do-while node
  • Block node
  • Instruction nodes which are expression trees
  • Opcodes of instructions resemble RISC
    instructions with exceptions
  • mbr multiway branch
  • array computes the address of an element in an
    array

6
SUIF1 (cont.)
  • Code transformations such as
  • Dismantling
  • Code motion of loop-invariant
  • Hoisting of if node
  • Control structure simplification
  • removal of not taken branches
  • Classical optimizations
  • common sub-expression elimination
  • constant propagation
  • dead-code elimination
  • A parallelizing compiler is also available.

7
SUIF2 Objectives
  • Compose compiler with existing passes
  • Front ends passes
  • Easy expression of compiler compositions
    (dynamically)
  • Develop new passes
  • User concentrates on algorithmic issues
  • Infrastructure takes care of common
    functionalities
  • Standard intermediate representation and
    associate tools
  • Common utilities and data structures
  • Develop new IR nodes
  • Easy definition of IR nodes
  • Old code works with new IR without recompilation

Source SUIF2 tutorial
8
SUIF2 (cont.)
  • SUIF1 system
  • Each pass is an independent program that
    reads/writes SUIF in a file
  • Advantages modular, visibility of intermediate
    results
  • Disadvantages expensive disk access
  • SUIF2 system
  • write code once, can run on program on disk or in
    memory
  • simple development, efficient deployment
  • How?
  • A pass a common driver module
  • A compound pass
  • a common driver series of modules loaded
    dynamically

Source SUIF2 tutorial
9
Modular Compiler System
COMPILER
A series of stand-alone programs
A driver that imports applies modules to
program in memory
Suif-file1
Suif-file1
drivermodule1
Suif-file2
Source SUIF2 tutorial
Suifdriver imports/executes module1 module2
module3
drivermodule2
Suif-file3
drivermodule3
Suif-file4
Suif-file4
10
SUIF2 IR Design
  • Root Object
  • Uniform functionality
  • Fields accessed with get_ltfieldgt, and set_ltfieldgt
  • printing
  • I/O to disk
  • cloning
  • iterators
  • walkers
  • Memory management aid
  • object creation via factories
  • owner edges embed a tree into program
    representation

Source SUIF2 tutorial
11
SUIF1 vs SUIF2
  • SUIF1 supports C, fortran
  • SUIF2 supports C, fortran, JAVA
  • There are no instructions in SUIF2. It has
  • Statements if statement, do-while statement
    etc.
  • Expressions unary expressions, binary
    expressions etc.
  • No definition of semantics of operations such as
    add, sub in SUIF2

SUIF2 file
SUIF1 file
Suif2toSuif1 Converter
12
MachSUIF
  • Provides libraries to write back-end for a new
    target machine
  • Interface for target specific code generation
  • Register allocation
  • Scheduling
  • Uses SUIF2 hoof system to define new IR nodes
  • Instruction list
  • Instructions
  • Operands
  • Control flow graph nodes
  • Static single assignment form

13
Overall flow in MachSUIF
Target specialization passes are parameterized
14
SuifVm
  • This is the target of SUIF2 lowering passes
  • IR nodes are instructions with RISC like opcodes
  • mov, load, store etc.
  • unlike SUIF1 doesnt have array instruction

Target machine
SUIF2 lowering passes
SuifVm
15
Machine Context
  • An interface to access target specific
    information employing
  • Set of global functions to access target details
    e.g
  • is_move is current instruction a move
  • reg_caller_saves set of registers to be saved
    by function caller
  • MachineContext class to bind target details with
    the global functions dynamically
  • Stages
  • read target_lib annotation
  • find the target context
  • register and dynamically load target lib

16
Target Machine Instructions
  • Opcode specification
  • Opcode enumeration
  • Filling of functions such as
  • opcode_name
  • opcode_move
  • Query for instruction type
  • only required for some specific instructions such
    as
  • is_move
  • is_call
  • reads_memory
  • writes_memory

17
Translation to the Target Machine
  • Functions to translate every suifvm instruction
    should be filled.
  • Some suifvm instructions may not occur because of
    preprocessing
  • One-to-one mapping for many instructions such as
  • add, sub, mul
  • Some instructions require more careful
    translation e.g.
  • call and return
  • type conversion
  • structural load and store

18
Register file Information
  • Specifications is required for
  • Number of registers
  • Register classes
  • Register widths
  • Set of allocable registers
  • Set of registers in caller save convention
  • Set of registers in callee save convention
  • Sequence of instructions required for spill

19
Register Allocation
  • Uses interface functions to access register file
    information
  • Pre-scheduling graph coloring register allocator
    called iterated register coalescing
  • Tries to reduce
  • copy instructions
  • spills

Ref George and Appel, TOLPLAS 1996
Register allocation
Code finalize pass
Code-gen
20
Scheduling Resource model and Collision matrices
Resources a, b, c Vectors a i1 b
i2 ac, c i3
Ref Bala and Rubin
21
Generated Automata
F1
b
x 0 0 0 x 0
F0
a
0 0 0 0 0 0
a
F2
F0 and F4 are Cycle advancing states
b
0 0 x 0 0 0
a
c
c
F3
x 0 0 0 x x
F4
0 0 0 0 x 0
b
F5
b
a
0 0 x 0 x 0
22
Libraries in MachSUIF
  • Control flow graph library
  • Control flow analysis library
  • Supports natural loop analysis
  • Data flow analyzer library used for
  • Liveness information
  • Definition-usage info
  • Static single assignment (SSA) library for
  • ssa based optimizations

23
References
  • SUIF2 documentation
  • MACHSUIF documentation
  • Instruction scheduling library for SUIF by Gang
    Chen and Cliff Young, Harvard University
  • Efficient instruction scheduling using finite
    state automata by Vasanth Bala and Norman Rubin
