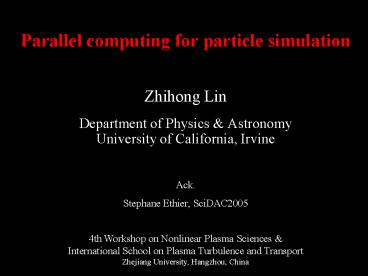

Parallel computing for particle simulation

1
Parallel computing for particle simulation

• Zhihong Lin
• Department of Physics Astronomy University of
  California, Irvine
• Ack.
• Stephane Ethier, SciDAC2005

4th Workshop on Nonlinear Plasma Sciences
International School on Plasma Turbulence and
Transport Zhejiang University, Hangzhou, China
2
Outline

• Parallel computer
• Shared vs. distributed parallelism
• PIC domain decomposition
• GTC architecture performance

3
Why Parallel Computing?

• Want to speed up a calculation.
• Solution
• Split the work between several processors.
• How?
• It depends on the type of parallel computer
• Shared memory (usually thread-based)
• Distributed memory (process-based)
• Massively parallel computer tightly-coupled
  nodes
• Why bother?
• Design/choice of physics model, numerical method,
  and algorithm

4
Main Computing PlatformNERSCs IBM SP Seaborg

• 9TF
• 416 x 16-processor SMP nodes (with 64G, 32G, or
  16G memory)
• 380 compute nodes (6,080 processors)
• 375 MHz POWER 3 processors with 1.5
  GFlops/sec/proc peak

5
Earth Simulator

• 40 TF
• 5,120 vector processors
• 8 Gflops/sec per proc.

6
CRAY X1E at ORNL

• 18TF
• 1024 Multi-streaming vector processors (MSPs)
• 18 Gflops/sec peak performance per MSP

7
Moores Law Comes with Issues of Power
Consumption Heat Dissipation
10
11
4G
2G
10
10
1G
512M
Memory
256M
10
9
128M
Itanium
Microprocessor
64M
10
8
Pentium 4
16M
Pentium III
10
4M
7
Pentium II
1M
10
6
Pentium
256K
Transistors Per Die
i486
64K
10
5
i386
16K
80286
4K
10
4
8080
1K
8086
10
3
4004
10
2
10
1
10
0

60

65

70

75

80

85

90

95

00

05

10
Source Intel
8
Microarchitecture Low Level Parallelism

• Larger cache
• Multi-threaded
• Multi-core
• System-on-a-chip

Adapted from Johan De Gelas, Quest for More
Processing Power, AnandTech, Feb. 8, 2005.
9
IBM Blue Gene Systems

• LLNL BG/L
• 360 TF
• 64 racks
• 65,536 nodes
• 131,072 processors
• Node
• Two 2.8 Gflops processors
• System-on-a-Chip design
• 700 MHz
• Two fused multiply-adds per cycle
• Up to 512 Mbytes of memory
• 27 Watts

10
Shared memory parallelism

• Program runs inside a single process
• Several execution threads are created within
  that process and work is split between them.
• The threads run on different processors.
• All threads have access to the shared data
  through shared memory access.
• Must be careful not the have threads overwrite
  each others data.

11
Shared memory programming

• Easy to do loop-level parallelism.
• Compiler-based automatic parallelization
• Easy but not always efficient
• Better to do it yourself with OpenMP
• Coarse-grain parallelism can be difficult

12
Distributed memory parallelism

• Process-based programming.
• Each process has its own memory space that cannot
  be accessed by the other processes.
• The work is split between several processes.
• For efficiency, each processor runs a single
  process.
• Communication between the processes must be
  explicit, e.g. Message Passing

13
Most widely used method on distributed memory
machines

• Run the same program on all processors.
• Each processor works on a subset of the problem.
• Exchange data when needed
• Can be exchange through the network interconnect
• Or through the shared memory on SMP machines
• Easy to do coarse grain parallelism scalable

14
How to split the work between processors?

• Most widely used method for grid-based
  calculations
• DOMAIN DECOMPOSITION
• Split particles in particle-in-cell (PIC) or
  molecular dynamics codes.
• Split arrays in PDE solvers
• etc
• Keep it LOCAL

15
What is MPI?

• MPI stands for Message Passing Interface.
• It is a message-passing specification, a
  standard, for the vendors to implement.
• In practice, MPI is a set of functions (C) and
  subroutines (Fortran) used for exchanging data
  between processes.
• An MPI library exists on most, if not all,
  parallel computing platforms so it is highly
  portable.

16
How much do I need to know?

• MPI is small
• Many parallel programs can be written with lt10
  basic functions.
• MPI is large (125 functions)
• MPI's extensive functionality requires many
  functions
• Number of functions not necessarily a measure of
  complexity
• MPI is just right
• One can access flexibility when it is required.
• One need not master all parts of MPI to use it.

17
Good MPI web sites

• http//www.llnl.gov/computing/tutorials/mpi/
• http//www.nersc.gov/nusers/help/tutorials/mpi/int
  ro/
• http//www-unix.mcs.anl.gov/mpi/tutorial/gropp/tal
  k.html
• http//www-unix.mcs.anl.gov/mpi/tutorial/
• MPI on Linux clusters
• MPICH (http//www-unix.mcs.anl.gov/mpi/mpich/)
• LAM (http//www.lam-mpi.org/)

18
The Particle-in-cell Method

• Particles sample distribution function
• Interactions via the grid, on which the potential
  is calculated (from deposited charges).

• The PIC Steps
• SCATTER, or deposit, charges on the grid
  (nearest neighbors)
• Solve Poisson equation
• GATHER forces on each particle from potential
• Move particles (PUSH)
• Repeat

19
Charge Deposition in Gyrokinetic4-point average
method
20
Global Field-aligned Mesh for Quasi-2D Structure
of Electrostatic Potential
Y
(Y,a,z) ? a q - z/q

• Saves a factor of about 100 in CPU time

21
Domain Decomposition

• Domain decomposition
• each MPI process holds a toroidal section
• each particle is assigned to a processor
  according to its position
• Initial memory allocation is done locally on each
  processor to maximize efficiency
• Communication between domains is done with MPI

22
Domain Decomposition

• Domain-decomposition for particle-field
  interactions
• Dynamic objects particle points
• Static objects field grids
• DD particle-grid interactions on-node
• Communication across nodes MPI
  On-node shared memory parallelization
  OpenMP
• Computational bottleneck on-node gather-scatter

23
2nd Level of ParallelismLoop-level with OpenMP
24
New MPI-based particle decomposition

• Each domain decomposition can have more than 1
  processor associated with it.
• Each processor holds a fraction of the total
  number of particles in that domain.
• Scales well when using a large number of particles

25
Mixed-Mode Domain Decomposition

• Particle-field DD existence of simple surfaces
  enclosing sub-domains
• Field-aligned mesh distorted when rotates in
  toroidal direction
• Not accurate or efficient for FEM solver
• Re-arrangement of connectivity no simple
  surfaces
• Particle DD toroidal radial
• Field DD 3D
• Solver via PETSc
• Preconditioning HPRE
• Initial guess value from previous time step
• Field repartitioning CPU overhead minimal

26
Optimization Challenges

• Gather-Scatter operation in PIC codes
• The particles are randomly distributed in the
  simulation volume (grid).
• Particle charge deposition on the grid leads to
  indirect addressing in memory.
• Not cache friendly.
• Need to be tuned differently depending on the
  architecture.
• Work-vector method each element in the processor
  register has a private copy of the local grid

particle array scatter operation
grid array
27
GTC Performance
3.7 Teraflops achieved on the Earth Simulator
with 2,048 processors using 6.6 billion
particles!!
28
Performance Results
29
Parallel Computing for China ITER

• Parallel computer hardware excellent
• of entry 5th on top 500 supercomputer list
  20TF available
• US, Japan China compete for 1PT computer (1B)
• Software, wide-area network support poor
• Current simulation projects in China MFE
• single investigator/developer/user
• Small scale parallel simulation 10 processors
  of local cluster
• Simulation initiatives among ITER partners (13B
  stake)
• SciDAC, FSP in US, Integrated Simulation
  Initiatives in Japan, EU, US
• Shift of paradigm needed for China MFE simulation

• Team work plasma physics, computational science,
  applied math,
• Access to national supercomputers vs. local
  cluster
• Physics compete vs. follow (e.g., nonlinear
  effects in RF-heating)
