Title: Silverlight 2 Unplugged

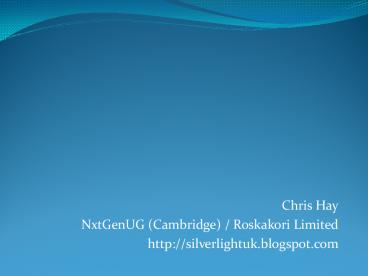

1
Silverlight 2 Unplugged
  • Chris Hay
  • NxtGenUG (Cambridge) / Roskakori Limited
  • http//silverlightuk.blogspot.com

2
About Me
  • Blog http//silverlightuk.blogspot.com
  • Email chrishayuk_at_googlemail.com
  • Coordinator of NxtGenUG Cambridge
  • Silverlight Enthusiast
  • Lead Developer
  • Technologies
  • ASP.NET
  • C
  • VB
  • SQL 2005
  • Silverlight
  • WPF
  • WCF
  • WWF (only a little)
  • F (only a little)

3
Agenda
  • Introduction to Silverlight
  • Getting Started with Silverlight 2.0
  • Creating your first Silverlight application
  • XAP File
  • Layout Manager Controls (7.5 minutes)
  • Controls from 1.0 (7.5 minutes)
  • Interacting with Controls (5 minutes)
  • Button Controls (5 minutes)
  • TextBox Other Controls Brushes Transforms
    Animation (10 minutes) (May ditch due to time
    constraints)
  • Styles Resources(7.5 minutes)
  • Content Model Control Templates (7.5 minutes)
  • Item Controls Binding (15 minutes)
  • ListBox
  • DataGrid
  • Observable Collection
  • INotifiable
  • Master / Detail (User Control)
  • Networking (15 minutes)
  • POX
  • Web Services / WCF
  • Async
  • Sockets
  • Security (Client Access Policy)
  • Storage (10 minutes)
  • Isolated Storage
  • Open File Dialog
  • Html Bridge (1 Minute)
  • The End and the Future (1 Minute)

4
Silverlight
  • Used to be WPF/E
  • Microsofts RIA offering
  • Client application that runs in a browser
  • Silverlight 1.0
  • Silverlight 2

5
Silverlight 1.0
  • Went Live September 2007
  • Xaml
  • Javascript
  • Media
  • Not business applications
  • Very small subset of WPF
  • Supported Platforms
  • Windows (XP, Vista, 2003, 2008)
  • MAC
  • Linux (Moonlight)
  • Mobile (Coming Soon)
  • Browsers
  • IE
  • Firefox
  • Safari
  • Show Video

6
Silverlight 1.0 for Mobile
  • Initially Silverlight 1.0
  • Silverlight 2.0 in the future
  • Developer CTP 2nd Quarter 2008 (soon)
  • Windows Mobile 6
  • Nokia signed up to support Silverlight

7
Silverlight 2
  • In Beta 1 (March 2008)
  • Used to be Silverlight 1.1
  • Xaml
  • Desktop CLR
  • C / VB
  • Larget subset of WPF (and getting closer)
  • Rich Control Set
  • Supported Platforms
  • Windows (XP, Vista, 2003, 2008)
  • MAC
  • Linux (Moonlight)
  • Mobile (Coming Soon)
  • Browsers
  • IE
  • Firefox
  • Safari
  • Show Video

8
Deep Zoom
  • Outside of scope of todays talk
  • Formerly SeaDragon
  • Renders only viewed portion of image
  • Little bandwith
  • High Definition Images
  • Multi-Layered Images
  • Deep Zoom Composer
  • Show Demo Video

9
Supported Languages
  • Silverlight 1.0
  • Javascript
  • Silverlight 2.0
  • C
  • VB.NET
  • Dynamic Lanaguages Supported
  • Microsoft JScript
  • IronPython
  • IronRuby
  • (More to come)

10
Silverlight 2 Downloads
  • Visual Studio 2008
  • Silverlight 2 Beta 1 Runtime
  • Microsoft Silverlight Tools for Beta 1 for VS2008
  • Other useful stuff
  • Silverlight Beta 1 SDK (installed with tools
    install)
  • Expression Studio 2
  • Deep Zoom Composer
  • Silverlight 2 Controls Source Code Unit Tests

11
Silverlight 2 - Resources
  • http//silverlight.net
  • Blogs (including mine)
  • Tutorials
  • Videos
  • Forums
  • Samples
  • Your favourite search engine
  • Good WPF books (Adam Nathan Chris Anderson)
  • Silverlight 1 book (Adam Nathan or Lawrence
    Moroney)

12
Silverlight 2 Getting Started
13
Silverlight 2 Getting Started
14
Silverlight 2
15
Silverlight 2 Web Application
  • Must run within the context of a website
  • Supports some offline capabilities however
  • Independent of Web Server technology
  • Can be hosted on a unix/linux apache web server
  • On creation of project in VS
  • Website
  • Web Application
  • Test file
  • Can run directly from file system
  • Security restrictions however
  • Best run from a website

16
Silverlight 2 Visual Studio
  • Toolbox
  • Readonly WYSISWG Design Area
  • Xaml Design area
  • Builds to ClientBin folder

17
Silverlight 2 .XAP
  • Really a zip file in disguise
  • Change extension to zip and open it up
  • Contains built assemblies
  • Contains any content marked to be included in
    download
  • .XAP file is what is downloaded to client machine

18
Silverlight 2 Html File
  • ActiveX object in a div tag

19
Silverlight 2 App.Xaml
  • Contains Application Resources (later)
  • Entry point for the application
  • This where you set your start page for the
    application
  • Handles following events
  • Application Startup
  • Application Exit
  • Application Unhandled Exception

20
Silverlight 2 Hello World
  • Demo Hello World

21
Layout Manager Controls
  • Canvas
  • StackPanel
  • Grid
  • Border
  • More still to come
  • You can always create your own ?

22
Layout Management - Canvas
  • Silverlight 1.0 Control
  • Absolute Positioning
  • Supports the following attached properties
  • Canvas.Top
  • Canvas.Left
  • Canvas.Zindex
  • Not scalable
  • Not really used in Silverlight 2

23
Layout Management - StackPanel
  • New in Silverlight 2.0
  • Equivalent to its WPF counterpart
  • Stacks controls like a bookshelf
  • Vertical (Default) or Horizontal Orientation
  • OrientationVertical
  • OrientationHorizontal

24
Layout Management - Grid
  • New in Silverlight 2.0
  • Equivalent to its WPF counterpart
  • Flexible Positioning (similar to tables in HTML)
  • Supports the following attached properties
  • Grid.Column
  • Grid.Row
  • Sizing
  • Auto Sizing
  • Proporitional Sizing
  • Pixel Sizing

25
Layout Management - Border
  • Wraps its children in a border
  • Important Properties
  • BorderBrush
  • BorderThickness

26
Layout Management -Future Layout Controls
  • More still to come
  • Will converge with WPF Controls
  • Expect the following controls in the future
  • DockPanel
  • WrapPanel
  • GroupBox
  • ViewPort

27
Layout Management - Create your own layout
controls
  • Build your own layout manager
  • Use the source for the existing managers as a
    guide

28
Layout Management - Create your own layout
controls
  • MeasureOverride
  • Measure all the children and return available
    size
  • ArrangeOverride
  • Arrange all the children and return final size
  • Same as WPF

29
Silverlight 2 Controls in 1.0
  • Layout Management
  • Canvas
  • TextBlock
  • Shapes Geometries
  • Line
  • Ellipse
  • Rectangle
  • Polygon
  • Path
  • Media
  • Image
  • MediaElement

30
Controls in 1.0 - Image
  • ltImage Source"/Assets/Images/WeeMee.jpg"/gt
  • Supported Image Formats
  • JPG
  • PNG
  • To include in the .XAP
  • Must include the leading slash
  • Build Action - Content
  • Copy to output directory Copy if newer
  • Impact (larger .XAP file to download)
  • To reference outside the .XAP
  • Absolute path
  • Build Action None
  • Copy to output directory never
  • ltImage Source"http//localhost49626/SilverlightN
    etworking_Web/Assets/Images/WeeMee.jpg"/gt

31
Controls in 1.0 - MediaElement
  • ltMediaElement Source"/Assets/Images/WeeMee.jpg"/gt
  • Supported Media Formats
  • 720p HD Video
  • VC-1
  • WMV
  • WMA
  • MP3
  • Supports Media Markers (will leave to Mike
    Ormond)
  • Supports Streaming
  • Supports Progressive Downloads
  • To include in the .XAP
  • Must include the leading slash
  • Build Action - Content
  • Copy to output directory Copy if newer
  • Impact (larger .XAP file to download)
  • To reference outside the .XAP
  • Absolute path
  • Build Action None

32
Interacting with Controls
  • xName (Xaml attribute) to access control in
    codebehind
  • ltButton xName"myButton" Content"My Button"/gt
  • Declare Event in Xaml
  • ltButton xName"myButton" Content"My Button"
    Click"buttonClickTest"/gt
  • Hookup event in codebehind
  • myButton.Click new RoutedEventHandler(myButton
    _Click)

33
Demo Simple Media Player
  • Start Button
  • Stop Button
  • MediaElement
  • Event Handling
  • ASP.NET Futures (3.5) has silverlight 1.0 media
    control

34
New 2.0 Controls - Buttons
  • Button Controls
  • Button
  • RepeatButton
  • Continuous Clicks (Delay Property)
  • HyperlinkButton
  • ToggleButton
  • Checked Event (as well as Click)
  • IsChecked Property
  • CheckBox
  • Inherits from toggle button
  • RadioButton
  • Inherits from toggle button
  • Implicity Grouping within Layout Manager
  • GroupName property allows explicit grouping
  • All inherit from ButtonBase

35
Other 2.0 Controls (non item)
  • TextBox
  • Watermarked TextBox
  • Inherits from TextBox
  • Slider
  • Calendar
  • DatePicker

36
Brushes
  • All were available in Silverlight 1.0
  • SolidColorBrush
  • LinearGradientBrush
  • RadialGradientBrush
  • ImageBrush
  • VideoBrush

37
Transforms
  • All were available in Silverlight 1.0
  • RotateTransform
  • ScaleTransform
  • SkewTransform
  • TranslateTransform
  • MatrixTransform
  • Render Transform only
  • No Layout Transform
  • Be careful with stackpanels

38
Styles
  • Inline Styles (Supported in Silverlight 1.1)
  • Style Element
  • Applying Styles
  • Overriding Styles
  • Expanded Setters
  • Missing WPF Features

39
Styles - Inline
  • Inline Styles (Supported in Silverlight 1.1)
  • FontFamily
  • Foreground
  • FontSize
  • Etc.
  • Not Scalable
  • Hard to change style across application
  • Messy XAML
  • Hard to maintain consistency

40
Styles Style Element
  • xKey is required
  • Default Styles not supported (Implicit Key)
  • Only Named Types are supported
  • Target Type is required

41
Styles Applying the style
  • Applied via Style Attribute (referencing the key)

42
Styles Overriding Styles
  • Styles are Overridable
  • Can override style element style with inline
    style
  • Style inheritance however is not possible ?
  • BasedOn Attribute (WPF) not supported

43
Styles Expanded Setter
  • We have seen setting simple xaml
  • Also supports complex xaml

44
Styles Missing WPF Features
  • Default Styles
  • Cannot apply a style across all buttons
  • Must use a named type
  • Untargetted Types
  • Must have a TargetType
  • Style inheritance however is not possible ?
  • BasedOn Attribute not supported
  • Triggers not supported (Property / Data / Event)

45
Styles Styling by a designer
  • http//www.corrina_b.members.winisp.net/skins/roug
    h/Testpage.html

46
Resources
  • Static Resource
  • Scope
  • XAML Elements
  • Missing WPF Features

47
Resources StaticResource
  • Only StaticResource supported in beta
  • DynamicResource not supported
  • All static resources are loaded on page load
  • Resource is loaded even if not used
  • Resource is read once (and only once)
  • Resource Item is not modifiable at runtime
  • Attempting to modify static resource at runtime
    results in catastrophic failure (wooo ha ha ha
    ha)

48
Resources - Scope
  • Style is available within scope of the resources
    section
  • StackPanel / Grid etc
  • UserControl
  • Application Wide (App.xaml)
  • Not available outside of the scope
  • Style Elements can override other style elements
  • MyTextBlock style (defined in app.xaml resource)
  • MyTextBlock style (defined in grid resources)
  • Grid resource style overrides app.xaml resource

49
Resources Xaml Elements
  • Not just styles supported in resource area
  • Other Xaml Elements supported e.g. Brushes

50
Resources Missing WPF Features
  • DynamicResource
  • Direct application of StaticResource
  • Dynamic Skinning
  • Resource Dictionary (external file for source)
  • Merged Dictionaries
  • Dynamic Resource
  • Themes

51
Content Model
  • Can set complex content (not just text)
  • MediaElements
  • ContentPresenter to display content
  • ltButton Height"30" Width"100"
  • Click"Button_Click"gt
  • ltButton.Contentgt
  • ltGridgt
  • ltEllipse Height"20"
    Width"20"
  • Fill"Red"/gt
  • ltContentPresenter
    Content"Hello World"

  • HorizontalAlignment"Center"

  • VerticalAlignment"Center"/gt
  • lt/Gridgt
  • lt/Button.Contentgt
  • lt/Buttongt

52
Templates
  • Uses Resource Section
  • Applied via style
  • Override ControlTemplate for Template property
  • Use TemplateBinding to bind to control properties
  • Control continues to use content
  • ltStyle xKey"buttonStyle" TargetType"Button"gt
  • ltSetter Property"Template"gt
  • ltSetter.Valuegt
  • ltControlTemplate
    TargetType"Button"gt
  • ltGridgt
  • ltEllipse
    Height"TemplateBinding Height"

  • Width"TemplateBinding Width"

  • Fill"Red"/gt
  • ltContentPresenter
    Content"TemplateBinding Content"

  • HorizontalAlignment"Center"

  • VerticalAlignment"Center"/gt
  • lt/Gridgt
  • lt/ControlTemplategt

53
Binding and Items Controls
  • ListBox
  • Datagrid

54
ListBox
  • Manually add items
  • Not Just Text (buttons, textboxes etc)
  • Set ItemSource

55
ListBox - DataTemplate
  • Customise Listbox

56
ListBox - Binding
  • Binding MyPropertyName
  • Binding Modes
  • OneWay
  • TwoWay
  • Binding LikesFootball, ModeTwoWay

57
Observable Collections
  • Notifies the Items Control if the underlying
    collection has changed

58
INotifyPropertyChanged
  • Notifies the Items Control if the underlying
    collection has changed
  • Implements INotifyPropertyChanged
  • Raises Event (PropertyChangedEvenHandler)

59
DataContext
  • Sets the scope of the binding
  • Useful for master detail

60
IValueConverter
  • Used to convert data for UI display

61
IValueConverter
  • Converter declared as a resource
  • ltlocalDateToString xKey"DateConverter"/gt
  • Converter specified within binding
  • ltTextBlock Text"Binding PublishDate,
    ModeOneWay, ConverterStaticResource
    DateConverter"/gt

62
Networking
  • POX Web Client
  • Security
  • CrossDomain.xml
  • ClientAccessPolicy.xml
  • WCF Service is recommended approach
  • SOAP
  • (Was JSON in Silverlight 1.1)
  • JSON is supported but is a pain
  • ASMX is supported but use WCF
  • ADO.NET Data Services
  • Sockets

63
Plain Old Xml
  • Grab Xml Data
  • Use Web Client

64
Pox Calling the service
  • Setup the Service
  • Setup the Completed Event Handler
  • Call the Service (asynchronously)

65
LINQ to Xml
  • LINQ to Xml Supported
  • No Xpath Support

66
Service Security
  • Can only access hosted Web Server unless server
    has
  • ClientAccessPolicy.xml
  • CrossDomain.xml (flash)
  • Be careful misuse can open security risk
  • See my blog posting regarding

67
CrossDomain.xml
68
ClientAccessPolicy.xml
69
WCF Service
  • Echo Service Demo
  • Create Service as normal
  • Must change binding of WCF Service to
    basicHttpBinding (default is wsHttpBinding) in
    web.config

70
WCF Service Client Proxy
  • Within Silverlight Application
  • Add Service Reference
  • Click Discover (will find service)
  • Only asynchronous calls supported
  • ServicesReferences.ClientConfig is ignored

71
WCF Service Calling the service
  • Setup the Service
  • Setup the Completed Event Handler
  • Call the Service (asynchronously)

72
WCF Service Membership
  • Supports Membership Provider Model
  • ASP.NET Compatibility Mode
  • Leverages existing website login mechanism
  • Restricts service access to logged in users
  • See my blog posting regarding

73
ADO.NET Data Services
  • Silverlight supports it
  • Ask Guy about it

74
Sockets
  • Outside of scope of todays talk
  • Can only create a socket with hosted web server
  • CrossDomain.xml ClientAccessPolicy.xml have no
    effect
  • Port Range supported 4502-4532

75
Storage
  • Isolated Storage
  • Open File Dialog

76
Isolated Storage - Security
  • Applications have no direct access to file system
  • (except via open file dialog, later)
  • Isolated Storage is only area that can be saved
    to
  • Can store pretty much anything
  • Size is limited by default and increasable by
    user permission

77
Isolated Storage User Store
78
Isolated Storage Storage Limits
  • 100kb default per user per application
  • Can query available free space
  • AvailableFreeSpace Property (in bytes)
  • Can query maximum available (Quota)
  • Quota Property (in bytes)
  • Can request increase in quota
  • Requires user approval
  • TryIncreaseQuotaTo method
  • Can only increase not decrease

79
Isolated Storage File System
  • Lives in AppData\LocalLow\Microsoft\Silverlight\is
  • Folder Structure / Underlying file system is
    synchronised
  • Directory is worth 1Kb in Isolated Storage
  • Only if created in Silverlight
  • Supports Hierarchical Directory Structure
  • userStore.CreateDirectory("aa/a1")
  • Can recurse the file system

80
Open File Dialog
  • Only way to access file system outside of
    Isolated Storage

81
Html Bridge
  • Not covering today
  • Can access Html of hosted web page (2 way)
  • HtmlDocument (System.Windows.Browser)
  • HtmlPage
  • GetElementByID
  • http//www.silverlight.net/Quickstarts/Dom/DomAcce
    ss.aspx

82
The Future
  • More Betas (this year)
  • Silverlight 2 release (this year)
  • Silverlight 2 port to Moonlight
  • Silverlight 2 port to Mobile Devices
  • Silverlight moving closer to WPF (more WPF
    features)
  • The end of the web as we know it ?

83
The End
  • Slides up on my blog
  • http//silverlightuk.blogspot.com
  • Email chrishayuk_at_googlemail.com
  • Hope to do some screencasts (see blog)
  • Thanks for coming
Write a Comment
User Comments (0)
About PowerShow.com
