Spectroscopy for Analysis of Automobile Emissions

1

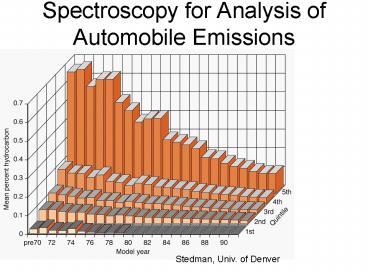

Spectroscopy for Analysis of Automobile Emissions
Stedman, Univ. of Denver
2
Stedmans Work
3
Double-Beam Spectrometer
Light is alternated through a reference and
sample cell so you do not have to swap out the
blank and the analyte.
4
Insides of a DB Spectrophotometer
Deuterium arc lamp
Halogen lamp
5
Lamp Sources

• Tungsten lamp (320-2500 nm)
• Deuterium arc lamp (200-400 nm)
• Hg vapor arc lamp (225 -800)
• Xe gas arc lamp (200-1000 nm)
• Globar (SiC) (1-40 mm)

6
Emission Wavelentghs of D2 and W
7
How does a Laser Work?
When a photon from E2 hits another E2 it causes
another photon
Molecules put into excited state by a lamp or
electric discharge
Fast Processes
(Greater population of excited state than ground
state)
Laser light is coherent, meaning that all
waves are in phase
8
Laser Sources

• Lasers can be operated as constant output
  (continuous wave-CW) or pulsed output
• Solid-state
• NdYAG (1064, 532, 266 nm)
• Ruby laser (694.3 nm)
• Gas lasers
• HeNe (3390, 1150, 633 nm)
• Ar (488.8, 514.6 nm)
• CO2 (10600 nm)
• Dye lasers (virtually any wavelength)

Most reliable lasers
Most powerful lasers
9
Monochromators

• A monochromator disperses light into component
  wavelengths and picks a narrow band to pass on to
  sample cell or detector
• The most common is a diffraction grating, which
  is an optical component with a series of lines
  that reflect light
• As light hits the lines, each of the lines
  behaves as an individual light source

10
Grating Diagram
Collimates (makes parallel) the light
Focuses the light
?s diffract at different angles
Only 1 ? at a time can make it through the slit
