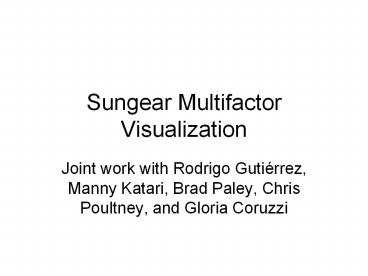

Sungear Multifactor Visualization

• Joint work with Rodrigo Gutiérrez, Manny Katari,
  Brad Paley, Chris Poultney, and Gloria Coruzzi

2
Typical Genomic Questions

• Multiple experiments (multiple time points,
  multiple conditions), many Go categories, or
  other features of genes want to know when
  certain Go categories are highly represented.
• Many species, want to know which genes have
  presence in many species and perhaps which GO
  categories

3
Computational Desires

• Simple, responsive interface
• Visualize lots of data
• Many ways to query
• Many different data representations

4
Sungear Design

• Generalizes Venn diagrams to more than three
• Visual outline is an ellipse having anchors on
  borders and vessels in the interior.
• Each vessel points to associated anchors.
• Linked views to hierarchies, lists, and graphs,
  so can simultaneously update data depending on
  user queries (selection events).

5
(No Transcript)
6
Sungear Principle

• Sungear is stupid
• Doesnt care which kind of data it is
  representing, though there is built-in support
  for genes (because of links to GO and to
  cytoscape).
• Basic Sungear representation could be used to
  describe anything from yachting gear to
  demographics.

7
Seed Development Stages(an example)
8
(No Transcript)
9
Demos

• Growth stages showing when genes are transcribed
  (N-reg AtGenExpSeedDev)
• Blast comparison of Arabidopsis against most
  fully sequenced organisms.
• Nitrogen, carbon, light, organ showing regulation
  -- relative expression (cnlo)
• Interspecies comparisons that might show which
  kinds of genes are missing in gymnosperms, for
  example (Vicogenta)

10
Genes that respond to N in leaves and C in roots
form the largest group (cnlo)
11
PII and other genes involved in N-metabolism are
among these 566
12
HYPOTHESIS Most of the regulated genes are
involved in metabolism.
13
this is not the case for other processes
14
Genes that are regulated by N L together
15
Gene networks of NL-responsive genes
16
Conclusion

• If you have lots of data about some common entity
  (genes, people, goods, whatever) and several
  factors or experiments whose interaction you want
  to visualize, Sungear is for you.
• Still under development but works.
