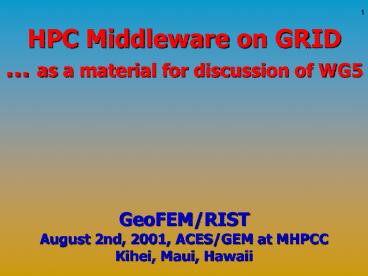

HPC Middleware on GRID as a material for
discussion of WG5

• GeoFEM/RIST
• August 2nd, 2001, ACES/GEM at MHPCC
• Kihei, Maui, Hawaii

2
Background

• Various Types of HPC Platforms
• MPP, VPP
• PC Clusters, Distributed Parallel MPPs, SMP
  Clusters
• 8-Way SMP, 16-Way SMP, 256-Way SMP
• Power, HP-RISC, Alpha/Itanium, Pentium, Vector PE
• Parallel/Single PE Optimization is Important
  Issue for Efficiency
• Everyone knows that ... but it's a big task
  especially for application experts such as
  geophysics people in ACES community.
• Machine dependent optimization/tuning required.
• Simulation Methods such as FEM/FDM/BEM/LSM/DEM
  etc. have Typical Processes for Computation.
• How about "Hiding" these Processes from Users ?
• code development efficient, reliable, portable,
  maintenance-free
• line number of the source codes will be reduced
• accelerates advancement of the applications (
  physics)

3
Background (cont.)

• Current GeoFEM provides this environment
• limited to FEM
• not necessarily perfect
• GRID as next generation HPC infrastructure
• Currently, middlewares and protocols are being
  developed to enable unified interface to treat
  various OS, computers, ultra-speed network and
  database.
• What are expected to GRID ?
• Meta-computing simultaneous use of
  supercomputers in the world
• Volunteer-computing efficient use of idling
  computers
• Access Grid research collaboration environment
• Data Intensive Computing computation with
  large-scale data
• Grid ASP application services on WEB

4
Similar Research Groups

• ALICE(ANL)
• CCAforum(Common Component Architecture,DOE)
• DOE/ASCI/Distributed Computing Research Team
• ESI(Equation Solver Interface Standards)
• FEI(The Finite Element/Equation Solver Interface
  Specification)
• ADR(Active Data Repository)(NPACI)

5
Are they successful ? It seems NO

• Very limited targets, processes
• Mainly for Optimization of Linear Solvers
• Where are Interfaces between Applications and
  Libraries ?
• Approach from Computer/Computational Science
  People
• Not Really Easy to Use by Application People

Computer/ Computational Science
Applications
-Linear solvers -Numerical Algorithms
-Parallel Programming -Optimization
-FEM -FDM -Spectral Methods -MD, MC -BEM
6
Example of HPC Middleware (1)Simulation Methods
include Some Typical Processes
O(N) Ab Initio MD
7
Example of HPC Middleware (2)Individual Process
could be optimized for Various Types of MPP
Architectures
O(N) Ab Initio MD
8
Example of HPC Middleware (3)Use Optimized
Libraries
O (N) ab - initio M D
9
Example of HPC Middleware (4)- Optimized code is
generated by special language/ compiler based on
analysis data and H/W information.- Optimum
algorithm can be adopted
O (N) ab - initio M D
Special Compiler
10
Example of HPC Middleware (5)- On
network-connected H/W's (meta-computing)-
Optimized for individual architecture- Optimum
load-balancing
O (N) ab - initio M D
11
Example of HPC Middleware (6)Multi Module
Coupling through Platform
12
PETAFLOPS on GRIDfrom GeoFEM's Point of View

• Why? When?
• Datasets (mesh, observation, result) could be
  distributed.
• Problem size could be too large for single MPP
  system.
• according to G.C.Fox, S(TOP500) is about 100
  TFLOPS now ...
• Legion
• Prof.Grimshaw (U.Virginia)
• Grid OS, Global OS
• Can handle MPP's connected through network as one
  huge MPP ( Super MPP)

• Optimization on Individual Architecture (H/W)
• Load balancing according to machine performance
  and resource availability

13
PETAFLOPS on GRID (cont.)

• GRID (OS) HPC MW/PF
• Environment for "Electronic Collaboration

14
(No Transcript)
15
"Parallel" FEM Procedure
