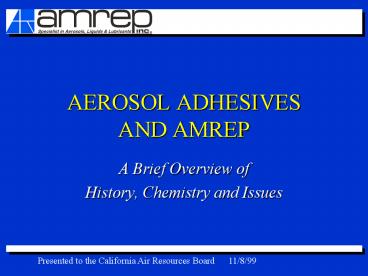

AEROSOL ADHESIVES AND AMREP

1
AEROSOL ADHESIVESAND AMREP

• A Brief Overview of
• History, Chemistry and Issues

Presented to the California Air Resources Board
11/8/99
2
Who is Amrep?

• One of the largest manufacturers of both branded
  and private label chemical programs in the USA
• Marketer to the Industrial and Institutional,
  Automotive Aftermarket, Water Treatment, and
  Consumer Products/Retail business segments
• Not a contract filler -- we provide programs to
  our customers competitively and at values
  exceeding alternate sources of supply on a total
  turnkey basis
• One of the few manufacturers who can truly be a
  one stop shop for many distributors and
  retailers with aerosols, liquids, and lubricants
  in the product line

3
History of Amrep

• The business began independently as
• Aero Mist, founded in 1969 as an aerosol
  manufacturer in Atlanta, GA
• Research Products, founded in 1960 as a bulk
  liquid manufacturer in Dallas, TX
• Aero Mist and Research Products merged in 1979 to
  form AMREP
• Arrow Grease and Oil of Dallas, TX was acquired
  in 1987 adding a complete line of lubricants
• MBL Industries of Santa Ana, CA another aerosol
  manufacturer, was acquired in 1987 completing the
  acquisitions to date

4
The Environmental Amrep

• We have been recognized by the Environmental
  Protection Agency as a successful participant in
  the 33/50 Program -- a voluntary reduction of
  emissions at all of our manufacturing plants
• We were one of the first companies to enable
  their customers to comply with the 1991 Clean Air
  Act by providing alternative products to
  chlorinated solvents and other ozone depleting
  substances
• We currently offer only two products with any ODP
  (HCFC 141b) and will phase out methylene chloride
  in 2000
• We utilize an on site, state-of-the-art waste
  stream reduction system reduce hydrocarbon waste
  and emissions - an industry first
• Our packaging is made from recycled material
  containing, recyclable, components

5
Capabilities - Aerosols

• 140 stocked aerosol formulas for institutional,
  industrial, and consumer applications
• Marietta, GA facility is 150,000 sq..ft. with 2
  high speed rotary fill and 1 in-line fill
  production lines
• 2000 capacity is approximately 45-50 million cans
• Equipped for natural hydrocarbon and synthetic
  liquefied gas propellants as well as all
  compressed gas propellants but not equipped for
  DME (safety, setbacks)
• Aerosol adhesives comprise over 10 of sales and
  is the largest single product category for AMREP

6
AMREP Aerosol Adhesives

• PS Repositionable Mist
• PS HD General Purpose Mist
• PS LD General Purpose Mist
• PS LD General Purpose Web
• PS HD General Purpose Web
• PS HD Foam and Fabric Web
• High Heat Trim Web Contact Cement

• Seven formulations are offered each for a
  specific technology and/or application
• All are solvent based nonchlorinated with
  hyrdocarbon propellant

7
Typical Applications

• MOTOR VEHICAL TRIM/ACCESSORIES
• FURNITURE ASSEMBLY
• ASBESTOS/LEAD ABATEMENT CONTAINMENT CONSTRUCTION
• SCREEN PRINTING AND EMBROIDERY

• ARTS CRAFTS
• HVAC/INSULATION
• GRAPHIC ARTS
• GENERAL INDUSTRIAL ASSEMBLY LINE
• GENERAL CONSTRUCTION
• ETCETERA AND VARIED

8
Basic Chemical Composition

• POLYMER
• TACKIFYING RESINS
• ADDITIVES
• SOLVENT
• PROPELLANT

9
Types of Rubber Used

• SIS - STYRENE-ISOPRENE-STYRENE
• SBS - STYRENE-BUTADIENE-STYRENE
• SBR - STYRENE-BUTADIENE RUBBER
• EVA - ETHYLENE VINYL ACETATE
• NEOPRENE (POLYCHLOROPRENE)

10
Tackifying Resins

• ROSIN ESTERS
• HYDROCARBON RESINS
• TERPENE RESINS

11
Typical Additives

• ANTIOXIDANTS
• PLASTICIZERS
• HEAT STABILIZERS AND END BLOCK PROTECTORS

12
Solvent Options Available

• CHLORINATED
• METHYLENE CHLORIDE
• VOC EXEMPT, OSHA REGULATED, PROP 65, PHASING OUT
• 1,1,1-TRICHLOROETHANE
• VOC EXEMPT,ODP, NO LONGER PRODUCED
• OXSOL
• HIGH COST, HIGH ODOR, SLOW DRYING

13
Solvent Options Available (CONT.)

• FLAMMABLE
• HEXANE, HEPTANE, CYCLOHEXANE, ACETONE
• VOC, NFPA FLAMMABILITY RATING 3, FAST DRYING, LOW
  ODOR
• TOLUENE
• VOC, HIGH ODOR, PROP 65, SLOW DRYING

14
Solvent Options Available (CONT.)

• OTHER
• HYDORFLUOROETHERS (HFE)
• EXPENSIVE, POOR SOLUBILITY, GOOD TOXICITY, NO ODP
• HYDROFLUORCARBONS (HFC)
• EXPENSIVE, POOR SOLUBILITY, GOOD TOXICITY, NO ODP
• WATER
• SIMPLY NOT FEASIBLE IN AEROSOL APPLICATION DUE TO
  POOR CHOICE OF MATERIALS AVAILABLE, UNACCEPTABLE
  SPRAY PATTERNS, UNACCEPTABLE PERFORMANCE, AND
  LACK OF EFFICIENT DRY TIME

15
Solvent Options Available (CONT.)

• OTHER CONT.
• N-PROPYL BROMIDE
• EXPENSIVE BUT PRICE DROPPING/SUPPLY INCREASING
• AVAILABILITY STILL A QUESTION AS USAGE INCREASES
• POSSIBLE TOXICITY ISSUES YET TO BE CONFIRMED
• ESSENTIALLY NO ODP, NO HAP, RCRA, SARA, NESHAPS
• NO PROP 65 CLASSIFICATION
• SLIGHT ODOR, EXCELLENT SOLUBILITY
• SNAP APPROVAL PENDING
• CURRENTLY VOC BUT UNDER REVIEW FOR DELISTING

16
Propellant Options

• HYDROCARBON
• VOC
• A-108, A-70, A-46, ETC.
• LIMITED SOLUBILITY
• DME
• VOC
• SPECIAL HANDLING REQUIRED
• SPECIAL VALVES
• GOOD SOLUBILITY

• HFC-134a
• VOC EXEMPT
• EXPENSIVE
• AVAILABILITY
• POOR SOLUBILITY
• HFC-152a
• VOC EXEMPT
• EXPENSIVE
• AVAILABILITY
• POOR SOLUBILITY

17
Summary of Issues on Approaches to Lower VOC
Aerosol Adhesives

• Higher Solids - limited feasibility due to
  sensitivity of spray patterns, mechanical
  capabilities of valves, solubility sensitivity
• Higher non-VOC Solvent Content - lack of
  availability, impact on dry time, cost,
  performance, and solubility concerns
• Higher non-VOC Propellant Content - availability
  concerns, cost impact, greater solubility issues
  than hydrocarbons
• Leading Edge Materials - position on
  acceptability and availability not definitive
  enough for 2002 implementation
• Conclusions?

18
Conclusions

• VOC LEVELS LOWER THAN 60-50
• REQUIRE EXTENSIVE RESEARCH FOR THE DIFFERENT
  CATEGORIES OF ADHESIVES (SOME MORE DIFFICULT)
• MOST LIKELY NOT COST EFFECTIVE FOR MANY
  CATEGORIES
• MAY NOT MEET GENERAL PERFORMANCE REQUIREMENTS
• MAY INVOLVE HAZARD TRADING LOWER VOC FOR
  ?????
• LEVELS MAY NOT BE POSSIBLE FOR ALL APPLICATION
  AREAS
• BELOW 25 LIKELY NOT ACHIEVABLE FOR ANY AREAS
  UNLESS BREAKTHROUGH MATERIAL IS AVAILABLE
• WATER-BASED SIMPLY NOT AN OPTION IN AEROSOL
