Ethernet Frame

1

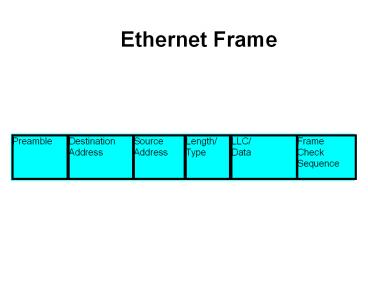

• Ethernet Frame

Preamble
Destination Address
Source Address
Length/ Type
LLC/ Data
Frame Check Sequence
2

• Ethernet Addresses

• 48 bit
• normally shown in HEX
• e.g. 02-60-8C-44-59-E0
• first 24 bits are obtained from IEEE by hardware
  manufacturers
• one bit is used to distinguish unicast from
  multicast addresses
• one bit is used to distinguish locally assigned
  addresses(rare) from globally assigned addresses
  (typical)

3

• Transmission Types

• Unicast - intended for one specific station
• Broadcast - intended for all stations
• Multicast - intended for a group of stations

4

• CSMA/CD

• Carrier Sense, Multiple Access with Collision
  Detection
• Carrier sense - don't transmit if there is
  already a signal
• Collision detection - if a collision is detected
  jam, wait, and retransmit

5
(No Transcript)
6

• No Carrier

7

• Transmission

8

• Transmission

9

• End of Transmission

10

• Transmission

11

• Second Transmission

12

• Collision

13

• Collision detected

14

• Wait

15
Ethernet HUB(repeater)

• Layer 1 device
• Repeat signal on all ports
• Enforce collision on all segments (jam)
• Restore amplitude of the signal
• Retime the signal
• Single speed
• May mix media

16

• Repeater Hub

17

• Repeater Hub
• one station transmits

18

• Repeater Hub
• signal repeated on all other ports

19

• Repeater Hub
• signal repeated on all other ports

20

• Repeater Hub
• end of transmission

21

• Repeater Hub

22
(No Transcript)
23
(No Transcript)
24
Matrix Module
25
Collision Domain

• Devices connected by hubs
• Only one device can transmit at a time
• Collisions detected by all devices in the domain

26
One Collision Domain
Hub
Hub
Hub
27
(No Transcript)
28
(No Transcript)
29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
Broadcast Domain

• Devices connected by switches
• Can contain multiple collision domains
• One transmission in each collision domain
• Collisions do not propagate between collision
  domains
• Broadcast frames do propagate to all collision
  domains
• Can be full duplex if only two devices in
  collision domain and both devices are full duplex
  cabable

33
Three Collision Domains One Broadcast Domain
Switch
Hub
Hub
34
H Ethernet Hub S Ethernet Switch R IP
Router W Workstation _____ Ethernet Segment
R
S
S
S
H
H
H
H
W
W
W
W
W
W
W
W
W
35
H Ethernet Hub S Ethernet Switch R IP
Router W Workstation _____ Ethernet Segment
R
S
S
S
H
H
H
H
W
W
W
W
W
W
W
W
W
36
H Ethernet Hub S Ethernet Switch R IP
Router W Workstation _____ Ethernet Segment
R
S
S
S
H
H
H
H
W
W
W
W
W
W
W
W
W
37
H Ethernet Hub S Ethernet Switch R IP
Router W Workstation _____ Ethernet Segment
R
S
S
S
H
H
H
H
W
W
W
W
W
W
W
W
W
38
Ethernet switch

• Function (old name) bridge
• Forwards or Filters unicasts
• Floods (forwards to all ports) all broadcasts
• Learns address locations
• Can be full duplex if only two devices in
  collision domain and both devices are full duplex
  cabable
• Can mix speeds and media

39
(No Transcript)
40
DA SA Action
FF E2
E2 E3
E3 E2
FF E5
E5 E6
E6 E5
E4 E1

ADDRESS PORT






41
Switch Light Videos

• Switch Lights(3.5 MB)
• Switch Lights more(5.9 MB)

42
Cut-Through Mode andStore and Forward Mode

• Cut-through mode
• Switching mode in which switch reads a frames
  header and decides where to forward the data
  before it receives the entire packet
• Can detect runts, or packet fragments
• Store and forward mode
• Switching mode in which switch reads the entire
  data frame into its memory and checks it for
  accuracy before transmitting it

43
Using Switches to Create VLANs

• Virtual local area networks (VLANs)
• Means by which a switch can logically group a
  number of ports into a broadcast domain
• Broadcast domain
• Combination of ports that make up a Layer 2
  segment and must be connected to a Layer 3 device

FIGURE 6-24 Simple VLAN design
44
Trunk Aggregation
45
Resilient Links
46
Higher-Layer Switches

• Switch capable of interpreting Layer 3 is called
  a Layer 3 switch
• Switch capable of interpreting Layer 4 is called
  a Layer 4 switch
• Higher-layer switches may also be called routing
  switches or application switches

47
Routers

• Multiport device
• Can connect dissimilar LANs and WANs running at
  different transmission speeds and using a variety
  of protocols

48
Router Features and Functions

• Filter out broadcast transmission to alleviate
  network congestion
• Prevent certain types of traffic from getting to
  a network
• Support simultaneous local and remote activity
• Provide high network fault tolerance through
  redundant components
• Monitor network traffic and report statistics to
  a MIB
• Diagnose internal or other connectivity problems
  and trigger alarms

49
Routers
FIGURE 6-26 Placement of routers on a LAN
50
Routing Protocols

• Means by which routers communicate with each
  other about network status
• Convergence time
• The time it takes for a router to recognize a
  best path in the event of a change or outage
• Bandwidth overhead
• Burden placed on an underlying network to support
  the routing protocol

51
Routing Protocols

• RIP (Routing Information Protocol) for IP and IPX
• OSPF (Open Shortest Path First) for IP
• Best path refers to the most efficient route from
  one node on a network to another
• EIGRP (Enhanced Interior Gateway Routing
  Protocol) for IP, IPX, and AppleTalk
• BGP (Border Gateway Protocol) for IP

52
Gateways

• Combination of networking hardware and software
  that connects two dissimilar kinds of networks
• E-mail gateway
• IBM host gateway
• Internet gateway
• LAN gateway
