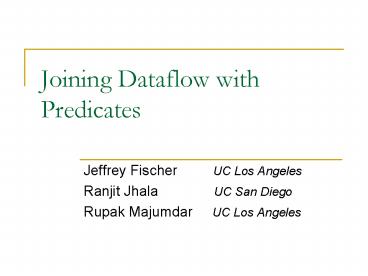

Joining Dataflow with Predicates

• Jeffrey Fischer UC Los Angeles
• Ranjit Jhala UC San Diego
• Rupak Majumdar UC Los Angeles

2
Classical dataflow analysis

• Fast and systematic approach to program analysis
• Compute the least fixed-point for a set of
  dataflow facts
• An eager analysis set of facts is fixed
• Problems
• Imprecision
• Dataflow facts propagated across infeasible
  branches
• Unification of facts at join points
• Not adaptive may be overwhelmed with irrelevant
  facts

Introduction
3
Another approach CEGAR

• Start with coarse abstraction and refine based on
  infeasible counter examples
• Counterexample-guided abstraction and refinement
• Clarke et al, 2000
• Informally called lazy analyses
• Avoids cost of tracking unnecessary information
• gt Scales better to large programs
• Most common approach Predicate abstraction
• Represent program state using first-order
  predicates over program variables
• Can we use this to regain precision in dataflow
  analyses?

Introduction
4
Problems with lazy dataflow analysis

• Not always convenient to model program structures
• May require several iterations to find obvious
  facts
• Limitations in predicate discovery algorithms

Introduction
5
Our contributions

• Combine best features of lazy and eager analyses
  through predication
• Demonstrate effectiveness through symbolic
  execution lattice
• Implementation in BLAST model checker

Introduction
6
Outline

• Motivating example
• Predicated lattices
• Symbolic execution lattice
• Implementation and results
• Related work and conclusion

Introduction
7
Example tracking the state of a FILE
FILE out int flag 1 out-gtis_open
1 2 assert(out-gtis_open1) 3 out-gtis_open
0 . . 4 flag 0,1 5 if (flag) 6
out-gtis_open 1 7 else . . 8 if
(flag) 9 assert(out-gtis_open)
FILE out int flag 1 open(out) 2
fprintf(out, ...) 3 close(out) . . 4
flag getIntOpt(dbg) 5 if (flag) 6
open(out) 7 else . . 8 if (flag) 9
fprintf(out, ...)
Simplified program

• Dataflow facts
• out-gtis_open

Motivating example
8
An eager dataflow analysis
1 out-gtis_open 1 2 assert(out-gtis_open1)
3 out-gtis_open 0 . .
out-gtis_open ? 1
OK
out-gtis_open ? 0
Motivating example
9
An eager dataflow analysis
4 flag 0,1 5 if (flag) 6 out-gtis_open
1 7 else . . 8 if (flag) 9
assert(out-gtis_open)
Error!
Motivating example
10
If we track flag, the analysis still fails
4 flag 0,1 5 if (flag) 6 out-gtis_open
1 7 else . . 8 if (flag) 9
assert(out-gtis_open)
Error!
Motivating example
11
Predicated Lattices

• For each program location, track a set of
  first-order predicates over program variables
• Rather than track dataflow facts directly, track
  a predicated lattice
• Each lattice element maps predicates to original
  lattice elements
• At join points, only join facts associated with
  the same set of predicates
• We use true as the default predicate
• Instance of reduced cardinal powers of lattices
  Cousot 79

Predicated lattices
12
Example
4 flag 0,1 5 if (flag) 6 out-gtis_open
1 7 else . . 8 if (flag) 9
assert(out-gtis_open)
OK
Predicated lattices
13
Where do the predicates come from?

• Initially, no predicates are tracked
• Run the dataflow analysis
• Upon finding a counterexample, check whether it
  is feasible
• If feasible, report an error
• If not feasible, add predicates which rule out
  the counterexample
• Repeat from step 1

Predicated lattices
14
Details of lazy analysis

• Path to error found via search of control flow
  graph
• Weakest precondition computed backward from error
• If WP to beginning is satisfiable, error is
  feasible
• If WP not satisfiable, use to find new predicates
• Coverage check used join points to ensure
  termination
• See Henzinger, et al. 2002 for details

Predicated lattices
15
Search for path to error
4 flag 0,1 5 if (flag) 6 out-gtis_open
1 7 else . . 8 if (flag) 9
assert(out-gtis_open)
4 flag 0,1
Error!
Predicated lattices
16
Take WP of each statement
4 flag 0,1 5 if (flag) 6 out-gtis_open
1 7 else . . 8 if (flag) 9
assert(out-gtis_open)
Contradiction! WP5 flag0 WP7 WP7 WP8
. . WP8 flag1 out-gtis_open0
WP5 flag0 WP7
Add predicates for flag
WP8 flag1
Predicated lattices
17
Rerun with predicates
4 flag 0,1 5 if (flag) 6 out-gtis_open
1 7 else . . 8 if (flag) 9
assert(out-gtis_open)
4 flag 0,1
out-gtis_open ? 0
flag0
out-gtis_open ? 0
flag0
out-gtis_open ? 0
false
Path not feasible!
Predicated lattices
18
Symbolic Execution Lattice

• Proof of concept for predicated lattices,
  implemented in BLAST model checker
• Tracks values of program variables and heap
• Facts at each program point represented as map
  from names to values
• Symbolic Execution used to compute new facts
  after each statement

Symbolic execution lattice
19
Symbolic Execution Lattice

• Uncertainty introduced by joins, environment, and
  approximations
• Use predicated lattice to introduce path
  sensitivity as needed
• To be sound, must always track potential
  points-to relationships

Symbolic execution lattice
20
Names

• Program variables
• Fresh name created at each heap allocation call
• To bound the number of names, equivalence classes
  defined for heap names
• Summary values maintained for multi-valued
  equivalence classes

Symbolic execution lattice
21
Values

• Constants (integers, strings, etc.)
• Pointers
• Must(addr) definitely points to addr
• May(v,addrSet) may point to any location in
  addrSet, with target value v
• Special addresses
• null
• Errp
• T (top)

Symbolic execution lattice
22
Dataflow fact notation

• Constants name ? constant
• Example x ? 5
• Structures name ? (field1 ? v1, field2 ? v2, )
• Example outp ?(is_open ?1)
• Must-pointers pointer_name ? target name
• Example x ? y
• May-pointers
• ltpointer_namegt ? target1, target2, gt value
• Examples x ? p1, p2 gt 5, y ? T gt 5

Symbolic execution lattice
23
Joining dataflow facts

• Dataflow facts are joined
• At join-points in the control flow
• When assigning through a may-pointer
• When computing summary values

Symbolic execution lattice
24
Rules for joining values
Symbolic execution lattice
25
Example

• int x 0
• int y 1
• int z
• if ()
• z x
• else
• z y
• ...
• z 5

Symbolic execution lattice
26
Another example

• int ex(FILE fp)
• FILE outp
• if ()
• if (fp-gtis_open!1)
• return -1
• else
• outp fp
• else
• outp (FILE)malloc(...)
• fopen(outp, ...)
• ...
• assert(outp-gtis_open1)
• ...

OK
Symbolic execution lattice
27
Dynamic Allocation

• We partition heap names based on equivalence
  classes
• All values assigned to equivalence class are
  joined together and with T
• Different partitioning strategies possible
• Merge all allocations at a given statement
• Merge all allocations at a given statement,
  except for most recent
• Merge all allocations at a given statement, when
  their values agree on some set of 3-valued
  predicates
• gt Shape Analysis Sagiv,Reps,Wilhelm 99

Symbolic execution lattice
28
Implementation in Blast

• Dataflow analyses implemented as lattice plug-ins
  to BLAST
• Details of each analysis hidden behind an ADT

Implementation and results
29
Implementation in BLAST

• Symbolic Execution lattice
• Models arrays as summary nodes
• Full support for structures
• Uses
• Rule out infeasible paths (avoiding
  counterexample analysis)
• Context sensitive alias analysis

Implementation and results
30
Experiments

• Checked MS Windows device drivers
• 14k to 138k lines of preprocessed C code
• Typestate property related to I/O request
  protocols
• Described by a 22 state automaton
• Compared results with and without symbolic
  execution lattice

Implementation and results
31
Results
Implementation and results
32
Related work

• Tensor analysis
• Cousot,Cousot 79
• Predicated lattices an application of this theory
• We consider implementation issues
• Qualified dataflow analysis
• Holly,Rosen 81, Dwyer,Clarke 96, Dwyer, et
  al. 2004
• Key difference our approach automatically
  generates qualifications
• ESP
• Das,Lerner,Seigle 2002
• ESP provides fixed qualifications based on
  property automata
• Predicated lattices a generalization of ESP

Related work and conclusion
33
Conclusion

• Predicated lattices incrementally add path
• sensitivity to your favorite dataflow analysis

Now you have the advantages of both eager and
lazy analyses.
Related work and conclusion
34
Supplemental Slides
35
Example an eager dataflow analysis

• Lattice

T
out-gtis_open0, flagT
out-gtis_open1, flagT
out-gtis_openT, flag0
out-gtis_openT, flag1
out-gtis_open0, flag0
out-gtis_open1, flag0
out-gtis_open0, flag1
out-gtis_open1, flag1
