TRENCHLESS INSTALLATIONS

1

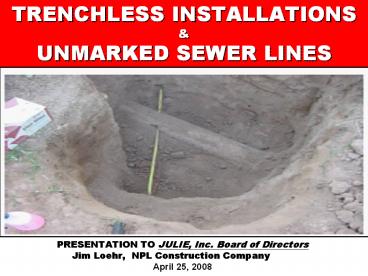

TRENCHLESS INSTALLATIONSUNMARKED SEWER LINES

• PRESENTATION TO JULIE, Inc. Board of Directors
• Jim Loehr, NPL Construction Company
• April 25, 2008

2
NPL CONSTRUCTION CO.
3
NPL Locations Map


4
THE NPL BUSINESS DEFINITION

• We provide best-cost solutions for quality
  conscious customers by supplying a high-qualified
  work force, quality equipment, experienced
  management in the safe installation, rehab,
  repair, replacement and maintenance of reliable
  infrastructure systems.
• Our core business focuses on energy
  distribution systems
• - Joint Trenching - Trenchless,
  no-dig construction
• - Turnkey projects - Small hole
  vacuum excavation
• - New Construction - Urban
  pipeline construction
• - Strategic Relationships - Urban
  restoration
• - Replacement, where NPL is the
  industry leader.

5
MAJOR CUSTOMERS

• AGLR ATG
• Atmos (Greeley Gas / was TXU Gas) ATO
• Constellation (BGE) CEG
• Cinergy (Duke) DUK
• Centerpoint (Minnegasco) CNP
• Dakota Electric Association DEA
• Energy East (So. Connecticut Gas) EAS
• Integrys Energy (MERC, Peoples) TEG
• Nicor GAS
• NiSource (Nipsco, Columbia Gas) NI
• Oneok (KGS, ONG) OKE
• Pinnacle West (Arizona Public Service,
  Northwind) PNW
• Questar STR
• Salt River Project SRP
• Sempra SRE
• Sierra Pacific (Nevada Power) SRP
• Southwest Gas SWG
• Unisource UNS
• Washington Gas Light WGL

6
NEW AND REPLACEMENT FOOTAGE
7
WORKHOURS
8
Safety and QualityIs Our Number One Value

• NPLs objective is to provide our employees a
  safe working environment and leave a quality
  installation in the ground that meets or exceeds
  our customers requirements.

9
AGENDA

• THE ISSUE
• STATUS TODAY
• State Legislation
• LDC Policies and procedures
• Industry Association Involvement

10
THE OFTEN FORGOTTEN UNDERGROUND WORLD
11
MANY MORE UTILITIES ARE INSTALLED USING
TRENCHLESS TECHNOLOGY
12
POSSIBLE SCENARIO?
What could happen?
13
GAS LINE IN A 6 SEWER
14
GAS LINE SEWER LINE ROTARY-ROOTER DISASTER
15
(No Transcript)
16
LOW FREQUENCYHIGH SEVERITY
THE EXPOSURE
17
THE BIG CONCERNS

1. Catastrophic human tragedy
2. Huge costs

18
HOW OFTEN DOES THIS HAPPEN?
19
MINNESOTA

• 27 crossbores reported to the Minnesota Public
  Utilities Commission

20
PALO ALTO, CA CASE STUDY

• 4 Blocks were inspected
• 24 crossbores were discovered.

21
WHAT ARE THE ODDS?ANOTHER CASE STUDY
11,000 Laterals Were Inspected
250 Crossbores Identified And Repaired
2 of Sewer Laterals Were Crossbored.
22
A CITY CASE STUDY

• Just over 400 gas crossbores discovered over 200
  miles of sewer main lines
• One crossbore located at a school
• Averaged 2 per mile
• The utility mailed notices to over 50,000
  residences asking them to first call a special
  phone number if they had a sewer backup.

23
ANOTHER CITY

• Averaged 3 crossbores per mile of sewer mains
• One crossbore located at a hospital

24
SEWER LINES NEED TO BE MARKED,JUST LIKE ALL
OTHER UTILITIES
25
INSTALLATION SOLUTIONS

• All underground facilities, including sewer
  lines, should be marked by the entity that
  receives revenue from the facility.
• All new sewer laterals should be installed with a
  location device (i.e. tracer wire, marker balls,
  etc.).

26
AGENDA

• THE ISSUE
• STATUS TODAY
• State Legislation
• LDC Policies and procedures
• Industry Association Involvement

27
STATES THAT HAVE UPDATED ONE CALL LAWS

• ARIZONA
• GEORGIA
• MINNESOTA
• NEVADA
• OREGON
• VIRGINIA
• WISCONSIN

28
STATES WITH CHAMPIONS STARTING GRASS ROOTS
EFFORTS NEED SUPPORT

• CALIFORNIA
• COLORADO
• INDIANA
• TENNESSEE
• TEXAS
• WASHINGTON

29
GOOD STATE PROSPECTSIN NEED OF A CHAMPION

• ILLINOIS
• IOWA
• MARYLAND
• OHIO
• OKLAHOMA

30
the presence of unmarked and unidentified sewer
laterals is one of the most dangerous threats
posed in the underground pipeline
industry. DCA
31
AGENDA

• THE ISSUE
• STATUS TODAY
• State Legislation
• LDC Policies and procedures
• Industry Association Involvement

32
LDC POLICIES AND PROCEDURES

• LARGE WEST COAST LDC HAS POLICY OF REQUIRING AND
  ENFORCING THAT EVERY MAIN AND SEWER LATERAL BE
  DAYLIGHTED BEFORE EXCAVATING
• MIDWEST LDC HAS POLICY OF REQUIRING AND ENFORCING
  THAT All SEWERS ARE PRE-LOCATED (CAMERAD) BEFORE
  GAS IS INTRODUCED
• SOUTHEAST LDC HAS COMPLETED A SYSTEM REVIEW USING
  CAMERAS

33
LDC POLICIES AND PROCEDURES

• LARGE SOUTHWEST LDC HAS
• CAMERA PROGRAM TO IDENTIFY PAST INSTALLATION
  ISSUES
• POLICY REQUIRING AND ENFORCING THAT EVERY SEWER
  MAIN AND LATERAL BE LOCATED BEFORE EXCAVATING

34
The bottom line is we have time bombs that need
to be defused in the interest of public
safety. --Samuel T. Ariaratnam,
Ph.D.,P.E. Associate Professor Del Webb
School Construction Arizona State University
35
AGENDA

• THE ISSUE
• STATUS TODAY
• State Legislation
• LDC Policies and procedures
• Industry Association Involvement

36
INDUSTRY ORGANIZATION INVOLVEMENT

• AMERICAN GAS ASSOCIATION
• - BEST PRACTICES
• COMMON GROUND ALLIANCE
• - BEST PRACTICES
• DISTRIBUTION CONTRACTORS ASSOCIATION
• FINDING CHAMPIONS
• SUPPORTING CHAMPIONS VIA INFORMATION SHARING
• NATIONAL UNDERGROUND CONTRACTORS ASSOCIATION
• POSITION PAPER
• NORTH AMERICAN SOCIETY FOR TRENCHLESS TECHNOLOGY
• BEST PRACTICES

37
WHAT IS NEEDED

• LOCAL CHAMPIONS TO CHANGE STATE LAWS
• GOVERNMENT REGULATORY AGENCIES TO GET INVOLVED IN
  LEGISLATIVE CHANGES AND ENFORCEMENT
• MORE LDCS TO TAKE UP THE CAUSE
• FOR ALL TO UNDERSTAND THAT THIS IS NOT JUST A
  CONTRACTOR PROBLEM. IT IS AN INDUSTRY
  SAFETY PROBLEM.

38
NPL Policy
Trenchless Technology Policy for Sewer Lines
-- All sewer lines must be verified by some
physical process.
39
CONFIDENTIAL PROPRIETARY TRENCHLESS TECH
UTILIZED FOR GAS LINE INSTALLATIONS (Bore Card
Required by Each Crew at Each Address)
Conflict is defined as either crossing a sewer
line within 4 or paralleling one within 4.
Privately-Owned Sewer Systems (trailer park,
school, etc.) require 100 daylight.
40
NPL Construction Bore Card

• Subdivision or Project Name _____________________
  __________________
• Lot number or Street Address ____________________
  ________________________
• City and State __________________________________
  Zip Code__________
• Installation Date _________________ One Call
  Ticket ___________________
• Area Number _______ Job/Phase
  ______________________________
• Superintendent _____________________________
  _____________
• Type of Bore
• Pneumatic ? Directional Drill ?
• Other ? Explain _______________
• Type of Verification of Sewer Lateral ?
  Crossing ? Parallel
• Daylight ? Sonde ? Camera ? Fish Tape
  and Located ?(Within 4 Pothole)
• Averaged ? Other ? Explain
  ___________________________
• ________________________________

• (Requires Area Manager Signature/Printed Name)
• Type of Verification of Sewer Main ?
  Crossing ? Parallel
• Daylight ? Sonde ? Camera ?
• Average Depth using tape measure or manholes ?
• Averaged ? Other ? Explain
  ___________________________
• ________________________________


41
CORE VALUES
Always do what is right Treat all people with
respect Work together Tell the truth Take care of
your customers Be a good steward Keep it
simple Never quit Remember, we dig ditches Our
Core Values are the fundamental element to our
success.
42
(No Transcript)
43
QUESTIONS?
QUESTIONS?
