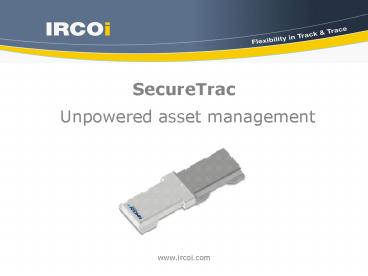

SecureTrac

1
SecureTrac

• Unpowered asset management

2
Challenges to non-powered asset tracking

• Environmental
• will it survive, operate reliable
• ROI
• long, reliable, unattended service life
• Area of operation
• single global geographic network
• Installation operation
• simple, low cost, non professional
• Least cost solution
• service hardware, no hidden charges
• Ease of use
• software, programming, volume of data
• Security
• jamming, spoofing, interception

3
Challenge
Securetrac
Evidence of challenge

• Temperature
• Dust
• Sand
• Gravel
• Vibration
• Shock
• Pressure wash
• Solar radiation
• Salt fog (spray)
• Humidity

Industrial range (-40C to 85C) SAE J1455 SAE
J1455 SAE J1455 SAE J1455 SAE J1455 SAE J1455 MIL
- 810 MIL - 810 MIL - 810
4
Securetrac simplex operation overview
5
Securetrac RFID operation overview
6
Operation overview

• Endpoint shading
• Unlike GEO systems, AXTracker devices communicate
  simultaneously to several satellites on 3 orbital
  LEO planes
• Global footprint
• Satellites visible beyond /-75 degrees latitude
• Data down linked to multiple ground earth
  appliqués
• Uniform global operations

• Service life
• GPS GSM / GPRS lack of coverage, hidden
  charges, power issues
• GPS GEO Shadowing as line of sight essential,
  bulky complex equipment
• LEO Simplex superior service life on
  internal, primary batteries
• Fully self contained, no cabling required fast,
  easy installation

7
Securetrac MMT Product features

• 4th generation of Tracker (Over 150,000 units
  deployed)
• Mounts on top of asset, also operates vertically
  (door or side)
• Installs in minutes, permanent and fast
• Totally wireless Advanced Functionality
• Wireless configuration, RFID sensors, local/wide
  area network (Internet)
• Long-life 7 YEAR battery operable, no wires for
  sensors or tracker
• Reconfiguration of unit upon automatic detection
  in yard
• Supports hand-held, wireless configuration of
  singles or groups of units
• Communicates over RF via RS232 Serial
  Communication
• Low profile. Smaller than door lock-bar
• Fits into ISO Container profiles.
• Cannot easily be Jammed or Spoofed
• High Value / Security Load Tracking, Data
  Security, Personnel Security.
• Stamps available for Development of Sensors
• Axle Weight, Temperature, Door Alarm, Panic
  Button, and more.

8
Core benefits

• High security
• Unjammable signal
• Untraceable
• Long life
• Battery up to 7 years
• Global coverage
• Worldwide satellite network
• Ease of use
• Easy installation, no wires
• Internet based software
• Anti theft
• Connection with alert central if desired so

9
Core benefits on trailer fleets

• Core Benefits
• Removal of Cost of Manual Asset Location
• Removal of personnel costs
• Improved Accuracy of location data
• Reduced mileage on tractor units trailers
• Improved Asset Utilisation
• Reduced fleet size ( commensurate costs)
• Increased contract volumes per Asset
• Reduced short term hire needs
• Ease of Service MOT Scheduling
• Longer VOSA Service Cycles
• Improved workshop utilization
• Reduced vehicle downtime
• Typically generates a 10 to 1 Return on
  Investment when deployed to manage trailer fleets

10
Basic functionality

• Time of day
• i.e 8 AM, 12AM, 6 PM
• Time interval
• i.e GPS position every hour
• Motion sensor
• i.e start/stop motion (ideal for security
  tracking)
• Combination
• i.e GPS position at 8AM, 8 PM but one per hour
  while moving

11
Ubiquitous coverage

• Single network covers Northern and part of
  Southern hemisphere
• No roaming charges or data interconnect problems
• High security network, cannot easily be jammed
  or spoofed

12
Benefits for mobile assets

• Benefits of Mobile Asset Management
• Increase asset utilization
• Improve operator efficiency
• Reduce theft
• Speed recovery of missing assets
• Reduce fuel costs, decrease down time
• Protect cargo from damage
• Enhance customer service
• Reduce insurance premiums

• Monitor any type of mobile asset, including
• Trailers
• SwapBodies
• Rail Wagons
• Plant / Equipment
• Maritime (Boats/Barges)
• Containers
• Reefers
• Military Vehicles
• Service Vehicles
• Mobile Homes

13
Sensors alarms
