Seamless Handoff Between Heterogeneous Wireless Networks

1

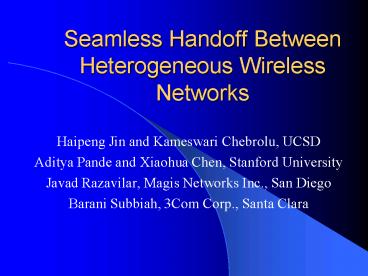

Seamless Handoff Between Heterogeneous Wireless
Networks

• Haipeng Jin and Kameswari Chebrolu, UCSD
• Aditya Pande and Xiaohua Chen, Stanford
  University
• Javad Razavilar, Magis Networks Inc., San Diego
• Barani Subbiah, 3Com Corp., Santa Clara

2
Introduction

• Future Wireless systems will be characterized by
  their heterogeneity.
• Multiple access technologies provide access to
  internet content.
• Indoor Environment 802.11, Bluetooth, HomeRF,
  IrDA etc.
• Outdoor Environment GPRS, CDMA2000, Satellite
  etc.
• Systems differ in terms of coverage, bandwidth,
  delay, cost etc.

3
Universal Wireless Communication System

• Anytime, Anywhere Coverage
• Three Layers of Coverage coverage decreases
  from top to bottom.
• Topmost Layer Satellite Systems
• Global Coverage
• Middle Layer Cellular Networks
• Metropolitan Areas
• Bottom Layer Local Area Networks
• Hot Spot Coverage
• A common IP based network will connect them to
  each other.

4
Requirements

• Multimode terminals
• Seamless inter-system (Vertical) handoff
• Service negotiation across different systems
• Seamless intra-system (Horizontal) handoff

5
Our Focus

• Vertical Handoff
• Identify issues related to handoff between WLAN
  and WWAN
• Requirements for handoff small delay, low packet
  loss
• Implement a testbed
• Network Layer Mobile IP with extensions
• Link Layer Handoff Algorithm

6
Mobile IP

• IETF standard , handles mobility across IP
  subnets at the network layer.
• Mobile Terminal (MT) communicates with other
  nodes using its home address.
• MT acquires care-of address and registers with
  Home Agent (HA).
• HA intercepts packets destined for the MT and
  tunnels them.
• Route optimization - avoids triangle routing
• CH learns the MTs current care-of address and
  tunnels packets directly.

7
Mobile IP
CH
Packets destined for mobile
Packets in reverse direction
HA
FA
Encapsulated packets
MT
8
Architecture

• Seamless handoff between WLAN (IEEE 802.11) and
  WWAN (CDMA PCS).
• Mobile IP based
• Extensions
• Before handoff, MT notifies old Foreign Agent
  (FA) to stop transmitting and buffer packets.
• Connection established to new FA
• New FA contacts old FA which passes the buffered
  packets.
• MT communicates with Correspondent Host (CH)
  through the new FA.

9
Handoff Algorithm
10
Details

• Based on measurement of WLAN signal strength,
  Signal-to-Noise Ratio (SNR)
• Connected to WLAN
• SNR above CThresh, MT stays connected to WLAN
• SNR falls below CThresh, MT scans for WWAN
  services and makes initial connections
• SNR falls below DThresh, MT will switch from WLAN
  to WWAN

11
Cont

• Connected to WWAN
• Searches for WLAN signal periodically
• SNR above CThresh, MT switches from WWAN to WLAN
• Two thresholds defined to avoid Ping-Pong
  effect
• An exponential moving average of the SNR is used.
• Only SNR of the WLAN is monitored as MT prefers
  WLAN because of the high data rate

12
Testbed
13
Testbed

• Testbed built at 3Com Corp
• A laptop equipped with 802.11 and CDMA PCS
  network interfaces served as MT.
• Protocol Mobile IP with extensions
• Home Agent was not implemented.
• Handoff related processes were implemented using
  C under linux platform.
• A text based application was used in the
  demonstration.

14
Results

• Handoff delay-time elapsed between the last
  packet received on the old connection to the
  first packet received on the new connection.
• Handoff delay was about 600ms when switching from
  WWAN to WLAN
• Handoff delay was about 1040ms when switching
  from WLAN to WWAN.

15
SNR measurement on WLAN
16
Switching from WLAN to WWAN
17
Delay on WLAN
18
Delay while handoff
19
Conclusions

• A handoff algorithm to provide seamless roaming
  between WLAN and WWAN was proposed.
• Field test results show
• No unnecessary handoffs
• Small packet loss and delay
