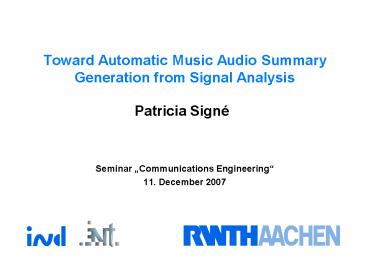

Toward Automatic Music Audio Summary Generation from Signal Analysis

1
Toward Automatic Music Audio Summary Generation
from Signal Analysis
Patricia Signé

• Seminar Communications Engineering
• 11. December 2007

2
Agenda

• Introduction
• State of the art
• Static vs Dynamic features
• Automatic Music Audio Summary generation
• Extraxtion of information from the signal
• Representation by states Multipass approach
• Conclusion
• Questions

3
Introduction

• Recent topic of interest driven by commercial
  needs (browsing of online music) documentation
  (browsing over archives) as well as music
  information retrieval.
• Storage of audio summary has been normalized, e.g
  SDS of the MPEG-7 standard
• Set of tools allowing the storage of sequential
  or hierarchical summaries
• Only few techniques exist allowing the automatic
  generation of audio summary. Big contrast to
  video and text where multiple methods or
  approaches exist for the automatic summary
  generation.
• Summary can be parameterized at three levels
• The type of the source
• The goal of the summary
• The output format

4
State of the art

• Sequences approach
• A similatity matrix applied to well-chosen
  features allows a visual representation of the
  structural information of a piece of music
  (Footes work on similarity matrix).
• Signal features used in this study are the Mel
  Frequency Cepstral Coefficients (MFCC).
• If a specific segment of music ranging from times
  t1 to t2 is repeated later in the music from t3
  to t4, the succession of features between both
  time periods is supposed to be identical.
• A key point of the actual works stands in the use
  of static features (MFCC) as signal observation.

5
Static vs Dynamic features

• Static features represent the signal around a
  given time, but does not model any temporal
  evolution. It implies that when looking for
  repeated patterns in the music , the necessity to
  find identical evolution of the features or to
  average features over a period of time in order
  to get states.
• Dynamic features model directly the temporal
  evolution of the spectral shape over a fixed time
  duration. The choice of the duration on which the
  modeling is performed, determines the kind of
  information that we will be able to derive from
  signal analysis.
• Features extraction

6
Static vs Dynamic features

• Using static features implies that, when looking
  for repeated patterns in the piece of music there
  is the necessity to find an identical evolution
  of the features.
• Advantages of using dynamic features
• The above mentioned problem of static features is
  solved with dynamic ones, i.e if some arrangement
  of the music masks the repetition of the initial
  melody sequence, repeated patterns will still be
  recognized.
• For an appropriate choice of the modelings time
  duration, the search for repeated patterns in the
  music can be far easier
• The amount of data can be greatly reduced for a
  4 minute long music, the size of the similarity
  matric is around 3400024000 in the case of the
  MFCC, it can be only 240240 in the case of the
  dynamic features.

7
Automatic Music Audio Summary generation

• Consider the musical piece as a succession of
  states. Each state representing a somehow similar
  information found in different parts of the
  piece,.
• States we are looking for are specific for each
  piece of music, no supervised learning is
  possible to find them.
• Use for the automatic audi summary generation an
  human like segmentation and structuring approach
  by subsequently analysing the data to process it.
• From the signal data
• Dynamic features extraction first listening
  allows the detection of variations in the music
  without knowing if a specific part is repeated
  later. This segmentation defines a set of
  templates which we call potential states
• Finding the structure by using previously created
  templates
• templates are compared to reduce redundancies
• the reduced set of templates is used as
  initialization for a K-Means algorithm
• The middle states, which are the output of the
  K-Mean algorithm are used for the initialisation
  of the Hidden Markov Model learning.
• finally, the optimal representation of the piece
  as a HMM state sequence is obtained by the
  application of the viterbi algorithm.

8
Automatic Music Audio Summary generation
HMM
Sequence chart
9
conclusion

• Automatic generation of music audio summary from
  signal analysis without using any other
  informations
• Consider the musical piece as a succession of
  states. Each state representing a somehow similar
  information found in different parts of the
  piece,
• Audio signal
• Derive dynamic features representing time
  evolution of the energy content in various
  frequency bands.
• From this observation derive a representation of
  the music on terms of states,
• Thanks!
