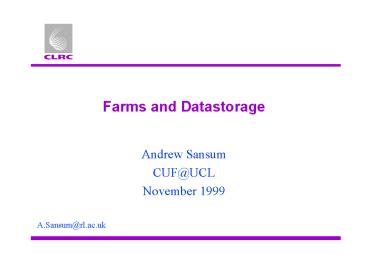

Farms and Datastorage

1
Farms and Datastorage

• Andrew Sansum
• CUF_at_UCL
• November 1999

A.Sansum_at_rl.ac.uk
2
What Im going to Talk about

• Linux Farm
• Sun Service/BABAR JREI
• HP Farm
• NT Farm
• Storage
• New Year Plans
• Security
• Lifetime of HP Service

3
HEP Unix Services
?
100 Megabit Switched Network
4
Linux

• Full Production Service Started in August
• 20 Dual Processors in production
• Stability is now very good - only a couple of
  minor problems
• Occasional hangs on Front end - caused by ARLA
  (AFS)
• Occasional crashes on csflnx02 - caused by
  network load
• System monitoring and operations procedures in
  place
• Even a User Guide!

5
H/W and Software Configuration

• SuperMicro Motherboard (with SCSI H/W
  monitoring)
• Dual Pentium II 450
• 10GB 5400rpm IDE HDA
• 256MB ECC memory
• 100Mbit Ethernet (tulip or Intel)

• Redhat 5.2 (2.0.36)
• CERN ASIS (5.1 vsn)
• Generic NQS 3.50.5
• ARLA 0.20-1 (AFS)
• lm_sensors (monitoring)

6
Good Take Up

• Production Service for H1 and ZEUS
• Several theory users are heavy users
• ATLAS, CMS and ALEPH codes also running
• CDF and Minos have code ported
• ANTARES - code now compiles on Linux
• OPAL Planning to use Linux service soon
• Babar working on Linux release for New Year.
• Runs close to capacity for significant periods.

7
(No Transcript)
8
ATHLON Benchmarking

• Evaluation 600MHz Athlon (aka AMD K7) system
  available on CSF for several weeks.
• Configuration
• 600MHz Athlon
• Microstar 6167 motherboard
• 128 MB 100MHz memory
• Athlon interesting because
• Superior Floating Point Performance
• Improved memory -gt CPU bandwidth (200MHz
  effectively)
• Probably cheaper - Faster CPUs at the moment
• Multiprocessor options look interesting

9
Benchmark Results

• Credits Peter Faulkner (H1), John Baines
  (ATLAS), Stefano Moretti (RAL theory), Peter
  Richardson (Oxford Theory), Glenn Patrick (CMS)
• Caviats We are not exploiting Full H/W
  potential
• Compiler optimised for Pentium H/W not exploiting
  the multiple floating point units. New compilers
  coming.
• Standard 100MHz memory - not DDR (Double Data
  Rate)

10
Benchmark Results Athlon 600MHz / Pentium 450
11
Athlon Benchmark Conclusion

• Good speedup already for floating point
  application
• Most HEP codes see no speedup over and above
  clock frequency - mainly integer based
• We will wait for dual/quad processor
  motherboards, Faster memory and improved
  compilers and try again.
• Upgrade farm with Pentium III 600MHz dual
  processors

12
PLANS

• Order 30 Dual Pentium 600 Nodes ASAP. In service
  early next year.
• Provided demand exists and suitable H/W is
  available - schedule the next capacity increase
  for early in FY 2000 - April/May probably.
• O/S Upgrade. What should we upgrade to and when.
  RH 5.2 is old but some experiments still need it.

• Evaluate new batch system - What do people think
  about NQS??

13
Linux






Growth at Current Spend
Predicted Profile of Linux Capacity
14
Conclusion (Linux)

• Farm is stable and well used
• Further upgrade late this year.
• Capacity will soon exceed ten times HP capacity
• Will continue to grow
• Big thank you to Alex Martin and Paul Dixon at
  QMW for lots of useful advice!

15
Sun Service and BaBar JREI Disk Server

• We already run Sun Enterprise 3500 (4 CPU),
  mainly used by Babar but a few Atlas and CMS
  users.
• BaBar awarded large JREI award
• A central server at RAL with several TB which
  will receive data from SLAC.
• Server and disk in 10 UK universities
• Co-operating databases across the UK
• One extra staff member to achieve this

16
Actual Equipment

• RAL

• 5 Universities (Bristol, Edinburgh,Imperial,
  Liverpool, Manchester) with

• 4 Universities (Birmingham, Brunel, QMW, RHBNC)
  with

17
Setup at RAL (early experience)

• Equipment delivered and installed
• Filesystems limited to 1TB
• used 4xA1000 gt 720GB
• 7 Million events brought from SLAC
• E3500 acts as a front-end, E4500 holds data, both
  runs batch jobs
• E4500 also AMS server to other systems.
• LSF Batch System on 2 Suns.

18
OOSS

• Andy Hanushevsky (SLAC) visited in September and
  installed his OOFS and OOSS
• This provides a layer which interfaces
  Objectivity to the Atlas Datastore (cf HPSS at
  SLAC)
• All the disk space runs under the control of OOSS
  which acts as a cache manager

19
NT Farm Update

• New hardware commissioned - October
• 10 dual-CPU (450MHz) PCs
• Batch capacity increased fivefold
• 9 of new batch of PCs
• total 27 CPUs - 9 _at_ 200 MHz 18 _at_ 450 MHz
• New Front-end
• 1 PC
• running NT Terminal Server
• Operating - but not yet in production service
• Issues with application installation in
  multi-user environment

20
LHCb Work

• LHCb now major user
• Ported simulation environment to NT Farm
• web front-end
• Java servlets build scripts submit jobs
• Simulation code SICB running
• 1000 events/job written to RAL datastore
• 100k events generated in testing
• now entering first production phase
• Can use full capacity of farm
• about 100k events/week if queues kept full

21
Compute Farms HP

• Farm remains well used, however I expect to see
  demand fall shortly as move to Linux proceeds.
• Will discuss our plans to close the HP farm later
• Moving HP service out from core of cluster. No
  longers acts as master fileserver node.
• Recent O/S upgrade for Y2K compliance
• More system development shortly to add disk
  mirroring for interactive service

22
(No Transcript)
23
(No Transcript)
24
Disk Space

• Home filesystem moved to new dedicated disk
  server. Improved data integrity (RAID 5 Sun A1000
  disk array). Disk quotas expanded for everyone.
  Performance excellent.
• Half Terrabyte disk space available for
  experiments data storage. Contact us if you have
  requirement.
• Start work shortly on new cheap Linux/IDE disk
  server for cheaper data storage. Testers wanted
  soon!

25
Tape Service

• Possible major upgrades to the Tape Robots are
  being considered.
• Aware of long term experiment requirements

26
New Year Closedown

• CSF service will close from afternoon 31st
  December.
• Service will resume Tuesday 4th January

27
Security

• Network security situation continues to
  deteriorate.
• New RAL Site security Policy
• Places many obligations on system managers
• Some changes to users working practices will be
  needed.
• Most significant change
• LOAN OF PASSWORDS AND SHARED IDS WILL NEED TO BE
  MANAGED DIFFERENTLY

28
Conclusions

• Lots of changes taking place in the Service
• Linux will grow rapidly
• Major new 5TB disk server for Babar. Also begin
  looking at cheap disk server solutions.
• NT farm increased in capacity and running
  production work for LHCB collaboration
• HP Farm being moved from the heart of the
  enterprise.
• Planning for HP farm rundown commencing

29
RUNDOWN OF HP SERVICEWHY?WHAT?WHEN?

• Andrew Sansum

30
WHY CLOSE THE HPS

• By New Year Linux capacity will be at least ten
  times HP capacity.
• Bulk of experiments have either ported or will
  soon port their code.
• Fewer and fewer experiments support HP-UX
• Because of need to maintain security we are
  unable to freeze service.
• Thus while HPs continue to run they will consume
  manpower which would otherwise go into new
  developments.

31
What Should We Close

• Irrespective of eventual closedown dates we will
  reduce batch capacity if load falls.
• Raises average performance of cluster and reduces
  system management overhead.
• Question is when should we switch off the last of
  the machines

32
When should we close the HPs

• Not decided yet! Waiting for comments!!
• So far a number of people have stated that their
  migration to Linux is not finished but they
  expect to be completed within 6 months to one
  year.
• Two people have said its useful having HPs to
  test code releases but only if someone else had a
  real requirement.
• One experiment states that they have a continuing
  requirement (duration unspecified)

33
Conclusion

• We will run the service while there is a genuine
  demand that CNAP believe is worth committing the
  effort to support
• Wont close the service if sufficient demand
• So far very little evidence of such a need
• Expect service to be at least severely truncated
  within 12 months.
• Hopefully make announcement before Christmas
