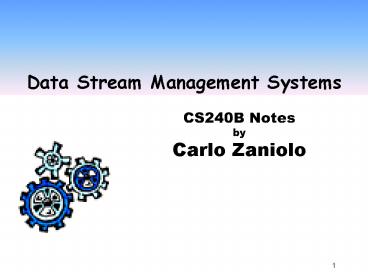

Data Stream Management Systems

1
Data Stream Management Systems

• CS240B Notes
• by
• Carlo Zaniolo

2
Data Streams

• Continuous, unbounded, rapid, time-varying
  streams of data elements
• Occur in a variety of modern applications
• Network monitoring and traffic engineering
• Sensor networks, RFID tags
• Telecom call records
• Financial applications
• Web logs and click-streams
• Manufacturing processes
• DSMS Data Stream Management System

3
Many Research Projects

• Amazon/Cougar (Cornell) sensors
• Aurora (Brown/MIT) sensor monitoring, dataflow
• Hancock (ATT) Telecom streams
• Niagara (OGI/Wisconsin) Internet DBs XML
• OpenCQ (Georgia) triggers, view maintenance
• Stream (Stanford) general-purpose DSMS
• Tapestry (Xerox) pubish/subscribe filtering
• Telegraph (Berkeley) adaptive engine for
  sensors
• Tribeca (Bellcore) network monitoring
• Stream Mill (UCLA) - power extensibility
• Gigascope ATT Labs Network Monitoring

4
The (Simplified) Big Picture
Clients
Streamed Result
Server
DSMS
Scratch Store
Stored Relations
5
Databases vs Data Streams

• Database Systems
• Model persistent data
• Table setbag of tuples
• Updates All
• Query transient
• Query Answer exact
• Query Eval. multi-pass
• Operator blocking OK
• Query Plan fixed

• Data Stream Systems
• Model transient data
• Infinite sequence of tuples
• Updates append only
• Query persistent
• Query Answer Often approx
• Query Eval. one-pass
• Operators unblocking only
• Query Plan adaptive

6
Research Challenges

• Data Models
• Relational Streams first, XML streams important
  too
• Tuple-Time Stamping
• Order is important
• Windows or other synopses
• Query Languages SQL or XQUERY extensions
• Blocking operators and Expressive Power
• Query Plans
• Optimized scheduling for response time or memory
• Quality of Services (QoS) Approximation
• Load shedding, sampling
• Support for Advanced Applications
• Data Stream Mining

7
Data Models

• Relational Data Streams
• Each data stream consists of relational tuples
• The stream can be modelled as an append-only
  relation
• But repetitions are allowed and order is very
  important!
• Order based on timestampsor arrival order
• Streaming XML Data.
• A stream of structured SAX elements

8
Timestamps

• Data streams are (basically) ordered according to
  their timestamps
• The meaning of windows, unions an joins is based
  on timestamps
• External
• Injected by data source
• Model real-world event represented by tuple
• Tuples may be out-of-order, but if near-ordered
  can reorder with small buffers
• Internal
• Introduced as special field by the DSMS
• Approx. based on the time they arrived
• Missing (called latent in Stream Mill)
• The system assigns no timestamp to arriving
  tuples,
• But tuples are still processed as ordered
  sequences
• By operators whose semantics expects timestamps
• Thus operators might instantiated timestamps
  as/when needed

9
Data Stream Query Languages

• Continuous queries and
• Blocking Operators

10
Query Operators Sample Stream
Traffic (sourceIP, source IP address
sourcePort, port number on source destIP,
destination IP address destPort,
port number on destination length , length
in bytes time time stamp )
11
Blocking Query Operators

• No output until the entire input has been
  seeni.e., the last tuple in the input, often
  detected after we hit the EOF.
• Streams input never ends thus blocking
  operators cannot be used as such
• Traditional SQL aggregates are blocking
• Many SQL operators have DBMS implementations
  that are blocking but are not intrinsically
  blocking
• group by, sort join can be implemented in
  blcoking and nonblocking ways
• Other operators are intrinsically blocking
• Can we formally characterize which is which?
• We will see that nonblocking operators are the
  monotonic ones

12
Problematic Operators for Data Streams

• Blocking query operatorsi.e., those that must
  see everything in the input before they can
  return anything in the output
• NonBlocking query operators are those that can
  return results now, without seeing the rest of
  the stream
• Selection and projection are nonblocking
• Set Difference, and Traditional aggregates are
  blocking
• Continuous aggregates are not.

13
Aggregate Invocation two Forms
G grouping attributes, F1,F2 aggregate
expressions

• Traditional
• select G, F1 from S where P group by
  G having F2 op J
• With windows (SQL2003 OLAP Functions)
• traffic (sourceIP, sourcePort, destIP , destPort,
  length, Time)select sourceIP, Time,
  avg(lenght) over(order by Time,
  partition by sourceIP 50 rows
  preceding)
• Cumulative (running) window
• ... over(order by Time,
  partition by sourceIP unlimited preceding)

14
Aggregate Function Properties

• distributive sum, count, min, max
• algebraic AVG
• holistic count-distinct, median
• On-line aggregates such as exponentially decaying
  AVG
• User-Defined Aggregates (UDAs)
• Sliding window invocation 12. Efficient
  computation for memory and CPU
• Sliding window invocation on 3 ?
• Continuous window on these ? Yes, also for 5.
• UDAs can be similar to any of those

15
Avoiding Blocking Behavior

• Windows aggregates on a limited size window are
  approximate and nonblocking
• DSMS do windows of all kinds
• Sliding windows (same as OLAP functions)
• Tumbles restart every new window (traditional
  definition)
• Panes the window is broken up into panes
• Punctuation Tucker, Maier, Sheard, Fegaras
• Assertion about future stream contents
• Unblocks operators, reduces state
• Construct used for avoiding blocking are also
  useful for avoiding infinite memory

16
Joins

• General case problematic on streams May need to
  join arbitrarily far-apart stream tuples
• Equijoin on timestamps is easy to computebut
  not very useful
• Majority of work focuses on joins between one
  stream and a window specified on the other
• The symmetric case also common
• Traffic2 as B window TB
• Multi-joins less common but possible.

Select A.sourceIP, B.sourceIP from Traffic1 as A
window TA, Traffic2 as B where A.destIP
B.destIP
17
Join of Stream S with a Table T (where T is a
DB relation or a Window on a Stream)

• When a new tuple z with timestamp ts(z) arrives
  in S, join it with all the tuples in T.
• ts(z) is the timestamp of tuples so produced
• If T is a window on a stream S
• T must contain all the tuples up to ts(z)
  included cumulative window on S
• But we do not have infinite memory so we must
  approximate T with a synopsis. E.g., 30 minutes
  preceding

18
Multi-way Sliding Window Joins

• Evaluation of n-way sliding window joins queries
• n streams with associated sliding windows
• continuously evaluate the joins of all n windows
• Two natural joins strategies
• eager join is evaluated each time a new tuple
  arrives in any of the input streams
• lazy join is evaluated with some pre-specified
  frequency, e.g., every t time units
• Computation incremental, as in differential
  fixpoint of recursive rules.

19
Query Optimizationand Scheduling

• Sceduling to minimize response time or minimize
  memoryno real change in CPU time
• Optimization based on sharing, query plans,
  operators, buffers,

20
A Query Plan
Q1
Q2
?
?
Scheduler Given query plan and selectivity
estimates Schedule tuples through operator
chains
?
Stream3
Stream1
Stream2
21
Schedulers and QoS Metrics

• Round Robin (RR) is perhaps the most basic
• operators in a circular queue are given a fixed
  time slice.
• Starvation is avoided, but little adaptivity
• FIFO takes the first tuple in input and moves it
  through the chain
• Minimal latency, poor memory
• Greedy Alogrithms
• Buffers with most tuples first
• Tuples that waited longest first
• Operators that release more memory first

22
Memory Optimization on a ChainBabcock, Babu,
Datar, Motwani
Output
s1
best slope
s3
selectivity 0.0
s2
Net Selectivity
s2
selectivity 0.6
starvation point
s3
s1
selectivity 0.2
Time
Input
23
Main ideas

• Operators are thought of as filters which
• Operate on a set of tuples
• Produce s tuples in return
• s ? selectivity of an operator
• If s 0.2 we can interpret the value in two ways
• Out of every 10 tuples, the operator outputs 2
  tuples
• If the input requires 1 unit of memory, the
  output will require 0.2 units of memory

24
The lower envelope

• Imagine there is a line from this point to every
  operator point (ti, si) to its right
• The operator that corresponds to the line with
  the steepest slope is called the steepest
  descent operator point

25
The Lower Envelope

• By starting at the first point (t0, s0) and
  repeatedly calculating the steepest descent
  operator point we find the lower envelope P for
  a progress chart P
• Notice that the slopes of the segments are
  non-increasing
• The operators in each segment form a chain.
• FIFO within chain
• Greedy across chains

26
Scheduling

• Chain minimizes memory be required in special
  overload situations
• But increases response time (latency)
• Typically though we want to optimize for response
  time
• Different scheduling protocols optimize different
  objectives latency, inaccuracy, memory use,
  computation, starvation,
• Computation complexity is independent from
  scheduler
• Different policies give significantly different
  results only for bursty loads
• Research Issues
• Complex query plans (beyond simple paths)
• Minimization of response time
• Adaptive strategies how do we switch between the
  two to adapt to load changes?

27
Optimization by Sharing

• In traditional multi-query optimization
• sharing (of expressions, results etc) among
  queries can lead to improved performance
• ExamplesSimilar issues arise when processing
  queries on streams
• sharing of query operators and expressions
• sharing of sliding windows

28
Multi-query Processing on Streams

• Opportunities for optimization when windows are
  shared---e.g
• select sum (A.length)
• from Traffic1 A window 1hour, Traffic2 B
  window 1 hour
• where A.destIP B.destIP
• select count (distinct A.sourceIP)
• from Traffic1 A window 1 min, Traffic2 B
  window 1 min
• where A.destIP B.destIP
• Strategies for scheduling the evaluation of
  shared joins
• Largest window only
• Smallest window first
• Process at any instant the tuple that is likely
  to benefit the largest number of joins (maximize
  throughput)

29
Shared Predicates Niagara, Telegraph
gt
7
Predicates for R.A
1
11
R.A gt 1 R.A gt 7 R.A gt 11 R.A lt 3 R.A lt 5 R.A
6 R.A 8 R.A ? 9
Agt7
Agt11
Agt1
Tuple A8
lt
3
Alt3
Alt5

6 8
?
9
30
QoS and Load Schedding

• When input stream rate exceeds system capacity
• a stream manager can shed load (tuples)
• Load shedding affects queries and their answers
• Introducing load shedding in a data stream
  manager is a challenging problem
• Random and semantic load shedding

31
DSMSQuality of Service (QOS)

• Approximation and
• Load Shedding

32
QOS via Synopses and Approximation

• Synopsis bounded-memory history-approximation
• Succinct summary of old stream tuples
• Like indexes/materialized-views, but base data is
  unavailable
• Examples
• Sliding Windows
• Samples
• Sketching techniques
• Histograms
• Wavelet representation
• Approximate Algorithms e.g., median, quantiles,
• Fast and light Data Mining algorithms

33
QoS and Load Schedding

• When input stream rate exceeds system capacity
• a stream manager can shed load (tuples)
• Load shedding affects queries and their answers
  drop the tasks and the tuples that will cause
  least loss
• Introducing load shedding in a data stream
  manager is a challenging problem
• Random load shedding or semantic load shedding

34
XML Data Streams
35
XML Data Streams Applications

• An XML data stream is a sequence of tokens
• Data and application integration
• Distributed monitoring of computing systems
• Message-based web services
• Purchase orders, retail transactions
• Personalized content delivery

36
XML Streams Data Model

• XML data tree structure
• ltPurchase_Docgt
• ltPR_Number val 50/gt
• ltSupp_NamegtABClt/Supp_Namegt
• ltAddressgt
• ltCitygtFlorham Parklt/Citygt
• ltStategtNew Jerseylt/Stategt
• lt/Addressgt
• ltLine_Itemsgt
• ltItemgt
• ltPart_Number val 1050/gt
• ltQuantity val20/gt
• lt/Itemgt

• Data stream SAX events
• element Purchase_Doc anyType
• element PR_Number anyType
• attribute val anySimpleType
• chardata 50
• end-attribute
• end-element
• element Supp_Name anyType
• text ABC
• end-element

37
XML Query Languages

• XML query languages
• Xquery, XSLT, Xpath
• Declarative matching of structured data and text
• Easy restructuring to meet needs of data
  consumers

38
XML Streams research Issue

• Efficient Processing of single/multiple queries
  (e.g., Xfilters/Yfilters)
• Blocking operators/constructs in XQuerye.g.,
  XQuery new function definition mechanisms are
  blocking
• Integration of relational and XML DSMSjust like
  relational and XML DBMS are now being intergrated.

39
Prototype Systems

• Aurora (Brandeis, Brown, MIT) CCC02
• Gigascope (ATT) CJSS03
• Hancock (ATT) CFP00
• STREAM (Stanford) MWA03
• Telegraph (Berkeley) CCD03
• Stream Mill UCLA

40
Aurora (Brandeis, Brown, MIT)

• Geared towards monitoring applications (streams,
  triggers, imprecise data, real time requirements)
• Specified set of operators, connected in a data
  flow graph
• Optimization of the data flow graph
• Three query modes (continuous, ad-hoc, view)
• Aurora accepts QoS specifications and attempts
  to optimize QoS for the outputs produced
• Real time scheduling, introspection and load
  shedding

41
ATT Hancock and Gigascope

• Hancock A C-based domain specific language
  which facilitates signature extraction from
  transactional data streams.
• Signature charetizes behavior of customer or
  services
• Support for efficient and tunable representation
  of signature collections
• Support for custom scalable persistent data
  structures
• Elaborate statistics collection from streams
• Gigascope SQL based DSMS for monitoring of
  network data

42
STREAM Stanford Uiversity

• General purpose stream data manager
• CQL (continuous query language) for declarative
  query specification
• Consider query plan generation
• Resource management
• Operator scheduling
• Static and dynamic approximations

43
Telegraph UCB

• Continuous query processing system
• Support for stream oriented operators
• Support for adaptivity in query processing
• Various aspects of optimized multi-query stream
  processing

44
Commercial Systems

• Sybase publish-subscribe using MQ (Memory
  Queues)
• MQs are in-memory tables processed using active
  rules and stored procedures
• Similar solutions in Oracle and Teradata. But
  IBM's MQSeries, Microsoft's MSMQ are web-service
  oriented Java Message Service (JMS), WebSphere,
  CORBA.
• Two DSMS startups
• CORAL8 http//coral8.com/
• Streambase http//www.streambase.com/

45
More Tutorial Talks

• Brian Babcock, Shivnath Babu, Mayur Datar, Rajeev
  Motwani,Jennifer Widomhttp//theory.stanford.edu/
  rajeev/pods-full-talk.ppt
• Nick Koudas and Divesh Srivastava. Data stream
  query processing. Tutorial presented at
  International Conference on Very Large Databases
  (VLDB), 1149, 2003. PDF talk slides (PDF)
• Nick Koudas et al. Matching XML Documents
  Approximately (with S. Yahia and D. Srivastava)
  Tutorial delivered at ICDE 2003
• Nick Koudas et al. Stream Data Management
  Research Directions and Opportunities. Invited
  Talk at IDEAS 2002.
• Nick Koudas et al. Mining  Data Streams (with S.
  Guha) Invited Tutorial delivered at PAKDD 2003

46
Implementation Approaches for Continuous Queries
on Streaming XML

• Automata-based techniques
• XFilter AF00 finite state machine per path
  expression
• XTrie CFGR02 shares common sub-paths of PC
  paths
• YFilter DF03 single NFA for all path
  expressions
• GMOS03 single DFA, limitations on flexibility
• XPush GS03 pushdown automaton for tree
  patterns
• Index-based techniques
• MatchMaker LP02 shared tree patterns
• IndexFilter BGKS03 shared path expressions,
  comparison

47
XML Stream Processing Key Ideas

• Obtain bindings of for clause path expression
  variables
• Ordered sequence, no duplicates
• Filter bindings using where clause path
  expression predicates
• Existential check suffices
• Compute bindings of return clause path
  expressions
• Ordered (possibly null) sequence
• Goal Efficient matching/binding of XML path
  expressions
• Very large number of path expressions
