Managing Metadata for Statistical Models

1

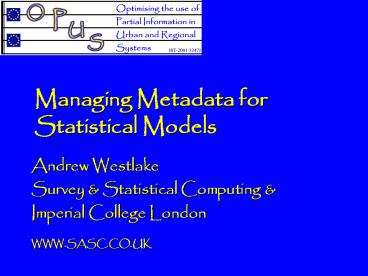

Managing Metadata for Statistical Models

• Andrew Westlake
• Survey Statistical Computing
• Imperial College London
• WWW.SASC.CO.UK

2
Introduction

• OPUS project
• Optimising the use of Partial information in
  Urban and regional Systems
• Strong Transport bias in partners, but aims are
  generic
• Data Integration through Statistical Models
• Describe main concepts
• Meta-data Management
• Use existing ideas (cf MetaNet)
• Extensions into representation of Statistical
  Models
• Structure and Concepts
• Including construction process
• Support for users of results from the models
• Provide information about Provenance and
  Reliability of results
• Explore tools to deliver this information
  effectively

3
OPUS - objectives

• Data Integration the Holy Grail
• Can we bring together information from multiple
  datasets
• Can we combine what we already know with evidence
  from new datasets
• In ways that are
• Coherent
• Formalised
• Transparent
• Central role of the Statistical Model
• Model Knowledgei Evidencei ? Model
  Knowledgei1

4
Examples of Multiple Data Sources

• UK Crime Statistics
• Household Surveys British Crime Survey
• Police Statistics Reported Crime
• Different selection mechanisms for who responds
  and what is reported
• Transport for London
• Household Surveys (LATS)
• On-Board surveys (RODS, BODS)
• Road-side counting and interviews
• Automatic sensors ticket gates, road loops
• In-car tracking
• Census
• Different sources give different partial but
  overlapping views of the same underlying system

5
Model-centred approach

• Formulate Statistical Model using domain
  understanding
• Yields Likelihood for data observations
• Optimise Likelihood to reduce Uncertainty about
  model Parameters

6
Information about Statistical Models

• Provenance and Reliability of Results from Models

• Alongside substantive results/estimates
• Taken from meta-data
• Why is it needed?
• Because model results depend on the model and the
  fit
• Aimed at subsequent users of results
• Provide confidence and understanding
• Different needs for different user skills
• Storage
• Structure, implemented as XML Documents
• Presentation
• Guided or ad hoc exploration
• Specialised requirements in some domains

7
OPUS Meta-data Components

• Multiple Statistical Models of any system
• Focus on different sub-systems
• Different levels of abstraction
• Functional Form of Model Specification
• Variables, Parameters
• Derivations, constraints and stochastic
  relationships
• Fitting Steps
• Links to datasets how are Data variables linked
  to Model ones
• Methods used and outcomes
• Knowledge States
• Knowledge (uncertainty distributions) for
  Parameters
• Each Fit produces a new State

8
Modelling in Opus
System under study
Dissemination System
Multiple Models
SpecificationsProcesses
StatModel
Capture
Presentation
Knowledge
Many Users
Many Modellers
9
StatModel Design

• UML model of components and structure
• Use hyperModel from XMLmodeling.com
• Includes Profile for XML Schema
• Generate XML Schemas
• Control entry in XML editors, e.g. XML-Spy, for
  model instances
• Basis for presentation design
• XSL/T for fixed presentation
• Generic for whole models
• Specific for special contexts
• Web components for dynamic presentation
• E.g. Model exploration through Influence Diagram
• C.f. Statistical Presentations in Nesstar

10
Main components of Model
11
Model Fit

• Creates a State
• May be based on a State
• Use of Data
• Links to Datasets
• Mapping for Variables

12
Model State

• A Knowledge Dist for each Parameter not defined
  through a relationship
• Bayesian Posterior knowledge from MCMC is always
  an Empirical Distribution
• Dependencies possible through multivariate
  distributions

13
Creating StatModel Instances

• Not main focus of project
• Focus on structure and presentation
• Mostly by hand
• Use XML-Spy
• Formulator for MathML expressions
• Template files
• XML Forms applications for some parts
• E.g. Altova Authentic, MS InfoPath
• Done by expert in discussion with modeller
• Ideally
• Statistical Model Design application creates
  Model Specification
• Fitting applications read specification and
  create Fit and State meta-data

14
How? Metadata Capture
Modeller
StatModelUML
StatModelXMLDocuments
ValidatingXML Editoreg XML Spy
Create
Structure
Rules
StatModelXSD schema
Semantics
SpecialisedXML Editoreg Authentic
View/Edit
Rules and Layout
Export
Style sheet
ModellingApplicationeg WinBUGSDesign,
Fit,Results
Import
OtherApplicationeg MLWin
Concepts, Semantics and Structure
Exchange
15
Presentation Examples

• London 2
• Stylesheet listings, mathematics
• Model Diagram, Process diagram
• WP08
• Model Sequence
• WP11
• Understanding complex WinBUGS
• Show Doodle and Script in WinBUGS
• Documentation in StatModel
• Influence Diagram in StatModel

16
Conclusions

• Propose structure for storing information about
  Statistical Models
• Seems to work well for us
• Refinement and application outside Opus needed
• For end users, so must address presentation
• Some basic tools demonstrated
• Specialised solutions for application domain
  usually needed
• Meta-data capture is difficult issue
• Integration into modelling applications
• Encourage modellers to document and explain their
  choices
• Much still to do
• www.opus-project.org www.sasc.co.uk

17
Acknowledgements

• Rajesh Krishnan, Imperial College London
• Implementation of the web application
• Miles Logie, Minnerva
• Saikumar Chalisani, ETH Zürich
• Contribution to initial ideas about StatModel
• Software Used
• hyperModel XMLModeling.com, David Carlson
• UML modelling for XML Schema
• Formulator - www.hermitech.ic.zt.ua
• MathML editor, integrates with XML Spy
• XML Spy www.altova.com
• XML Editor and associated applications
• JGraph - www.jgraph.com
• Java Graph Visualization and Layout

18
