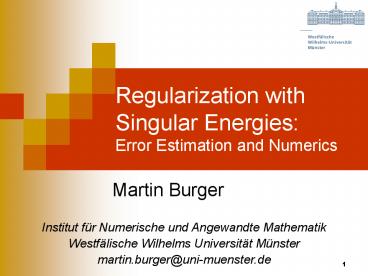

Regularization with Singular Energies Error
Estimation and Numerics

• Martin Burger

Institut für Numerische und Angewandte
Mathematik Westfälische Wilhelms Universität
Münster martin.burger_at_uni-muenster.de
TexPoint fonts used in EMF. Read the TexPoint
manual before you delete this box. AAAAA
2
Collaborations

• Stan Osher, Jinjun Xu, Guy Gilboa (UCLA)
• Lin He (Linz / UCLA)
• Klaus Frick, Otmar Scherzer (Innsbruck)
• Don Goldfarb, Wotao Yin (Columbia)

3
Introduction

• Classical regularization schemes for inverse
  problems and image smoothing are based on Hilbert
  spaces and quadratic energy functionals
• Example Tikhonov regularization for linear
  operator equations

4
Introduction

• These energy functionals are strictly convex and
  differentiable standard tools from analysis and
  computation (Newton methods etc.) can be used
• Disadvantage possible oversmoothing, seen from
  first-order optimality condition
• Tikhonov yieldsHence u is in the range of
  (LL)-1A

5
Introduction

• Classical inverse problem integral equation of
  the first kind, regularization in L2 (L Id), A
  Fredholm integral operator with kernel k
• Smoothness of regularized solution is determined
  by smoothness of kernel
• For typical convolution kernels like Gaussians,
  u is analytic !

6
Image Smoothing

• Classical image smoothing data in L2 (A Id),
  L gradient (H1-Seminorm)
• On a reasonable domain, standard elliptic
  regularity implies
• Reconstruction contains no edges, blurs the
  image (with Green kernel)

7
Sparse Reconstructions ?

• Let A be an operator on (basis
  repre-sentation of a Hilbert space operator,
  wavelet)
• Penalization by squared norm (L Id)
• Optimality condition for components of u
• Decay of components determined by A. Even if
  data are generated by sparse signal (finite
  number of nonzeros), reconstruction is not sparse
  !

8
Error estimates

• Error estimates for ill-posed problems can be
  obtained only under stronger conditions (source
  conditions)
• cf. Groetsch, Engl-Hanke-Neubauer, Colton-Kress,
  Natterer. Engl-Kunisch-Neubauer.
• Equivalent to u being minimizer of Tikhonov
  functional with data
• For many inverse problems unrealistic due to
  extreme smoothness assumptions

9
Error estimates

• Condition can be weakened to
• cf. Neubauer et al (algebraic), Hohage
  (logarithmic), Mathe-Pereverzyev (general).
• Advantage more realistic conditions
• Disadvantage Estimates get worse with f

10
Singular Energies

• Let A be the identity on
• Nonlinear Penalization by
• Optimality condition for components of u
• If rk is smooth and strictly convex, then Taylor
  expansion yields

11
Singular Energies

• Example becomes more interesting for singular
  (nonsmooth) energy
• Take
• Then optimality condition becomes

12
Singular Energies

• Result is well-known soft-thresholding of
  wavelets Donoho et al, Chambolle et al
• Yields a sparse signal

13
Singular Energies

• Image smoothing try nonlinear energy
  for penalization
• Optimality condition is nonlinear PDE
• If r is strictly convex usual smoothing
  behaviour
• If r is not convex problem not well-posed
• Try singular case at the borderline

14
Total Variation Methods

• Simplest choice yields total variation method
• Total variation methods are popular in imaging
  (and inverse problems), since
• they keep sharp edges
• eliminate oscillations (noise)
• create new nice mathematics

15
ROF Model

• ROF model for denoising
• Rudin-Osher Fatemi 89/92, Acar-Vogel 93,
  Chambolle-Lions 96, Vogel 95/96,
  Scherzer-Dobson 96, Chavent-Kunisch 98,
  Meyer 01,

16
ROF Model

• Optimality condition for ROF denoising
• Dual variable p enters !
• Subgradient of convex functional

17
ROF Model
Reconstruction (code by Jinjun Xu)
clean noisy ROF
18
ROF Model

• ROF model denoises cartoon images resp. computes
  the cartoon of an arbitrary image

19
Numerical Differentiation with TV

• From Master Thesis of Markus Bachmayr, 2007

20
Singular energies

• Methods with singular energies offer great
  potential, but still have some shortcomings
• difficult to analyze and to obtain error
  estimates
• systematic errors (clean images not
  reconstructed perfectly)
• computational challenges
• some extensions to complicated imaging tasks are
  not well understood (e.g. inpainting)

21
Singular energies

• General problem
• leads to optimality condition
• First of all dual smoothing, subgradient p is
  in the range of A

22
Singular energies

• For smooth and strictly convex energies, the
  subdifferential is a singleton
• Dual smoothing directly results in a primal
  one !
• For singular energies, subdifferentials are not
  usually multivalued. The consequence is a
  possibility to break the primal smoothing

23
Error Estimation

• First question for error estimation estimate
  difference of u (minimizer of ROF) and f in terms
  of l
• Estimate in the L2 norm is standard, but does
  not yield information about edges
• Estimate in the BV-norm too ambitious even
  arbitrarily small difference in edge location can
  yield BV-norm of order one !

24
Error Estimation

• We need a better error measure, stronger than
  L2, weaker than BV
• Possible choice Bregman distance Bregman 67
• Real distance for a strictly convex
  differentiable functional not symmetric
• Symmetric version

25
Error Estimation

• Bregman distances reduce to known measures for
  standard energies
• Example 1
• Subgradient Gradient u
• Bregman distance becomes

26
Error Estimation

• Bregman distances reduce to known measures for
  standard energies
• Example 2 -
• Subgradient Gradient log u
• Bregman distance becomes Kullback-Leibler
  divergence (relative Entropy)

27
Error Estimation

• Total variation is neither symmetric nor
  differentiable
• Define generalized Bregman distance for each
  subgradient
• Symmetric version
• Kiwiel 97, Chen-Teboulle 97

28
Error Estimation

• For energies homogeneous of degree one, we have
• Bregman distance becomes

29
Error Estimation

• Bregman distance for singular energies is not a
  strict distance, can be zero for
• In particular dTV is zero for contrast change
• Resmerita-Scherzer 06
• Bregman distance is still not negative
  (convexity)
• Bregman distance can provide information about
  edges

30
Error Estimation

• Let v be piecewise constant with white
  background and color values on regions
• Then we obtain subgradients of the form
• with signed distance function and

31
Error Estimation

• Bregman distances given by
• In the limit we obtain for being piecewise
  continuous

32
Error Estimation

• For estimate in terms of l we need smoothness
  condition on data
• Optimality condition for ROF

33
Error Estimation

• Subtract q
• Estimate for Bregman distance, mb-Osher 04

34
Error Estimation

• In practice we have to deal with noisy data f
  (perturbation of some exact data g)
• Estimate for Bregman distance

35
Error Estimation

• Optimal choice of the penalization parameter
• i.e. of the order of the noise variance

36
Error Estimation

• Direct extension to deconvolution / linear
  inverse problems
• under standard source condition
• mb-Osher 04
• Extension stronger estimates under stronger
  conditions, Resmerita 05
• Nonlinear inverse problems, Resmerita-Scherzer 06


37
Error Estimation Future tasks

• Extension to other fitting functionals (relative
  entropy, log-likelihood functionals for different
  noise models)
• Extension to anisotropic TV (Interpretation of
  subgradients)
• Extension to geometric problems (segmentation by
  Chan-Vese, Mumford-Shah) use exact relaxation in
  BV with bound constraints Chan-Esedoglu-Nikolova
  04

38
Discretization

• Natural choice primal discretization with
  piecewise constant functions on grid
• Problem 1 Numerical analysis (characterization
  of discrete subgradients)
• Problem 2 Discrete problems are the same for
  any anisotropic version of the total variation

39
Discretization

• In multiple dimensions, nonconvergence of the
  primal discretization for the isotropic TV (p2)
  can be shown
• Convergence of anisotropic TV (p1) on
  rectangular aligned grids
• Fitzpatrick-Keeling 1997

40
Primal-Dual Discretization

• Alternative perform primal-dual discretization
  for optimality system (variational
  inequality)with convex set

41
Primal-Dual Discretization

• Discretization
• Discretized convex set with appropriate elements
  (piecewise linear in 1D, Raviart-Thomas in
  multi-D)

42
Primal / Primal-Dual Discretization

• In 1 D primal, primal-dual, and dual
  discretization are equivalent
• Error estimate for Bregman distance by analogous
  techniques
• Note that only the natural condition

  is needed to show

43
Primal / Primal-Dual Discretization

• In multi-D similar estimates, additional work
  since projection of subgradient is not discrete
  subgradient.
• Primal-dual discretization equivalent to
  discretized dual minimization (Chambolle 03,
  Kunisch-Hintermüller 04). Can be used for
  existence of discrete solution, stability of p
• Mb 07 ?

44
Cartesian Grids

• For most imaging applications Cartesian grids
  are used. Primal dual discretization can be
  reinterpreted as a finite difference scheme in
  this setup.
• Value of image intensity corresponds to color in
  a pixel of width h around the grid point.
• Raviart-Thomas elements on Cartesian grids
  particularly easy. First component piecewise
  linear in x, pw constant in y,z, etc.
• Leads to simple finite difference scheme with
  staggered grid

45
Iterative Refinement ISS

• ROF minimization has a systematic error, total
  variation of the reconstruction is smaller than
  total variation of clean image. Image features
  left in residual f-ug, clean f, noisy u,
  ROF f-u

46
Iterative Refinement ISS

• Idea add the residual (noise) back to the
  image to pronounce the features decreased to
  much. Then do ROF again. Iterative procedure
• Osher-mb-Goldfarb-Xu-Yin 04

47
Iterative Refinement ISS

• Improves reconstructions significantly

48
Iterative Refinement ISS
49
Iterative Refinement ISS

• Simple observation from optimality condition
• Consequently, iterative refinement equivalent to
  Bregman iteration

50
Iterative Refinement ISS

• Choice of parameter l less important, can be
  kept small (oversmoothing). Regularizing effect
  comes from appropriate stopping.
• Quantitative stopping rules available, or stop
  when you are happy S.O.
• Limit l to zero can be studied. Yields gradient
  flow for the dual variable (inverse scale
  space)mb-Gilboa-Osher-Xu 06,
  mb-Frick-Osher-Scherzer 06

51
Iterative Refinement ISS

• Non-quadratic fidelity is possible, some caution
  needed for L1 fidelity
• He-mb-Osher 05, mb-Frick-Osher-Scherzer 06
• Error estimation in Bregman distance
  mb-He-Resmerita 07

52
Iterative Refinement

• MRI Data Siemens Magnetom Avanto 1.5 T Scanner
  He, Chang, Osher, Fang, Speier 06
• PenalizationTV Wavelet

53
Iterative Refinement

• MRI Data Siemens Magnetom Avanto 1.5 T Scanner
  He, Chang, Osher, Fang, Speier 06

54
Iterative Refinement

• MRI Data Siemens Magnetom Avanto 1.5 T Scanner
  He, Chang, Osher, Fang, Speier 06

55
Surface Smoothing

• Smoothing of surfaces obtained as level sets
• 3D Ultrasound, Kretz / GE Med.

56
Inverse Scale Space
57
Iterative Refinement ISS

• Application to other regularization techniques,
  e.g. wavelet thresholding is straightforward
• Starting from soft shrinkage, iterated
  refinement yields firm shrinkage, inverse scale
  space becomes hard shrinkageOsher-Xu 06
• Bregman distance natural sparsity measure,
  source condition just requires sparse signal,
  number of nonzero components is smoothness
  measure in error estimates

58
Download and Contact

• Papers and Talks
• www.math.uni-muenster.de/u/burger
• e-mail martin.burger_at_uni-muenster.de
