825354 Timer and Music

1

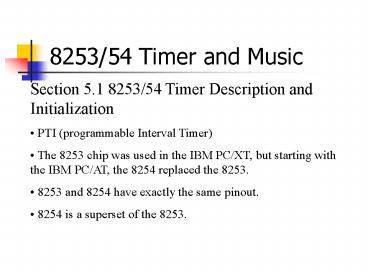

8253/54 Timer and Music

• Section 5.1 8253/54 Timer Description and
  Initialization
• PTI (programmable Interval Timer)
• The 8253 chip was used in the IBM PC/XT, but
  starting with the IBM PC/AT, the 8254 replaced
  the 8253.
• 8253 and 8254 have exactly the same pinout.
• 8254 is a superset of the 8253.

2
Programmable Interval Timer - 8254
3
(No Transcript)
4
(No Transcript)
5
Pin Description of 8253/54

• A0, A1, and CS
• Inside the 8253/54 timer, there are 3 counters.
• Each timer works independently and programmed
  separately.
• Each counter is assigned an individual port
  address.
• The control register common to all 3 counters
  and has its own port.

6
(No Transcript)
7

• CLK
• CLK is the input clock frequency, which can
  range between 0 and 2 MHz for the 8253.
• For input frequencies higher than 2 MHz, the
  8254 must be used.
• The 8254 can go as high as 8 MHz, and 8254-2 can
  go 10 MHz.
• OUT
• Can have square-wave, one-shot, and other
  square-shape waves for various duty cycles but no
  sine-wave or saw-tooth shapes.
• Gate
• This pin is used to enable or disable the
  counter.

8

• D0-D7
• The D0-D7 data bus of the 8253/54 is a
  bidirectional bus connected to D0-D7 of the
  system data bus.
• RD and WR are connected to IOR and IOW control
  signals of the system bus.
• Initialization of the 8253/54
• Each of the three counters of the 8253/54 must
  be programmed separately.
• The 8253/54 must be initialized before it is
  used.

9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
Control word

• The figure shows the one-byte control word of the
  8253/54.
• D0 chooses between a binary number divisor of
  0000 to FFFFH or a BCD divisor of 0000 to 9999H.
• The highest number is 216 for binary and 104 for
  BCD.
• To get the highest count, the counter is loaded
  with zeros.
• D1, D2, and D3 are for mode selection.

14

• D4 and D5 are for RL0 and RL1
• RL0 and RL1 are used to indicate the size of the
  divisor, and have 3 options
• Read/write MSB only
• Read/write LSB only
• Read/write LSB first followed immediately by the
  MSB.

15
Operation Modes
Mode 0 Interrupt on terminal count Mode
1 Programmable one-shot Mode 2 Rate
Generator Mode 3 Square wave rate generator Mode
4 Software triggered strobe Mode 5 Hardware
trigger strobe
16

• All counters are down counters.
• D6 and D7 are used to select the 3 counters,
  counter 0, counter 1, or counter 2, is to be
  initialized by the control byte.
• To program a given counter of the 8253/54 to
  divide the CLK input frequency one must send the
  divisor to that specific counters reg.
• To divide the frequency by 10000 (BCD) or 65536
  (binary) we must send in 0 for both high and low
  bytes.

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
Section 5.2 IBM PC 8253/54 Timer Connections and
Programming
21

• The three clocks of the 8253, CLK0, CLK1, and
  CLK2, are all connected to a constant frequency
  of 1.1931817 MHz.
• PCLK of the 8284 is 2.3863663 mhZ and must be
  divided by 2.
• GATE0 and GATE1 enable counter0 and counter 1
  respectively.
• GATE2 of counter 2 can be enabled or disabled
  through PB0 of port B of the 8255.

22
(No Transcript)
23
Using counter 0

• CLK0 of counter 0 is 1.193 MHz, and GATE0 is
  connected permanently.
• OUT0 is connected to IRQ0 of the 8259 interrupt
  controller to provide time-of-day (TOD)
  interrupt.
• IRQ0 is activated 18.2 times per second. (18.2
  Hz)
• The counter must to divide 1.193 MHz by 65,536.

24
Using counter 0

• The wave shape is a square wave.
• D0 0 for the binary value.
• D3 D2 D1 011, mode 3
• D4 D5 11, for reading/writing the LSB first,
  followed by MSB.
• D7 D6 00, for counter 0.

25
(No Transcript)
26
Using counter 0

• The function of IR0 is not only taking care of
  the TOD clock.
• BIOS will make this interrupt available by going
  to the vector table of INT 1CH.

27
Using Counter 1

• In counter 1, CLK1 is connected to 1.193 MHz and
  GATE is high.
• OUT1 generates a periodic pulse required to
  refresh DRAM memory of the computer.
• The refreshing must be done at least 15?s
  (66278Hz) for each cell, and is performed by DMA.
• Counter must divide the input frequency 1.19318
  MHz by 18.
• DRAM maximum frequency refresh time is 2 ms.

28
Using Counter 1
D0 0 for binary option D3 D2 D1 010, for mode
2 shape output. D5 D4 01, for LSB only D7 D6,
for counter 1. D7D0 0101 0100 54H for the
control word.
29
Using Counter 2

• The output of counter 2 is connected to two
  different devices the speaker and PC5 of the
  8255.
• Use of timer 2 by the speaker
• In the IBM PC, CLK2 is connected to a frequency
  of 1.19318 MHz and GATE2 is programmed by PB0 of
  port 61H (port B).
• The IBM PC uses counter 2 to generate the beep
  sound.
• The beep sound has a frequency of 896 Hz
  (divisor 1331)

30
(No Transcript)
31
Turning on the speaker via PB0 and PB1 of port 61H

• The process of turning on the speaker is the
  same for all IBM PCs and compatibles from
  8088-based to 80486 and Intels Pentium-based
  systems.
• Gate2 must be high to provide the CLK to timer
  2.
• This function is performed by PB0 of port 61H.
• The following is the code to turn the speaker on.

32
Turning on the speaker via PB0 and PB1 of port 61H
33
Time delay for 80x86 PCs

• Creating time delays in 8088/86-based PC/XT, PS2,
  and compatibles
• MOV CX, N
• AGAIN LOOP AGAIN
• The above codes can be used to generate delays (N
  ? T ?17 seconds)
• Approximate delay time
• The delay is not only frequency dependent but
  also CPU dependent.
• IBM provides a scheme to create a time delay
  using hardware that is not only frequency but
  also CPU independent.

34
Time delays in 80x86 IBM PC

• The following method of creating hardware time
  delays was first implemented in the IBM PC and
  compatible computers.
• To create a processor independent delay, IBM
  made PB4 of port 61H toggle every 15.085?s.
• CS holds 15.085?s in the following codes.

35
Time delays in 80x86 IBM PC
36
Time delays in 80x86 IBM PC

• Now a time delay of any duration can be created
  regardless of the CPU frequency as long as it is
  a 286 and higher PC.
• For example set CX33144 (33144?15.085?s0.5
  second)
• MOV CX, 33144
• CALL WAITF

37
Time delays in 80x86 IBM PC
38
Example5-11
39
Example5-12,5-13,5-14
40
Generating Music on the IBM PC

• As mentioned earlier, counter 2 is connected to
  the speaker and it can be programmed to output
  any frequency that is desired.
• Look at the list of piano notes and their
  frequencies given in Fig. 5-5.
• Music frequency and time duration

41
(No Transcript)
42
(No Transcript)
43
A delay of 250 ms
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
Shape of 8253/54 Outputs
49
Out0 pulse shape in IBM BIOS

• IBM BIOS programmed counter 0 to create mode 3,
  which is square-wave shape.
• Counter 0 is loaded with the number 65,536 and
  the clock period of input frequency 838 ns
  (1/1.193 MHz 838 ns), so the period of the OUT0
  pulse is equal to 65536?838 ns 54.9 ms (18.2
  Hz).
• OUT0 continuously sends out square wave pulses.

50
Out1 pulse shape in the IBM BIOS

• IBM BIOS programmed counter 1 in mode 2, rate
  generator, with the value 18 loaded into the
  counter.
• OUT1 will be high for a total of 17 ?838 ns and
  go low for one pulse of 838 ns
• GATE1 is set to 1 permanently

51
OUT2 pulse shape in the IBM BIOS

• IBM BIOS loads the value 1331 into counter 2.
• Since 1331 is an odd number, the OUT2 pulse is
  high for a total of (13311)/2 666 ? 838 ns and
  is low for a total of (1331-1)/2 665 ? 838 ns

52
Mode 0 interrupt on terminal count
The output in this mode is initially low, and
will remain low for the duration of the count if
GATE 1. Width of low pulse N?T Where N is
the the clock count loaded into counter, and T is
the clock period of the CLK input.
53
Mode 0 interrupt on terminal count

• When the terminal count is reached, the output
  will go high and remain high until a new control
  word or new count number is loaded.
• In this mode, if GATE input becomes low at the
  middle of the count, the count will stop and the
  output will be low.
• The count resumes when the gate becomes high
  again.
• This in effect adds to the total time the output
  is low.

54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
Mode 1 programmable one-shot

• This mode is also called hardware triggerable
  one-shot.
• The triggering must be done through the GATE
  input by sending a 0-to-1 pulse to it.
• The following two steps must be performed
• Load the count registers.
• A 0-to-1 pulse must be sent to the GATE input to
  trigger the counter.
• Contrast this with mode 0, in which the counter
  produces the output immediately after the counter
  is loaded as long as GATE 1.
• In mode 1 after sending the 0-to-1 pulse to GATE,
  OUT becomes low and stays low for a duration of
  N?T, then becomes high and stays high until the
  gate is triggered again.

58
(No Transcript)
59
(No Transcript)
60
Mode 2 rate generator

• Mode 2 is also called divide-by-N counter.
• In this mode, if GATE 1, OUT will be high for
  the N?T clock period, goes low for only one clock
  pulse, then the count is reloaded automatically,
  and the process continues indefinitely.

61
(No Transcript)
62
Mode 3 square wave rate generator

• In this mode if GATE 1, OUT is a square wave
  where the high pulse is equal to the low pulse if
  N is an even number.
• In this case the high part and low part of the
  pulse have the same duration and are equal to
  (N/2)?T (50 duty cycle)
• If N is an odd number, the high pulse is one
  clock pulse longer.
• This mode is widely used as a frequency divider
  and audio-tone generator.

63
(No Transcript)
64
(No Transcript)
65
Mode 4 software trigger strobe

• In this mode if GATE 1, the output will go high
  upon loading the count.
• It will stay high for the duration of N?T.
• After the count reaches zero (terminal count),
  it becomes low for one clock pulse, then goes
  high again and stays high until a new command
  word or new count is loaded.
• To repeat the strobe, the count must be reloaded
  again.
• Mode 4 is similar to mode 2, except that the
  counter is not reloaded automatically.
• In this mode, the count starts the moment the
  count is written into the counter.

66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
Mode 5 hardware trigger strobe

• This mode is similar to mode 4 except that the
  trigger must be done with the GATE input.
• In this mode after the count is loaded, we must
  send a low-to-high pulse to the gate to start the
  counter.

70
(No Transcript)
