Object Oriented Systems

1

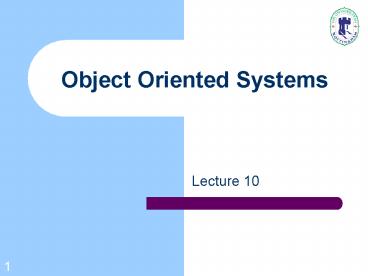

Object Oriented Systems

• Lecture 10

2
Special Classes Next Week

• Extra Classes
• Wednesdays 12.00-1.00 pm B53.
• Stefan Senk (sms_at_cs.nott.ac.uk)
• Coursework Deadline
• Friday March 18th (14 days away)
• There will be exercises over the easter holiday
  but no coursework. Use that time to improve!
• Today
• Inheritance

3
Previously

• Copy Constructors
• Destructors
• Assignment Operator Overloading
• These were the big 3, necessary if you have DMA
  in your class. If you need one, you need all of
  them.

4
Todays Symphony

• Prelude A sly shortcut.
• 1st Movement What is Inheritance?
• 2nd Movement Protected Members
• 3rd Movement Multiple Inheritance
• 4th Movement Constructors in Inheritance
• Coda Points to remember

5
Curtain Call Todays Bjarney
6
PRELUDE - cheeky initialisation

• Weve seen how constructors are often used for
  initialising variables
• class president
• public
• president()
• string name
• int age
• int IQ
• presidentpresident()
• name George Bush
• age 59
• IQ NULL

7
A quicker method to use

• Another technique is as follows
• presidentpresident() name(George Bush),
• age(59),
• IQ(NULL)
• Or generically it might be
• presidentpresident(string n, int a, int i)
• name(n), age(a), IQ(i)

Bit unsightly, but more efficient style than the
previous slide
8
1st Movement - Inheritance

• A key feature of Object Orientation.
• Inheritance is the ability to define new classes
  using existing classes as a basis.
• New class inherits all the attributes and
  behaviours of its parent.
• It can have extra attributes of its own
• If your going to be a top software designer or
  manager youve got to get your head round it.

9
The Inheritance concept

• Modelled on biological Inheritance
• We all have common genes with our ancestors -
  Class Inheritance is analogous
• We can use inheritance to design complex systems
  It provides a way of organising components into
  a hierarchical structure.
• These can produce complex systems, but it is also
  there to help us.

10
Example Music Format
Music Format
Analog Format
Digital Format
Magnetic Tape
DAT
MP3
Vinyl
Disk
12 Record
7 Record
MiniDISC
CD
11
Levels of Abstraction
Shape
HIGH LEVEL
MEDIUM LEVEL
Parallelogram
LOW LEVEL
Diamond

• Inheritance is based on the relationship
• is-a
• Whereas member variable represent the
  relationships
• has-a
• uses-a

12
The key to Object Orientation

• is determining the level of abstraction your
  base classes should be.
• It is easy to make these either too specific or
  not specific enough.
• For example if the base abstraction for passenger
  vehicles contains an attribute for no. of wheels,
  we could get in trouble - This example is
  potentially too specific.
• But if we do not add a variable for no. of
  passengers we will have to add it to every child
  class manually now the base class was too
  general.

13
Good Old Shape Example
Shape
Regular Shape
Irregular Shape
Parallelogram
Triangular
Circle
Diamond
Rectangle
14
Setting up a Child Class

• class inheritance uses the following general
  form
• class derivedClassaccess baseClass
• // body of the class

a SINGLE colon
Normal Class Keyword
The type of access the new class has
The original class that we are using as our base
The name of our new class
15
The access keyword

• Now, this can get confusing because, just like
  member variables the access keyword can also be
• Private
• Public
• Protected
• If you use public accessor all variables apart
  from the private ones are sent across to our new
  class, as they are. Public inheritance is the
  most widely used inheritance.
• This is important as it means that only
  non-private members of your base class can ever
  be inherited.

16
Public Inheritance

• Below is a graphical representation of public
  inheritance.
• Public variables of the parent class become
  public members of the child class, but the
  original private members are not inherited.

base-class
derived class
public inheritance
PUBLIC members
PUBLIC members
PRIVATE members
17
Polygon Example

• class polygon
• public
• int width, height
• void set_values (int a, int b) widtha
  heightb
• class rectangle public polygon
• public
• int area () return (width height)
• class triangle public polygon
• public
• int area () return (width height / 2)

18
using our inherited items

• int main ()
• rectangle rect
• triangle tri
• rect.set_values (4,5)
• tri.set_values (4,5)
• cout ltlt rect.area() ltlt endl
• cout ltlt tri.area() ltlt endl
• return EXIT SUCCESS

Have same member variable types but different
area methods
19
Children have the same Imprint

• Items in an inheritance always have the same
  imprint as their base class. What does this mean?
• This is especially useful in containers such as
  vectors. In C vectors only take items of a
  single type. But they can also take items of a
  sub-class in that same vector.

your program object code
Other object
Rectangle object
101011111001010101011 10 1110
1100 10111100010010 110100101
Triangle object
20
Vector Example

• If we declare a vector as holding a base class we
  can add sub-classed objects to it as well
• int main ()
• vectorltpolygongt v
• polygon hexagon
• rectangle rect
• triangle tri
• v.push_back(hexagon)
• v.push_back(rect)
• v.push_back(tri)

Fine as all these items are in the same
inheritance tree and so have the same imprint.
21
2nd Movement - Protected Variables

• A section of a class may be set as Protected -
  but this keyword causes a lot of confusion.
• Protected variables are like private variables in
  many ways other parts of your program are not
  allowed access to them.
• But they can of course be accessed by members of
  the class that they are declared in.
• So what on earth is the difference between the
  private and protected sections of a class?

22
The difference is

• They exist as a tool for inheritance. They are
  just like private members except
• If the base class is inherited using the public
  keyword then, the protected members become
  protected members of the derived class too

base-class
derived class
public inheritance
PUBLIC members
PUBLIC members
public inheritance
PROTECTED members
PROTECTED members
PRIVATE members
23
Play it safe use Protection

• Hence you can create member variables which are
  essentially private to the class but can still be
  inherited
• class coordinates
• private
• int x,y
• public
• coordinates(int _x, int _y) x_x y_y
• display() cout ltlt ( ltlt x ltlt , ltlt y ltlt )
  ltlt endl
• class derived public coordinates
• int steps
• public
• distance() return xysteps
• showSteps() cout ltlt steps ltlt endl

protected
24
99 Protection

• You can of course chain your derived classes
  keeping these protected variables

Shape
Regular Shape
PUBLIC
PUBLIC members
Parallelogram
PROTECTED
PUBLIC members
PROTECTED members
PRIVATE
PROTECTED members
25
Back to Access

• Keep very clear in you head that member variables
  can be
• public
• private
• protected
• The Inheritance mechanism also uses an access
  keyword which can be
• public
• private
• protected
• Up to this point we have looked at all the member
  variables but only considered access using public
  inheritance.

26
Private Inheritance

• We have already considered what happens when we
  use the private and public inheritance access.
• Private Access means that all of the public and
  protected variables of the parent class become
  private in the child.

base-class
derived class
private inheritance
PRIVATE members
PUBLIC members
private inheritance
PROTECTED members
PRIVATE members
PRIVATE members
27
3rd Movement - Multiple Inheritance

• Your sub-classes can potentially have one parent,
  a mom and a dad, or in fact lots of parents. The
  syntax for this is simple
• class derivedClassaccess base1, access base2,
  .
• // body of the class
• For example, maybe youve some how managed to
  record digitally onto vinyl, then from our music
  example we might have a derived class
• class digiVinylpublic Vinyl, public Digital

just list all parents here
28
Coordinates example

• class Xcoordinate
• protected
• int x
• public
• displayX() cout ltlt x is ltlt x ltlt endl
• class Ycoordinate
• protected
• int y
• public
• displayY() cout ltlt y is ltlt y ltlt endl
• class XYcoordinate public Xcoordinate, public
  Ycoordinate
• public

29
Testing it out

• include coords.h
• int main()
• XYcoordinate treasure
• treasure.setXY(25,17)
• treasure.displayX()
• treasure.displayY()
• return EXIT_SUCCESS

instance of the child class
from the derived class
from Xcoordinate class
From Ycoordinate class
OUTPUT x is 25 y is 17
30
4th Movement - Constructors (again)

• Last few lectures weve done a huge amount on
  constructors and destructors.
• When we create an instance of a derived class
  does the parent constructor or the child
  constructor execute?

• BOTH
• But in What order? And how do we know which one
  we are passing parameters to?

31
Proof of the Pudding

• class base
• public
• base() cout ltlt Creating base ltlt endl
• base() cout ltlt Killing base ltlt endl
• class derivedpublic base
• public
• derived() cout ltlt Creating derived ltlt
  endl
• derived() cout ltlt Killing derived ltlt
  endl
• int main()
• derived tester
• return EXIT_SUCCESS

OUTPUT Creating base Creating derived Killing
derived Killing base
1
32
Same for even more children

• class derivedpublic base
• public
• derived() cout ltlt Creating derived\n
• derived() cout ltlt Killing derived\n
• class lastOnepublic derived
• public
• derived() cout ltlt Creating lastOne\n
• derived() cout ltlt Killing lastOne\n
• int main()
• lastOne tester
• return EXIT_SUCCESS

OUTPUT Creating base Creating derived Creating
lastOne Killing lastOne Killing derived Killing
base
1
33
And Multiples. SAME AGAIN!

• class Xcoordinate
• public
• Xcoordinate () cout ltlt Creating X ltlt endl
• Xcoordinate() cout ltlt Killing X ltlt endl
• int x
• class Ycoordinate
• public
• Ycoordinate () cout ltlt Creating Y ltlt endl
• Ycoordinate() cout ltlt Killing Y ltlt endl
• int y

34
(continued)

• class XYcoordinate public Xcoordinate,
• public Ycoordinate
• public
• XYcoordinate (int a, int b)
• cout ltlt Creating coordinate ltlt endl
• XYcoordinate ()
• cout ltlt Killing coordinate ltlt endl
• int main()
• XYcoordinate test_coordinate
• return EXIT_SUCCESS

public Ycoordinate, public Xcoordinate
OUTPUT Creating X Creating Y Creating
coordinate Killing coordinate Killing Y Killing X
1
35
Constructor Confusion

• So with all these constructors firing off left,
  right and centre which one takes our parameters?
• Well, as we saw each constructor is invoked
  systematically
• If only the sub-class requires parameters there
  is no problem as it is obvious where they are
  going.
• But if we want to send parameters to both the
  child and the parent class constructors then we
  have to use a special syntax

36
Passing on Constructor Parameters

• Example constructor
• child_classchild_class(arguments)
  parent_class(arguments)
• If the child is the bottom of a multiple
  inheritance then we can expand this to use
• child_classchild_class(arguments)
• parent1_class (arguments),
• parent2_class(arguments)

37
Seeing this in action

• class coordinates
• int x,y
• public
• coordinates (int _x, int _y) x_x y_y
• display() cout ltlt ( ltlt x ltlt , ltlt y ltlt )
  ltlt endl
• class distance public direction
• int steps
• public
• distance(int _x, int _y, int s) coordinates
  (_x, _y)stepss
• showSteps() cout ltlt steps ltlt endl
• int main()
• coordinates digHere(100, 3, 3)

Here we pass on parameters to the parents
constructor
38
And if its even more complex

• The same rules apply. If we had a chain of
  classes being inherited the constructors for each
  one must take into account their parents
• distancedistance(int _x, int _y, int _a, int
  _b, int s)
• startPoint(_x, _y, _a, _b)
• steps s
• startPointstartPoint (int _x, int _y, int _a,
  int _b)
• coordinates (_x, _y)
• a _a
• b _b

Constructor for the child
Constructor for the new parent sending info to
the grand parent class.
39
Coda Points to Remember

• The is-a relationship relationship indicates
  inheritance
• a dwarf is-a type of person (yet sadly
  disadvantaged)
• drum bass is-a type of music
• garage is-not
• This relationship is transitive Scooby Doo is-a
  type of dog, a dog is-a mammal and therefore
  Scooby Doo is a mammal.
• The has-a relationship indicates containment.
  Aggregate objects are constructed using
  containment

40
Even more Points to Remember

• A class created from an existing class using
  inheritance is called a derived class or a
  subclass.
• The parent is called the base class or
  superclass.
• I recommend for now you use public inheritance as
  then we always know that
• Public variables of the base class are public
  members of the derived class.
• Private variables of the base class are not
  accessible by the member functions of the derived
  class.
• Protected members of the base class become
  private members of the derived class.

41
Next Lecture

• If you have learnt everything up to you will be
  have good knowledge in intermediate C. Monday
  you graduate part 2 of the course with
• Virtual Functions
• Streams
• Debugging
• Putting it everything together in the
• grand data structure experiment.
