ATRAP II: Preparing for the Future

1

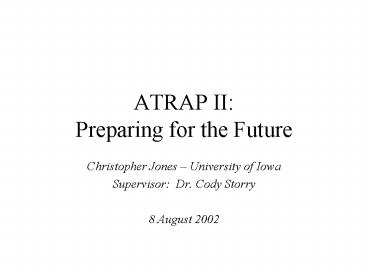

ATRAP IIPreparing for the Future

• Christopher Jones University of Iowa
• Supervisor Dr. Cody Storry
• 8 August 2002

2

• Leading the Effort to Produce and Store Cold
  Antihydrogen
• Operates Out of the Antiproton Decelerator at
  CERN

3
Why Make Antihydrogen?

• Simplest Anti-atom
• Spectroscopy
• Study CPT Invariance

4
How To Make Cold Antihydrogen?

• ATRAP uses a nested Penning trap to accumulate,
  cool, and store antiprotons and positrons.

5
Nested Penning Trap
6
Nested Penning Trap
7
ATRAP II

• More Space (25x Current Trap)
• Ioffe Trap
• Lasers
• More Detectors
• 3 Layers of Fiber for Tracking p-pbar
  annihilation
• BGO and Silicon Microstrip for Tracking ee-

8
My Project Paving the Way for ATRAP II

• There is a room set aside for the new trap,
  called Zone II.
• It is my duty to prepare this room for the
  arrival of the traps magnet in early August.

9
2 Phases of Zone II Preparation

• Physical Room Preparation
• Concrete Blocks
• Painting
• Vacuum Preparation
• Tubes
• Gauges
• Valves
• Pumps
• Controls

10
Physical Preparation

• Made 12 Concrete Blocks

11
Physical Preparation

• Made 12 Concrete Blocks
• Used Them to Build a Wall

12
Physical Preparation

• Made 12 Concrete Blocks
• Used Them to Build a Wall
• Painted the Wall (To Eliminate Dust)

13
Vacuum System (Inside)
14
Vacuum System (Outside)
15
1st Successful Pump Down!
16
(No Transcript)
17
(No Transcript)
18
Current Vacuum Stats

• Vacuum of 7 x 10-7 Torr achievable in 12 hours
  pumping time.
• No leaks greater than 2 x 10-8 mbar L s-1

19
Conclusions

• Temporary Vacuum System Works
• Future Work
• Complete the System
• Continue Leak Checking Shoot for no leaks
  greater than 10-9 mbar L s-1
• Construct Automated Vacuum Control System
• Situate Vacuum Controls Inside Zone

20
Special Thanks To

• All the members of the ATRAP group, especially
  those who directly worked with me
• Nathaniel Bowden
• Paul Oxley
• Heiko Pittner
• Dr. Joseph Tan

21
And, of Course
Dr. Cody Storry
Christine Nattrass
22
This Work Was Made Possible By . . .

• Jean Krisch, Homer Neal, Tom Dershem
• University of Michigan
• CERN
• National Science Foundation
• Ford Motor Company
