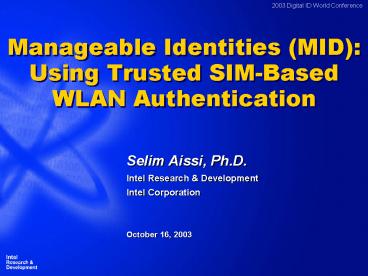

Manageable Identities (MID) Using Trusted
SIM-Based WLAN Authentication

• Selim Aissi, Ph.D.
• Intel Research Development
• Intel Corporation
• October 16, 2003

2
Intel RD Wireless Vision
Identities
All Devices Can Present Multiple Identities
Identities Consistent Manageable Across Devices
Easy, Trusted, Consistent Access with Any
Appropriate Identity
3
Agenda

• Problem Statement
• SIM Based Authentication
• GSM/GPRS Network
• Applied to WLAN
• SIM Attachment to Open Platforms
• Attachment Options
• Security Issues
• Solutions
• Trusted SIM Access

This presentation contains information on
products in the design phase of development. The
information here is subject to change without
notice. Do not finalize a design with this
information.
4
WWAN - WLAN Convergence
Problem Statement
Signal
Data
SGSN
BSC/RNC
GGSN
2.5/3G CORE
2.5/3G RAN
AuC
H/VLR
BTS/Node B
Open platforms do not have a consistent, easy,
and trusted method to access WWAN and WLAN
networks
5
What is SIM?
SIM based Authentication

• Subscriber Identity Module (SIM)
• Uniquely represents the identity of the
  subscriber
• Required in GSM/GPRS and optional in CDMA
  networks
• Provides
• Tamper Resistant Environment
• Protected Execution
• Protected Storage
• Form and Function Defined by
• 3GPP/ ETSI GSM 11.11, 11.12, 11.18
• WAP Forum WAP-260-WIM-20010712-a
• ISO 7816- 1,2,3,4,

ID-000 Style
6
Role of SIM in GSM/GPRS
SIM based Authentication

• Hardware-based storage of secrets
• Operator provisioned user identity and keys
• User data
• Hardware protected execution environment
• GSM authentication algorithms
• User subscription identity and data migration
• Enables User to switch client devices while
  retaining their services

7
Authentication in GSM/GPRS
SIM based Authentication
IMSI/TMSI International/Temporary Mobile
Subscriber Identity
8
Applied to WLAN
SIM based Authentication
EAP-SIM
GSM MAP/SS7
PEAP (TLS)
EAP
802.1X
RADIUS
Optional
802.3 / TCP/IP
802.11 (TKIP,.11i)
Note EAP - Extensible Authentication Protocol,
RFC 2284, 2284bis
9
SIM Usage for WLAN
SIM based Authentication

• EAP-SIM
• EAP Protocol method that allows SIM credentials
  to be used over EAP
• Useful for WLAN or any EAP based access control
  network
• Modifies GSM Authentication protocol over EAP
  channel
• EAP-SIM features
• Mutual Authentication
• Message Authentication and Integrity Protection
  (MACs)
• Re-authentication
• Partial Identity Privacy
• Key Derivation and data privacy
• EAP-AKA
• EAP method defined for USIM authentication also
  called AKA (Authentication and Key Agreement)
• Note CDMA networks have a similar R-UIM
  definition (Removable User Identity Module)
• No EAP method defined yet

10
WPA (Wi-Fi Protected Access) and EAP-SIM
SIM based Authentication

• WPA
• Adds strong authentication using 802.1X and EAP
  methods
• Enhances encryption WEP (Wireless Equivalence
  Privacy) to TKIP (Temporal Key Integrity
  Protocol)
• EAP-SIM is an EAP method
• Applies GSM SIM authentication process to WLAN
• Intel Centrino mobile technology supports WPA

11
Value of SIM Authentication in WLAN
SIM based Authentication

• Service limited to authorized Subscribers
• SIM benefits to the user
• Facilitates transparent Login
• Common subscriptions and billing
• SIM is trusted by operator
• Customer ownership, proven security
• Reuse of existing authentication billing
  infrastructure
• Preserves SIM investments

12
SIM Re-Use in Open Platforms
SIM re-use in WLAN provides Single Bill Roaming
and Cell Phone like user experience
13
SIM Security in Open Platforms
SIM re-use in open platforms
SGSN
Base Station
HLR / AuC
Over Air
Authentication
RAND Kc
RAND
RAND
RAND Kc SRES
Closed System
SRES Kc
SRES
SRES
HLR / AuC
Access Point
AAA
Over Air
Authentication
RAND Kc
RAND
RAND
RAND Kc SRES
SRES Kc
SRES
Open System
SRES

• Threats
• Open data path issues SRES, Kc are are visible
• Notebook is open to Viruses, Trojan Horses, and
  MiM attacks

14
Weakness of SIM
SIM re-use in open platforms

• Attack on secret key Ki (SIM cloning)
• COMP 128-1 algorithm can be cracked by collecting
  triplets (RAND, SRES, and Kc) to deduce Ki
• Relatively easy in WLAN environment with open
  platforms
• Denial of service
• Repeated attempts to collect triplets may lock
  out SIM
• Attack on integrity of SIM data
• SIM data is protected by PIN code
• A Trojan Horse or Virus can eavesdrop on internal
  communications to discover PIN

Risks of such attacks are low in cellular systems
because of the closed nature of the cellular
system
15
Solving Open Data Path Issues
SIM re-use in open platforms

WWAN and
WiFi
WWAN and
WLAN
networks

• Solutions for solving open data paths
• Trusted hardware execution environment
• Encrypted tunnel for Path A
• End-to-end encrypted tunnel over Paths A and B

Network Application
Network Application

• Addressed by standards bodies
• EAP-SIM
• PEAP

Network Client
Network Client
Network
Network
Interface
Interface
Interface to Device
Interface to Device
with Credential
with Credential
(BUS, Drivers, etc.)
(BUS, Drivers, etc.)
Open Platform
Open Platform
Path A
Path B
16
Encrypted Tunnel for SIM Access
SIM re-use in open platforms
WLAN-SIM
EAP-SIM
PEAP
Encrypted Tunnel
EAP
ISO 7816-4 APDUs
802.1X
802.11

• Note
• APDU Application
• Protocol Data Unit
• (ISO 7816 Part 4)

Not all protocol termination points shown
Work In Progress for improved security
17
Summary

• SIM Re-Use for WLAN authentication is
  advantageous to operators
• Preserves existing infrastructure investment
• SIM authentication is trusted
• Single bill for WWAN and WLAN services
• Requires addressing possible open platform
  threats
• Mitigation through trusted platform elements and
  encrypted data tunnels

18
Thank you!
19
The Alphabet Soup

• AAA Authentication Authorization Accounting
• AKA Authentication and Key Agreement
• AP Access Point
• APDU Application Protocol Data Unit (ISO 7816
  Part 4)
• APDU-TLS TLS Protocol adaptation for protecting
  APDUs on SIM-ME interface
• AuC Authentication Center
• BSC / RNC Base Station Controller / Radio
  Network Controller (under the UMTS system)
• BT SAP Bluetooth SIM Access Profile
• BTS Base Transceiver Station
• EAP Extensible Authentication Protocol, RFC
  2284, 2284bis
• EAP-SIM - SIM based EAP method for authentication
• EAPOL EAP Over LAN. EAP Message encapsulation
  and extensions for 802.1X operation
• GGSN / SGSN Gateway GPRS Support Node / GPRS
  Support Node
• GPRS General Packet Radio Service
• GSM Global System for Mobile Communication
• HLR / VLR Home Location Register / Visitor
  Location Register
• IMSI / TMSI International Mobile Station
  Identity / Temporary Mobile Subscriber
  Identification
• Kc / Ki Cipher Key / Subscriber Authentication
  Key
• MAP GSM Mobile Application Part
