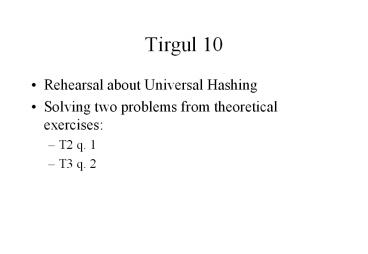

Tirgul 10

1
Tirgul 10

• Rehearsal about Universal Hashing
• Solving two problems from theoretical exercises
• T2 q. 1
• T3 q. 2

2
Universal Hashing

• Starting point for every hash function, there is
  a really bad input.
• A possible solution choose the hash function
  randomly from a family of hash functions.
• The logic behind it For any given input, we want
  that most of the hash functions in our family
  will handle it with few collisions.

h10,5()
Our family of hash function
h68,53()
h2,13()
h24,82()
Specific hash function
3
Demonstration

• Let us conduct an experiment
• A family of about 10,000 hash functions (the
  family you saw in class, details later on).
• One fixed input (50 keys), inserted to a table of
  size 70. (Student grades of exercises - dast
  2003)
• Question how many will behave really bad?
• Next slide shows the results - the x-axis
  describes the number of collisions (in this case
  it was also equal to the number of pairs that
  collide), and the y-axis describes how many
  functions had such a number of collisions.

4
Results
5
Most functions perform close to average
performance

• The average number of collisions is 8-9 all
  entries of the hash table always contained at
  most two elements, so the number of collisions is
  actually the number of entries with more than one
  element.
• Very very few functions had more than twice this
  number of collisions (or less than half).
• This is no accident!
• We constructed the family of functions so that
  the average performance of all the functions over
  any input will be good.
• Probability laws (e.g the Markov inequality you
  saw in class) tell us that very few elements of a
  universe will behave much worse (or much better)
  than the average behavior.

6
A good family of hash functions

• Conclusion Designing a family with good average
  performance is enough.
• We need to know two things
• A criteria that guarantees good average
  performance.
• How to construct a family that will have this
  criteria.

7
Ensuring good average performance

• Definition A family of hash functions H is
  universal if for any two keys k1 and k2, and any
  two slots in the table y1 and y2, the probability
  that h(k1) y1 and h(k2) y2 is at most 1/m2 (m
  is the size of the hash table).
• Remark This means that the chance that two keys
  will fall to the same slot is 1/m - just like if
  the hash function was truly random!
• Claim When using a universal hash family H, the
  average time of any hash operation is at most n/m
  1 (n is the number of elements we insert to the
  table).

8
Is this better than a balanced tree?

• If we have an estimation of n, the number of
  elements we will insert to the table, we will
  have constant time performance - no matter how
  many elements we have 106, 108 , 1010, or
  more...
• In contrary, the performance of a balanced tree,
  O(log n), is affected by the number of elements
  we have! As we have more elements, we have slower
  operations. For very large numbers, like 1010,
  this makes a difference.

9
Constructing a universal family

• Choose p - a prime larger than all keys.
• For any a,b in Zp0,...,p-1 denote fix a hash
  function
• ha,b(k) ((ak b) mod p) mod m
• The universal family Hp,m ha,b() a,b
  in Zp
• Theorem Hp,m is a universal family of hash
  functions.
• In our demonstration, the set of keys was all
  possible grades. We chose p101, inserted 50
  (real) grades into a hash table of size 70 (doing
  this for all the hash functions in H101,70 and
  counting collisions).

10
A second approach - average over inputs

• In Universal Hashing - no assumptions about the
  input (I.e. for any input, most hash functions
  will handle it well).
• For example, we dont know a-priori how the
  grades are distributed. (surly they are not
  uniform over 0-100).
• If we know that the input has a specific
  distribution, we might want to use this.
• For example, if the input is uniformly
  distributed, then the simple division method will
  obtain simple uniform hashing.
• In general, we dont know the inputs
  distribution, and so Universal Hashing is
  superior!

11
T2 q.1

• Reminder - quicksort
• quicksort(A1..n)
• 1. choose a pivot p from A.
• 2. re-arrange A s.t. all elements smaller than
  p will be located before it in A, and all
  larger elements will be after it.3. Suppose
  now p is in slot k.
• 4. Recursively sort A1..k-1 and Ak1..n.
• The connection to the previous discussion If we
  choose the pivot randomly, we actually have a
  family of algorithms, from which we choose one.
  The average performance is good, and so, for any
  input, most algorithms will perform well!

12
T2 q.1 - continued

• Question How many calls to the random number
  generator will we have in the worst case, and in
  the best case?
• Answer The number of these calls will always be
  !
• Proof Let us draw the recursion tree
• An internal node represents a call toquicksort
  with an array of size at least 2.
• A leaf represents a call to quicksortwith an
  array of size 1.
• Any internal node is also a father ofa leaf that
  represents the pivot it used.

13
The recursion tree

• Any leaf represents a singleelement in the
  array.
• Therefore the number ofleaves is exactly n.
• the ordered array is actuallythe leaves, from
  left to right.
• The random number generator is called once in
  every internal nodes.
• Therefore we actually ask how many internal
  nodes are there? Let X be the number of internal
  nodes.

14
Proof (continued)

• Observation 1 X is at most n, since any internal
  node points to at least one leaf.
• Observation 2 X is at least n/3
• Divide the set of leaves to subsetsaccording
  their father.
• Each subset contains at most 3 leaves,and
  therefore there are at least n/3subsets.
  Therefore
• X no. of subsets gt n/3
• Conclusion

Q.E.D
15
T3 q.2

• Reminder - Red-Black trees A binary search tree,
  with the following properties
• 1. Every node has a color - either red or black.
• 2. The root is black.
• 3. Every leaf (empty child) is black.
• 4. Both children of a red node are black.
• 5. Every path from a node to a descendant leaf
  contains the same number of black nodes.
• The black height of a tree is the number of black
  nodes in a path from the root to some leaf (not
  counting the root).

16
T3 q.2 - first part

• Question What is the maximal number of internal
  nodes of an RB tree with black height h?
• First intuition The path from the root to a leaf
  must contain exactly h black nodes. We want it to
  be long, so we can put a red node between each
  two black nodes. Thats the maximal we can do,
  since otherwise well violate property 4.
• Important This is just intuition, not a proof! A
  proof must show, by one or more arguments,
  without gaps between them, that the claim must be
  true. For example, in the above intuition there
  are two gap how do we know there is no way to
  make it even longer? And can we actually
  construct such a tree?

17
A maximal tree

• First part showing we can actually construct
  such a tree
• Take a complete binary tree with 2h1 levels.
• Color the root black, the second levelred, the
  third level black, and so on.
• Number of internal nodes 2(2h) - 1
• Notice that is a valid RB tree (with black height
  h)
• Properties 1, 2 4 immediately hold.
• 3 - The number of levels is odd, and we colored
  the first level black, then the last level
  (leaves) is black too.
• 5 - All paths have alternating red black nodes,
  and have the same length.

black
red
black
. . .
18
This tree is indeed maximal

• Claim Any RB tree with black height h has at
  most 2h levels (ignoring the leaves).
• Proof What is the no. of nodes in some path from
  a root to a leaf
• All paths contain same no. of black nodes, h in
  our case. Including the root, we have h1 black
  nodes.
• There must be at most h red nodes by property 4,
  therefore the path has 2h1 nodes, or 2h if we
  ignore the leaf.
• Remark A binary tree with 2h levels contains at
  most 2(2h)-1. This happens when the tree is
  complete.
• Answer An RB tree with maximal height h can have
  at most 2(2h)-1 internal nodes.

19
T3 q.2 - second part

• Question What is the minimal number of internal
  nodes of an RB tree with black height h.
• Claim There cannot be any red nodes in the
  minimal RB tree.
• Proof Suppose there is a red node, x. It must
  have two black sons. We can delete x and one of
  its sub-trees, T1, and connect xs father to the
  other sub-tree, T2. The only property we need to
  check is 5 - but for any path in T1 there is a
  path with the same number of nodes it T2. So
  property 5 holds. Therefore the original tree
  wasnt minimal.

20
T3 q.2 - second part (continued)

• Claim An RB tree with no red nodes must be a
  complete binary tree.
• Proof Consider only the internal nodes. If this
  tree is not complete, there are missing nodes at
  the last level. Then there is a node with two
  paths to a leaf, with different lengths. Since
  all nodes are black, this violates property 5.
• Answer There is a single RB tree of black height
  h with minimal no. of internal nodes. It has 2h
  - 1 internal nodes.
