RoleBased Access Control RBAC Approach for DefenseinDepth

1

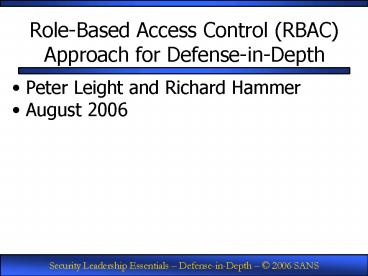

Role-Based Access Control (RBAC) Approach for
Defense-in-Depth

• Peter Leight and Richard Hammer
• August 2006

2
Role-Based Access Control (RBAC) Approach for
Defense-in-Depth

• What is Role-Based Access Control (RBAC)?
• What are the advantages to implementing RBAC?
• What are the challenges to implementing RBAC?
• How can RBAC be used as a framework for defense
  in Depth?
• How will the RBAC implementation standard help?

3
What is RBAC?

• Role-Based Access Control
• Permission to perform an operation on an object
  is assigned to roles, not to users
• Users are assigned to roles
• Roles are assigned permissions
• Users acquire their permissions based on the
  roles they are assigned

4
RBAC is Many-to-Many

• Users may be assigned many roles
• Roles may have many users assigned to them
• Roles may be assigned to many other roles
• Roles may be assigned many permissions
• Permissions may be assigned to many roles
• Permissions may be granted to perform many
  different types of operations on an object

5
RBAC Flow Diagram
6
What are the Advantages of RBAC?

• Once implemented RBAC simplifies system
  administration
• Strong support for separation of duties
• Good auditing support
• Considered best practice by many

7
RBAC Simplifies System Administration

• When a user changes positions
• Her roles are changed to reflect her new position
• Her replacement is assigned her old roles
• No need to remove users old access on each
  object
• If roles are well defined, the system
  administrator only needs to add a user to their
  assigned roles and the user has access to all the
  resources they require to complete their job

8
Separation of Duties

• Manages conflict of interest policy
• Reduces chances of fraud
• Spreads critical duties across roles and in turn
  users
• RBAC has built-in support for
• Static Separation of duties (SSD)
• Dynamic Separation of duties (DSD)

9
RBAC Improves Auditing

• User, role, and permission reviews are built into
  RBAC
• Much easier to determine if an object should be
  accessed from a role instead of a person
• Should Jane access the payroll object? ???
• Should the hotdog vendors role access the payroll
  object? NO !

10
Challenges Implementing RBAC

• Policy must be clearly defined or RBAC breaks
  down completely
• Roles must be created that reflect business needs
• Permissions for roles to access objects must be
  determined
• Membership is each role must be determined
• Up-front work requires a lot of time and effort
• RBAC standards have not resulted in compatible
  vendor implementations

11
RBAC as a DiD Framework

• Extend the concept of a user to include
• Computers or networks
• Agents (ex. Web front end accessing a database)
• Permission is approval to access or perform some
  action on an object
• Objects extended to include
• Data, databases or information container
• Computers, networks or network resources
• Programs or applications

12
RBAC for Network Design

• Use RBAC as the access mechanism for your entire
  network infrastructure
• Routers
• Firewalls
• VPNs
• VLANS
• Servers
• Granular access controls can ensure all
  parameters are correct before access is granted
• Joe might have access to financial data, but not
  from the wireless VLAN (Sensitive finance data
  should only be accessible from the office VLAN)
• Sally might have access to all external Internet
  sites, but only from her assigned IP address (HR
  determines lewd content of website but not from
  out in the cubicles)

13
Server Access Control

• RBAC allows granular access control to server
  resources based on roles
• Servers can use RBAC to control access
• Documents or document containers
• Resources (Printers, CDs, USB Ports, etc.)
• Applications (Database, WWW, FTP, etc.)
• Applications can restrict what data or reports a
  role can access

14
RBAC Standards

• Proposed NIST Standard for Role-Based Access
  Control (2001)
• Users, roles, permissions, operations, objects
• Core and Hierarchical RBAC
• Separation of duties
• Administrative functions, supportive System
  functions, review functions
• ANSI/INCITS 359 - 2004
• Draft NIST Role Based Access Control
  Implementation Standard - 2006

15
How the Standard Will Help

• It will give vendors a common model and language
• Will supply functional requirements that vendors
  must implement to become RBAC compliant
• Will help consumers choose products
• Will help products become interoperable

16
Conclusion

• RBAC is a great defense in depth model
• RBAC requires policy to be clearly defined before
  implementation
• RBAC does reduce system administration duties
  once implemented
• RBAC improves auditing and facilitates separation
  of duties
• An implementation standard is required before
  RBAC can fully realize its potential as a
  approach to defense-in-depth
