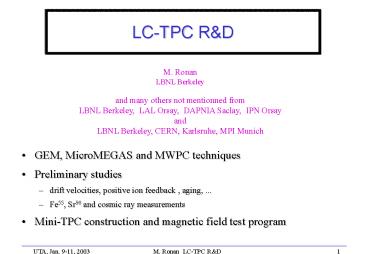

LC-TPC R

1
LC-TPC RD
M. Ronan LBNL Berkeley and many others not
mentionned from LBNL Berkeley, LAL Orsay,
DAPNIA Saclay, IPN Orsay and LBNL Berkeley,
CERN, Karlsruhe, MPI Munich

• GEM, MicroMEGAS and MWPC techniques
• Preliminary studies
• drift velocities, positive ion feedback , aging,
  ...
• Fe55, Sr90 and cosmic ray measurements
• Mini-TPC construction and magnetic field test
  program

2
Gas Electron Multiplier (GEM)

• High (100 mm) pitch small pad response function
• No ExB effects better resolution
• Direct electron signal no losses
• Efficient ion collection no gating grid ??
• Easy to build dead zones potentially small
• Robust to aging insensitive to LC backgrounds
• Multi-stage structures large gains (103-104)
• Low mass construction no wire frames

3
MicroMEGAS readout structures

• High (50 mm) pitch small pad response function
• No ExB effects better resolution
• Direct electron signal no losses
• Funnel effect very efficient ion collection
• Electron amplification independent of the gap to
  first order promising dE/dx
• Easy to build dead zones potentially small
• Robust to aging insensitive to LC backgrounds
• Good electro-mechanical stability large gains
  (103-104)
• Low mass construction no wire frames

4
Principle of operation

• Very

Drift space
5
Gain Stability
The gain variation is flat (maximal) as a
function of the gap around a few 10mm Thus a
MicroMEGAS TPC has a good potential for dE/dx
measurements.
6
Positive ion feed-back - funnel effect
Due to diffusion, when S2 small wrt avalanche
cloud size, the positive ions are unlikely to
follow the field lines back into the drift space.

• Very

S1
Ideal feedback Eamplification / Edrift
S2 / S1 Ions return to the grid related space
charge effects are suppressed
S2
7
Gas studies
Drift properties to obtain a high drift velocity
plateau at low E-field, an Ar-dominated carrier
is required
Hydrogen should be avoided because of neutron
background Use of CF4 as a quencher improves sT
8
Small-gap Wire TPC
MicroMEGAS TPC
0 -340 V - 640 V
0 2KV 0 - 300 V
55Fe
90Sr
wires
Cathode
grid
anode
Cathode
mesh
2mm 2mm 1cm
50 mm 1cm
9
Magnetic field tests

• The positive ion feedback doesn t depend on
  magnetic field for the Wire chamber or for
  MicroMEGAS

10
Large Mini-TPC Test Chamber

• Saclay 2 Tesla superconducting (MRI) magnet
• STAR Front-End (FEE) electronics Analog waveform
  sampling at 10-40 MHz, 1024 channels with
  amplifier-shape, SCA, 10 bit ADC, 512 time slices
  deep, low noise
• Modular VME data acquisition running VxWorks
  Stand-alone and MIDAS online systems, VB Pad
  Monitor, Java histogramming package
• Removable detector endplate plan to test
  MicroMEGAS, asymmetric Wire chamber, options for
  spreading signal

11
(No Transcript)
12
STAR READOUT ELECTRONICS TEST BENCH
VME processor
Pulse generator
Optical link
Mother board
Front end cards
13
(No Transcript)
14
CONCLUSION

• Amplification, drift velocities, diffusion,
  aging, positive ion feedback, ... are being
  studied for GEM, MicroMEGAS and MWPC TPC s
  operating with different gases and readout
  technologies.
• New results for a GEM TPC running on cosmic rays
  without a magnetic field.
• First operation of a MicroMEGAS TPC in a magnetic
  field.
• Strong multi-institution collaborations building
  GEM, MicroMEGAS and asymmetric Wire chamber
  Mini-TPCs for cosmic ray tests in high magnetic
  fields.
