Title: Software Overview

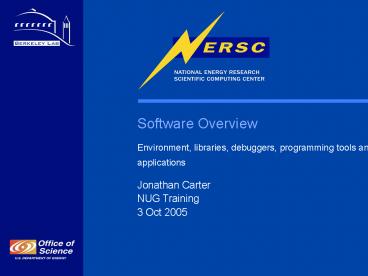

1
Software Overview Environment, libraries,
debuggers, programming tools and
applications Jonathan Carter NUG Training 3 Oct
2005
2
Overview
  • Environment
  • Libraries
  • Debuggers
  • Programming Tools
  • Applications

3
Environment
  • Suse Linux
  • Linux Networx HPC software stack
  • Pathscale compilers
  • PBS Pro Batch System
  • GPFS HOME and SCRATCH file systems

4
Environment (cont)
  • Passwords
  • NIM password, use NIM to change
  • Shells
  • Default shell is tcsh, to change use NIM
    interface
  • Startup files
  • Read-only, use ltnamegt.ext if you want to add
    customizations
  • fixdots command will repair files

5
Environment (cont)
  • Access to libraries, tools and applications is
    controlled via modules
  • Number of modules reduced compared with seaborg,
    since we only have 64-bit ABI and fewer software
    versions

6
Libraries
  • Math
  • ACML, fftw, NAG, parpack, scalapack, superlu,
    (imsl, petsc)
  • I/O
  • hdf, hdf5, netcdf
  • MPI I/O available via MVAPICH
  • Visualization
  • ncar

7
Libraries (cont)
  • ACML
  • Optimized for AMD processors
  • BLAS 1-3, FFT and LAPACK
  • fast math functions (log is 90 cycles instead
    of 120)
  • vector math functions, e.g. vrda_log(n, x, y)
    is roughly twice as fast as log at ngt20.

8
Libraries (cont)
  • Fortran I/O
  • Intel/AMD hardware is little-endian, Power is
    big-endian, so binary data is incompatible
  • pathf90 offers several features to write binary
    data in big-endian format

9
Libraries (cont)
  • pathf90 options
  • -byteswapio writes all data in format opposite to
    that of native processor
  • -conversion native, little_endian, big_endian
  • assign command
  • FILENV.assign
  • export FILENV
  • assign N mips u10

10
Libraries (cont)
  • Many libraries are linked at runtime, so
    LD_LIBRARY_PATH must include a path to each
    library linked against
  • Modules environment takes care of this provided
    you load at compile time and at run time

11
Debuggers
  • Totalview and gdb available for serial
    applications

module load totalview totalview progname
corefile gdb progname corefile
12
Debuggers (cont)
  • Totalview and gdb are coming for parallel
    applications
  • gdb opens xterm per processor

module load totalview mpirun tv np procs
progname mpirun debug np procs progname
13
Debuggers (cont)
  • Generating core files
  • Serial applications
  • ulimit -S -c unlimited
  • Parallel applications, make shell script
    progname.sh and run this via mpirun (this problem
    will be resolved by PBS bugfix)
  • !/bin/bash
  • ulimit -S -c unlimited
  • exec progname

14
Debuggers (cont)
  • Useful Pathscale compiler options
  • Use g flag to help debugging
  • Use trapuv to set uninitialized (local,
    automatic, alloca() not Fortran allocatable)
    variables to NAN

15
Debuggers (cont)
  • Further information on Totalview
  • Etnus tutorial http//www.etnus.com/TotalView/star
    ted/getting_started.html
  • LLNL tutorial
  • http//www.llnl.gov/computing/tutorials/totalview/

16
Programming Tools
  • AMD CodeAnalyst suite of tools to optimize code
    for Opteron coming soon
  • ipm mpi overhead and performance report
  • papi interface to hardware performance counters
  • tau suite of tools enabling performance
    analysis of application codes
  • valgrind multiple tools to check memory use,
    profile cache use, detect data race conditions in
    threaded applications

17
Applications
  • Chemistry Materials Science
  • GAMESS, Gaussian, Gromacs, MOLPRO, NWChem, NAMD,
    VASP
  • Math
  • maple, matlab, mathematica
  • Visualization
  • idl, vmd
  • Other
  • Subversion (client)
