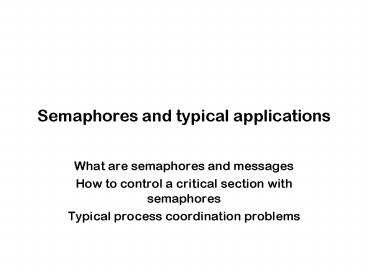

Semaphores and typical applications

1
Semaphores and typical applications

• What are semaphores and messages
• How to control a critical section with semaphores
• Typical process coordination problems

2
Semaphore code from Stevens (QEPD)
include ltsys/types.hgt // The header file
info include ltsys/ipc.hgt include ltsys/sem.hgt
define KEY ((key_t) 54321) // an unlikely key
define COUNT 20000 struct sembuf op_up1
0, 1, 0 // A useful trick for semops struct
sembuf op_down1 0, -1, 0 // use -1 for
down use this in wrappers main() register int
i, semid // Always protect system code if (
(semid semget(KEY, 1, 0666 IPC_CREAT)) lt 0)
err_sys("semget error") for (i 0 i lt COUNT
i) if (semop(semid, op_up0, 1) lt 0)
err_sys("semop up error") if (semop(semid,
op_down0, 1) lt 0) err_sys("semop down error")
if (semctl(semid, 0, IPC_RMID, (struct
semid_ds ) 0) lt 0) err_sys("IPC_RMID error")
exit(0)
The header
3
Concurrency - From last time

• The theoretical core of OS
• An OS creates a set of processes that run
  concurrently
• A process is like a person - it has
• a stream of consciousness
• possessions - memory, files, data
• is created, reproduces, dies
• interacts with other processes
• In actuality, it is a program in execution
• Concurrent process misbehaviors
• Race conditions - unpredictable results because
  processes simultaneously modify data or devices
• Deadlocks - Each has what the other wants
• Starvation - some processes go hungry - others
  eat well

4
Some operating system ideas - also review

• Everything is a file - even devices
• This allows a program to work with human input,
  or a device, or a temporary or permanent file
• Interrupt-driven behavior
• Example - windows - process is simultaneously
  sensitive to events from mouse, keyboard, process
  subsystem, and window manager
• Caching - Foreground and background copies
• Used in
• Cache memory
• Swapping
• The disk block cache - recent transactions are in
  memory
• Networking utilities

5
Processes and their states

• The process state includes the following
• Running/ready/blocked (waiting on an
  event/events)
• Priority
• Kernel/User mode
• In-memory/swapped
• Process ID
• Priority
• The process owns
• U-area (but user cant examine/modify it)
• Entries in the system open-file table
• Its own file control blocks (linked to the system
  table)
• Its own memory space

6
The system process table

• Used for scheduling and control of processes
• Scheduler acts on timer interrupt or a process
  state change
• It schedules the highest-priority process that is
  ready
• It causes a context switch (gives the process
  control)
• This mechanism
• Gives system and I/O processes high priority
• Keeps the CPU puercos from monopolizing
• Interrupts are outside process country
• This avoids make a context switch for each
  interrupt
• It means the interrupt service routines use only
  the kernels memory

7
Mutual Exclusion - software solutions

• Unsuccessful solutions (on separate slides)
• Strict alternation
• Algorithms where mutual exclusion fails
• Petersons algorithm
• Description of Bakery Algorithm
• Just like Baskin-Robbins - incoming process takes
  a number
• Since two users can grab same number,
  lowest-number process gets priority

8
Avoiding busy waiting - Semaphores and messages

• Classical semaphores
• The semaphore is an ADT with a counter, a process
  queue, and two operations
• The down operation sleeps enqueued if the counter
  is zero, and then decrements the counter
• The up operation increments the counter and
  awakens a sleeper if the counter was 0.
• The down operation enters a critical section, the
  up leaves it.
• Messages
• Reliable messages to an administrator work like a
  down or up
• Messages and semaphores are equivalent
• Thats why

9
Semaphores and messages - continued

• Mistakes are easy
• Deadlock
• Gateway-controlling and resource-controlling
  semaphores invoked in wrong order - deadlocks and
  slow performance
• Example of a deadlock creator

//process 0 Wait(a) Wait(b) //critical
section Signal(a) Signal(b)
//process 1 Wait(b) Wait(a) //critical
section Signal(b) Signal(a)
a
b
If process 1 is like process 0 (semaphores a and
b requested In same order, this deadlock cant
occur
10
Producer-consumer problem again

• Definition
• Producers
• They produce items and place in a buffer as long
  as one is available.
• They wait (and stop producing) when no buffer is
  available
• Consumers
• They wait until a buffer contains an item and
  then take it
• They then consume the item
• What needs protection
• The buffer place and take operations, not the
  producing or consuming
• Possible deadlock
• Producer is waiting for a consumer to take, but
  consumer cant take because producer has
  buffering operation locked
• This problem cant be solved with only one
  semaphore

11
Producer-consumer with general semaphores

• Global variables
• Item buffersNbuffers
• Int last_filledN_buffers, oldest_item0,
  number_filled0
• // underrated programming technique, give
  descriptive and nonambiguous names, not i, j, in,
  out
• Semaphores
• Buffer_availablen,items_available0pool_availabl
  e1
• Technique
• Circular buffering step operation
• Next (next1)N_buffers // steps pointer from
  end to start

12
The code itself
Producer() While(1) New_itemproduce() Wait
(buffer_available) Wait (pool_available) Buffers
next_availablenew_item Countstep(last_fille
d) Signal(items_available) Signal(pool_available)

consumer() While(1) Wait (items_available) Wa
it (pool_available) Old_itemBuffersoldest_item
Count--step(oldest_item) Signal(buffer_availabl
e) Signal(pool_available) New_itemproduce()

13
Language Mechanisms - Monitors

• Monitor is a class with mutual exclusion it has
• Member functions
• Data members
• Condition variables (user processes wait on
  these)
• Two ways to enter
• Normal
• Returning from wait on a condition variable
• Two ways to leave
• Normal (return from a member function)
• Waiting on a condition variable
• Monitors can be implemented by
• Preprocessor that generates semaphore code
• Compiler modification

14
Classical IPC problems

• Producer-consumer
• Scenario
• Producer produces information
• Consumer consumes it
• Both must wait on buffer availability
• Problem resembler disk I/O and print servers
• Code is in book - both C and monitor
• Readers-Writers
• Scenario
• Readers can write whenever no writer is active
• Writers must have solitude
• Problem resembles database
• Code in book - both C and monitor
• Dining Philosophers
• Scenario
• N philosophers think, wait for chopsticks, and
  eat
• Problem is useless but illustrative
• Code - both C and monitor

15
System V IPC

• xxxget call
• int xxxget(key, type-dependent, flags)
• returns
• Positive number, which is the instance ID
• For error
• xxxop call
• The basic operation
• Works on regions, groups of semops, or message
  queues
• xxxctl call
• Does specialized operations removes instance,
  sets values and permissions

16
Stevens semaphore get
include ltsys/types.hgt include ltsys/ipc.hgt inclu
de ltsys/sem.hgt define KEY ((key_t)
98765L) define PERMS 0666 main() int i,
semid for (i 0 i lt 1000 i) if (
(semid semget(KEY, 1, PERMS IPC_CREAT)) lt
0) err_sys("can't create semaphore") printf
("semid d\n", semid) if (semctl(semid, 0,
IPC_RMID, (struct semid_ds ) 0) lt
0) err_sys("can't remove semaphore")
17
include "msgq.h" main() int readid,
writeid / Open the message queues. The
server must have already created them.
/ if ( (writeid msgget(MKEY1, 0)) lt
0) err_sys("client can't msgget message queue
1") if ( (readid msgget(MKEY2, 0)) lt
0) err_sys("client can't msgget message queue
2") client(readid, writeid) / Now we
can delete the message queues. / if
(msgctl(readid, IPC_RMID, (struct msqid_ds ) 0)
lt 0) err_sys("client can't RMID message queue
1") if (msgctl(writeid, IPC_RMID, (struct
msqid_ds ) 0) lt 0) err_sys("client can't RMID
message queue 2") exit(0)
18
Wrapper function for msgsnd
mesg_send(id, mesgptr) int id / really an
msqid from msgget() / Mesg mesgptr /
Send the message - the type followed by the
optional data. / if (msgsnd(id, (char )
(mesgptr-gtmesg_type), mesgptr-gtmesg_len, 0)
! 0) err_sys("msgsnd error") / Receive
a message from a System V message queue. The
caller must fill in the mesg_type field with the
desired type. Return the number of bytes in
the data portion of the message. A 0-length
data message implies end-of-file. /
19
Wrapper for msgrcv
int mesg_recv(id, mesgptr) int id / really an
msqid from msgget() / Mesg mesgptr int n
/ Read the first message on the queue of the
specified type. / n msgrcv(id, (char )
(mesgptr-gtmesg_type), MAXMESGDATA, mesgptr-gt
mesg_type, 0) if ( (mesgptr-gtmesg_len n) lt
0) err_dump("msgrcv error") return(n) / n
will be 0 at end of file /
20
Header for both wrapper functions
/ Definition of "our" message. You may
have to change the 4096 to a smaller value, if
message queues on your system were configured
with "msgmax" less than 4096. / define MAXMESG
DATA (4096-16) / we don't want sizeof(Mesg)
gt 4096 / define MESGHDRSIZE (sizeof(Mesg) -
MAXMESGDATA) / length of mesg_len and
mesg_type / typedef struct int mesg_len /
bytes in mesg_data, can be 0 or gt 0 /
long mesg_type / message type, must be gt 0 /
char mesg_dataMAXMESGDATA Mesg
21
General pattern for an IPC example

• Main program
• Create the IPC (xxxget)
• Initialize the IPC (xxxctl)
• Set up the cleanup() function
• Create children to be the actors using a loop
  containing fork()
• Does monitoring function or creates a monitor
• note Global variables are usually needed
• Child actors
• Can be persistent (barbers, philosophers)
• Can be temporary (readers, customers, Loreina
  says writers are immortal)
• Either live forever (with while loop) if immortal
  or exit(0) if mortal

22
Some specifics

• Definition
• Decide what IPC is needed and give valid names
• Decide what other global variables are needed and
  what protection is needed
• Write pseudocode, then fill in to readable code
• Program operation
• Examples can be done as real-time (uses sleep())
  or discrete-time simulation
• DTS is faster, gives better statistics, but takes
  some thought
• Terminal output can be a problem output from
  child needs a flush, especially if control
  characters are involved
• Think about the statistics, there is usually a
  dimensionless utilization parameter or ratio
• Example of this is ratio of haircutting capacity
  to offered business in the barbershop

23
Example of a cleanup() function
void cleanup() if (0gt(msgctl(semid, IPC_RMID,
(struct msqid_ds ) 0) ) error_exit(couldnt
remove Message queue) exit(0) / code
segment to set up signals for cleanup extern void
cleanup for (int signal0signallt32signal
) signal(signal,cleanup)

• Comments
• Cleanup must be declared extern or the signal
  mechanism wont find it
• This wont work for all signals, notably 9
• Response to 9 (SIGKILL) isnt alterable because
  it is important to be able to really control the
  system

24
Methodology for the sleepy barber

• Semaphores
• awaitingBarber
• awaitingCustomer
• mutex controls waiting-room variables, used
  whenever a customer arrives or a haircut starts
• Global variables
• emptyChairs -
