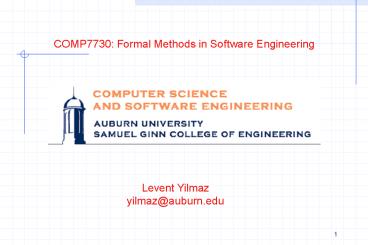

COMP7730 Formal Methods in Software Engineering
Levent Yilmaz yilmaz_at_auburn.edu
2
Outline

• Overview of the syllabus
• http//www.eng.auburn.edu/yilmaz/comp7730
• Introduction to formal methods
• Why formal methods
• A historical perspective
• Myths about formal methods

3
Introduction to formal methods

• Jeannette M. Wing (1990). A specifiers
  introduction to formal methods. IEEE Computer,
  23(9)8-24, September 1990.
• Formal methods are mathematically based
  techniques that provide frameworks within which
  people can
• specify,
• develop, and
• verify systems in a systematic, rather than
  ad-hoc manner.
• They provide the means of
• proving that a system has been implemented
  correctly,
• proving properties of a system without
  necessarily running it.

4
High quality software

• The importance of high quality software
• What are the characteristics of high quality
  software?
• The need for precision in the specification of
  software

5
Top 10 excuses for low quality software

• Top 10 Replies by Programmers when their programs
  do not work
• 10. "That's weird..."
• 9. "It's never done that before."
• 8. "It worked yesterday."
• 7. "It must be a hardware problem."
• 6. I haven't touched that module in weeks!"
• 5. "You must have the wrong version."
• 4. "Somebody must have changed my code."
• 3. "Did you check for a virus on your system?"
• 2. "You can't use that version on your system."
• And the Number One Reply by Programmers when
  their programs don't work
• 1. "I thought I fixed that."

6
The need to produce correct software systems

• As computers become cheaper, smaller, and more
  powerful, their spread through our technological
  society becomes more pervasive.

7
Why study formal methods?

• The software industry has a long standing and
  well earned reputation for failing to deliver on
  its promises. In the September 1994 issue of
  Scientific American, a number of sobering
  examples are given and it is observed that
  "despite 50 years of progress, the software
  industry remains years -- perhaps decades --
  short of the mature engineering discipline needed
  to meet the needs of an information-age society."

• In an article in the January/February 1997 issue
  of I.E.E.E. Software, Luqi and Goguen cite
  staggering cost estimates of software development
  failures at 81 billion for 1995, and 100
  billion for 1996.
• In his Web article, Goguen calls attention to
  several highly visible failures the cancellation
  of IBM's 8 billion contract with the FAA for a
  new nation-wide air control system, the DOD
  cancellation of a 2 billion contract with IBM to
  modernize its information systems, the failure of
  the software for delivering real-time sports data
  at the 1996 Olympics, the one and one-half year
  delay in the United Airlines automated baggage
  handling system at the new Denver airport at a
  cost of 1.1 million per day, and the list could
  go on.
• A reading of Peter Neumann's book, Computer
  Related Risks, will reveal that such problems are
  not at all new, although they appear to be
  growing. Neumann even points out deaths which
  resulted from radiation overdoses from a
  computer-based radiation-therapy system in the
  mid-1980s
• It is clear that there is no price that can
  assure the success of software projects with the
  current technology. For large complex projects an
  ad hoc approach has proven inadequate. The lack
  of formalization in key places makes software
  engineering overly sensitive to the foibles that
  are inevitable in the highly technical and
  detailed activities associated with software
  creation. Aids to precision and cross-checking
  are essential, and this is precisely the
  objective of formal methods.

8
The role of formal methods

• Formal methods reveal ambiguities,
  incompleteness, and inconsistencies.
• One tangible product of applying a formal method
  is a formal specification.
• Specification languages - ltSyn, Sem, Satgt
• Syntactic domains, Semantic domains, and
• Satisfies relation
• Desirable properties of specifications
• Proving properties of specificands

9
Pragmatics

• Users
• Uses
• Requirements analysis
• System design
• System verification and validation
• System documentation

10
Characteristics

• Model vs. property oriented
• Visual languages
• Executable
• Tool-support

11
A historical perspective

• Syntax necessary but insufficient to describe
  the meaning of programs.
• Testing What is wrong with program testing?
• Verification The modern concept of program
  verification was first introduced by Floyd in
  1967.

12
The Floyd verification model
13
A brief survey of techniques

• Axiomatic specification and verification
• Weakest preconditions
• Guarded commands
• Algebraic specification
• Statecharts and model checking

14
Limitations of formal methods

• Myth 1 formal methods guarantee perfect software
  and eliminate the need for testing.
• Myth 2 formal methods are all about proving
  programs correct.
• Myth 3 formal methods are only useful in
  safety-critical systems.
• Myth 4 application of formal methods requires
  highly trained mathematicians.
• Myth 5 applications of formal methods increases
  development costs.
• Myth 6 formal methods are unacceptable to users.
• Myth 7 formal methods are not used on real
  large-scale systems.

15
Model-based Specification- What is Z?

• Z is a formal specification language for software
  systems. It supports
• Representational and
• Procedural abstraction
• In Z operations are specified by their
  input/output behavior.
