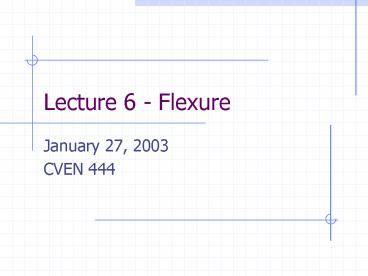

Lecture 6 - Flexure

• January 27, 2003
• CVEN 444

2
Lecture Goals

• Basic Concepts
• Rectangular Beams
• Non-uniform beams
• Balanced Beams

3
Example
For the following example find centroid and
moment of inertia for an uncracked and cracked
section and compare the results.
Es 29000 ksi Ec 3625 ksi d 15.5 in b 12
in. h 18 in. Use 4 7 bars for the steel.
4
Example
A 7 bar has an As 0.6 in2
5
Example
The uncracked centroid is
6
Example
The uncracked moment of inertia
7
Example
The cracked centroid is defined by
8
Example
The cracked moment of inertia is
9
Example
Notice that the centroid changes from 9.47 in. to
5.62 in. and the moment of inertia decreases from
6491 in4 to 2584 in4 . The cracked section loses
more than half of its strength.
10
Flexural Stress
Basic Assumptions in Flexure Theory

• Plane sections remain plane ( not true for deep
  beams h gt 4b)
• The strain in the reinforcement is equal to the
  strain in the concrete at the same level, i.e. es
  ec at same level.
• Stress in concrete reinforcement may be
  calculated from the strains using s-e curves for
  concrete steel.

11
Flexural Stress
Additional Assumptions for design (for
simplification)

• Tensile strength of concrete is neglected for
  calculation of flexural strength.
• Concrete is assumed to fail in compression, when
  ec (concrete strain) ecu (limit state) 0.003
• Compressive s-e relationship for concrete may be
  assumed to be any shape that results in an
  acceptable prediction of strength.

12
Flexural Stress
The concrete may exceed the ec at the outside
edge of the compressive zone.
13
Flexural Stress
The compressive force is modeled as Cc k1k3fc
bc at the location x k2c
14
Flexural Stress
The compressive coefficients of the stress block
at given for the following shapes. k3 is ratio of
maximum stress at fc in the compressive zone of a
beam to the cylinder strength, fc (0.85 is a
typical value for common concrete)
15
Flexural Stress
The compressive zone is modeled with a equivalent
stress block.
16
Flexural Stress
The equivalent rectangular concrete stress
distribution has what is known as a b1
coefficient is proportion of average stress
distribution covers.
17
Flexural Stress
Requirements for analysis of reinforced concrete
beams
1 Stress-Strain Compatibility Stress at a
point in member must correspond to strain at a
point.
2 Equilibrium Internal forces balances with
external forces
18
Flexural Stress
Example of rectangular reinforced concrete beam.
(1) Setup equilibrium.
19
Flexural Stress
Example of rectangular reinforced concrete beam.
(2) Find flexural capacity.
20
Flexural Stress
Example of rectangular reinforced concrete beam.
(2) Find flexural capacity.
21
Flexural Stress
Example of rectangular reinforced concrete beam.
(3) Need to confirm es gt ey
22
Flexural Stress Rectangular Example
Example of rectangular reinforced concrete beam.
Given a rectangular beam fc 4000 psi fy 60
ksi (4 7 bars) b 12 in. d 15.5 in. h 18
in. Find the neutral axis. Find the moment
capacity of the beam.
23
Flexural Stress Rectangular Example
Determine the area of steel, 7 bar has 0.6
in2. The b value is b1 0.85 because the
concrete has a fc 4000 psi.
24
Flexural Stress Rectangular Example
From equilibrium (assume the steel has yielded)
The neutral axis is
25
Flexural Stress Rectangular Example
Check to see whether or not the steel has yielded.
Check the strain in the steel
Steel yielded!
26
Flexural Stress Rectangular Example
Compute moment capacity of the beam.
27
Flexural Stress Non-Rectangular Example
For a non-rectangular beam
For the given beam with concrete rated at fc
6000 psi and the steel is rated at fs 60,000
psi. d 12.5 in.
(a) Determine the area of the steel for a
balanced system for shown area of concrete. (b)
Determine the moment capacity of the beam.
Mn (c) Determine the NA.
28
Flexural Stress Non-Rectangular Example
For a non-rectangular beam
The area of the concrete section is
The force due to concrete forces.
29
Flexural Stress Non-Rectangular Example
Using equilibrium, the area of the steel can be
found
30
Flexural Stress Non-Rectangular Example
Find the center of the area of concrete area
31
Flexural Stress Non-Rectangular Example
The moment capacity of the beam is
32
Flexural Stress Non-Rectangular Example
Compute the b1 value
33
Flexural Stress Non-Rectangular Example
Find the neutral axis
