Streaming Supercomputer Strawman Architecture

1

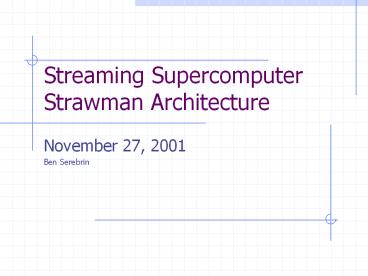

Streaming Supercomputer Strawman Architecture

• November 27, 2001
• Ben Serebrin

2
High-level Programming Model

• Streams are partitioned across nodes

3
Programming Partitioning

• Across nodes is straightforward domain
  decomposition
• Within nodes we have 2 choices (SW)
• Domain decomposition
• Each cluster receives neighboring record

4
High-level Programming Model

• Parallelism within a node

5
Streams vs. Vectors

• Compound operations on records
• Traverse operations first and records second
• Temporary values encapsulated within kernel
• Global instruction bandwidth is of kernels
• Group whole records into streams
• Gather records from memory one stream buffer
  per record type

• Simple operations on vectors of elements
• First fetch all elements of all records then
  operate
• Large set of temporary values
• Global instruction bandwidth is of many simple
  operations
• Group like-elements of records into vectors
• Gather elements from memory one stream buffer
  per record element type

6
Example Vertex Transform
input record
result record
intermediate results
7
Example

• encapsulate intermediate results
• enable small and fast LRFs

• large working set of intermediates
• must use the global RF

8
Instruction Set Architecture

• Machine State
• Program Counter (pc)
• Scalar Registers part of MIPS/ARM core
• Local Registers (LRF) local to each ALU in
  cluster
• Scratchpad Small RAM within the cluster
• Stream Buffers (SB) between SRF and clusters
• Serve to make SRF appear multi-ported

9
Instruction Set Architecture

• Machine state (continued)
• Stream Register File (SRF) Clustered memory that
  sources most data
• Stream Cache (SC) to make graph stream accesses
  efficient. With SRF or outside?
• Segment Registers A set of registers to provide
  paging and protection
• Global Memory (M)

10
ISA Instruction Types

• Scalar processor
• Scalar Standard RISC
• Stream Load/Store
• Stream Prefetch (graph stream)
• Execute Kernel
• Clusters
• Kernel Instructions VLIW instructions

11
ISA Memory Model

• Memory Model for global shared addressing
• Segmented (to allow time-sharing?)
• Descriptor contains node and size information
• Length of segment (power of 2)
• Base address (aligned to multiple of length)
• Range of nodes owning the data (power of 2)
• Interleaving (which bits select nodes)
• Cache behavior? (non-cached, read-only, (full?))
• No paging, no TLBs

12
ISA Caching

• Stream cache improves bandwidth and latency for
  graph accesses (irregular structures)
• Pseudo read-only (like a texture cachechanges
  very infrequently)
• Explicit gang-invalidation
• Scalar Processor has Instruction and Data caches

13
Global Mechanisms

• Remote Memory access
• Processor can busy wait on a location until
• Remote processor updates
• Signal and Wait (on named broadcast signals)
• Fuzzy barriers split barriers
• Processor signals Im done and can continue
  with other work
• When next phase is reached the processor waits
  for all other processors to signal
• Barriers are named
• can be implemented with signals and atomic ops
• Atomic Remote Operations
• Fetchop (add, or, etc )
• CompareSwap

14
Scan Example

• Prefix-sum operation
• Recursively
• Higher level processor (thread)
• clear memory locations for partial sums and ready
  bits
• signal Si
• poll ready bits and add to local sum when ready
• Lower level processor
• calculate local sum
• wait on Si
• write local sum to prepared memory location
• atomic update of ready bit in higher level

15
System Architecture
16
Node Microarchitecture
17
uArch Scalar Processor

• Standard RISC (MIPS, ARM)
• Scalar ops and stream dispatch are interleaved
  (no synchronization needed)
• Accesses same memory space (SRF global memory)
  as clusters
• I and D caches
• Small RTOS

18
uArch Arithmetic Clusters

• 16 identical arithmetic clusters
• 2 ADD, 2 MUL, 1 DSQ, scratchpad (?)
• ALUs connect to SRF via Stream Buffers and Local
  Register Files
• LRF one for each ALU input, 32 64-bit entries
  each
• Local inter-cluster crossbar
• Statically-scheduled VLIW control
• SIMD/MIMD?

19
uArch Stream Register File

• Stream Register File (SRF)
• Arranged in clusters parallel to Arithmetic
  Clusters
• Accessible by clusters, scalar processor, memory
  system
• Kernels refer to stream number (and offset?)
• Stream Descriptor Registers track start, end,
  direction of streams

20
uArch Memory

• Address generator (above cache)
• Creates a stream of addresses for strided
• Accepts a stream of addresses for gather/scatter
• Memory access
• Check In cache?
• Check In local memory?
• Else Get from network
• Network
• Send and receive memory requests
• Memory Controller
• Talks to SRF and to Network

21
Feeds and Speeds in node

• 2 GByte DRDRAM local memory
• 38 GByte/s
• On-chip memory 64 GByte/s
• Stream registers 256 GByte/s
• Local registers 1520 GByte/s

22
Feeds and Speeds Global

• Card-level (16 nodes) 20 GBytes/sec
• Backplane (64 cards) 10 GBytes/sec
• System (16 backplanes) 4 Gbytes/sec
• Expect lt 1 msec latency (500 ns?) for memory
  request to random address

23
Open Issues

• 2-port DRF?
• Currently, the ALUs all have LRFs for each input

24
Open Issues

• Is rotate enough or do we want fully random
  access SRF with reduced BW if accessing same
  bank?
• Rotate allows arbitrary linear rotation and is
  simpler
• Full random access requires a big switch
• Can trade BW for size

25
Open Issues

• Do we need an explicitly managed cache (for
  locking root of a tree for example)?

26
Open Issues

• Do we want messaging (probably yes)
• allows elegant distributed control
• allows complex fetchops (remote procedures)
• can build software coherency protocols and such
• Do we need coherency in the scalar part

27
Open Issues

• Is dynamic migration important?
• Moving data from one node to another
• not possible without pages or COMA

28
Open Issues

• Exceptions?
• No external exceptions
• Arithmetic overflow/underflow, div by 0, etc.
• Exception on cache miss? (Can we guarantee no
  cache misses?)
• Disrupts stream sequencing and control flow
• Interrupts and scalar/stream sync
• Interrupts from Network?
• From stream to scalar? From scalar to stream?

29
Experiments

• Conditionals Experiment
• Are predications and conditional stream
  sufficient?
• Experiment with adding instruction sequencers for
  each cluster (quasi-MIMD)
• Examine cost and performance
