SF2VHD: A Stateflow to VHDL Translator

1

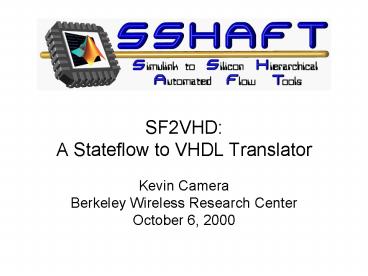

SF2VHDA Stateflow to VHDL Translator

• Kevin CameraBerkeley Wireless Research
  CenterOctober 6, 2000

2
Overview

• Ultimate goal generate a single-chip radio from
  its algorithmic description by turning the key
• Fundamental components
• Library of datapath functional units based on
  precisely characterized modules
• Intelligent and predictable placement, routing,
  and clock tree generation
• Accurate prediction of overall hardware
  efficiency (including power, speed, area, etc.)
• Effortless definition and synthesis of control
  logic

3
Program Characteristics

• Written in C with flex/bisonfront end
• Built in UNIX, portable to Win32
• Execution divided into parsingand code
  generation
• MDL file streamed into object-based
  representation of state machine
• Object structure traversed to generate VHDL
• Stored in SSHAFT CVS repository
• /tools/sshaft/src/sf2vhd on Sun cluster

4
Design Flow Integration

• Design flow primarily driven by subsystem
  parameters in Simulink
• The ICMacro type marks a subsystem as one which
  can be created by a generator
• Setting the generator to SF2VHD will have the
  flow call the program and synthesize the results
• All Stateflow charts must be in a separate
  library than the chip design itself
• Alternatively, can run SF2VHD manually and use
  the generator for synthesizing custom VHDL

5
Stateflow Charts

• Charts are the highest level of the hierarchy
• Each chart will become an entity in its own VHDL
  file
• Charts must have unique names
• No more than 100 charts in the whole design

6
Stateflow States

• States can be hierarchical
• Each parent (including the chart) must have an
  initial transition
• Only OR decomposition is allowed
• History junctions are not supported
• Evaluation is top-down
• Actions are allowed for entry and during (exit
  not supported)

7
Stateflow Transitions

• No conditions or junctions are allowed on initial
  transitions
• Regular transitions can only have conditions and
  condition actions
• Events are currently not supported (implied
  clocks)
• Transition-taken actions are not implemented
• Transitions must be external
• Junctions are allowed, although not shown here

8
Stateflow Data

• Data can be
• Input
• Output
• Local
• Constant
• Inputs and outputs become ports of the VHDL
  entity
• Data ranges should be explicitly set on integers
• Initial values are used to determine reset
  behavior
• Data could be defined local to each state, but
  SF2VHD flattens all data during parsing

9
Stateflow MDL Syntax
Stateflow chart id 2 name "substates/subs
tates" windowPosition 72 104.25 465
574.5 viewLimits 1.875 423.375 0
538.5 screen 1 1 1280 1024 1.333333333333333
treeNode 0 3 0 0 firstTransition 9 machine
1 decomposition CLUSTER_CHART firstData 19
chartFileNumber 1 state id 3 labelString
"Saturate\n" "entry modeout
0" position 26.75 69.19 342.5
192.82 fontSize 10 chart 2 treeNode 2 4 0
6 firstTransition 10 type OR_STATE decompos
ition CLUSTER_STATE transition
id 9 labelPosition 90.23 26.13 6.75
13.5 fontSize 10 src intersection 0 0
0 0 90.5 15.75 dst id 3 intersectio
n 1 0 -1 0.18 90.5 69.19 midPoint 90.5
32.11019662417016 chart 2 linkNode 2 0
13 dataLimits 88.09 92.90 15.75 69.19

• Textual description of Stateflow charts is
  included at the end of the MDL file
• Less than1/3 of statements are used by SF2VHD
• Mostly graphical information
• Most important information
• Node numbers
• Hierarchy data
• Label strings and code

10
Mapping Methodology

• Every local and output datum has a latched
  signal, a next signal, and a variable
• Boolean data is implemented as BIT
• All uint and int data is implemented as INTEGER
  with range as specified in Stateflow
• Selection of data types limits available
  operations, will be changed to IEEE types later

constant limit integer 16 signal mode_SIG
bit signal count_NEXT integer range 0 to
15 variable modeout_VAR bit
11
Mapping Methodology

• Each state is represented in a case statement
• If/Elsif block checks all transitions top-down
• Junctions result in cascaded if/else statements
• Else statement contains during actions for
  current state and all parents

case state_SIG is when 0 gt -- State
State1 if ( trans1 ) then -- Enter new
state elsif ( trans2 ) then -- Junction
reached if ( trans3 ) then -- Enter new
state end if else -- During
actions end if
12
Mapping Methodology

• For each successful transition
• All transition conditional actions are performed
• Destination state is found (may traverse child
  states)
• All state entry actions are performed for
  destination state and all parent states

if ( trans1 ) then -- Conditional actions --
Set destination state -- All parent entry
actions -- New state entry actions elsif (
trans2 ) then -- Conditional actions -- Set
destination state -- All parent entry
actions -- New state entry actions . . .
13
VHDL Code Structure Entity

• Entity declaration
• Ports for each input and output, plus clock and
  reset

entity substates is port(signal mode in bit
signal modeout out bit signal count
out integer range 0 to 15 signal SFRESET
in bit signal BCLK in bit) end
substates
14
VHDL Code Structure Behavior
process logical(all_signals) . . . mode_VAR
mode_SIG count_VAR count_SIG state_VAR
state_SIG . . . case STATE_VAR is . . . if
(mode_VAR 1) then count_VAR
count_VAR 1 state_VAR 3 . .
. end case . . . count_NEXT lt
count_VAR state_NEXT lt state_VAR . . . end
process

• Logical process (sensitive to all data signals)
• Initialize all variables to the previously
  latched signal value
• Make all next state and output operations on
  variables
• Assign outputs and next state signals to results

15
VHDL Code Structure Behavior
process sync(BCLK) if (rising(BCLK)) then if
(SFRESET 1) then . . . count_SIG
lt count_NEXT state_SIG
lt state_NEXT . . . else . .
. count_SIG lt 0 state_SIG lt 0 . .
. end if end if end process

• Synchronous process (sensitive to only the clock)
• Latch all output and next state values to
  registers
• or if reset is asserted low, latch initial
  conditions

16
Design Limitations

• Limited number of objects can be handled
• No conditions can be placed on initial
  transitions
• No support for events (yet?)
• State exit and transition-taken actions ignored
• History junctions and AND states not supported
• Transitions must be external and must be
  contained in the parent state
• Shifting is not supported with current data types

17
Synthesis

• Synthesis is performed within the flow using
  Design Compiler
• Rough estimates of area and timing
• VHDL should be compatible with other synthesis
  tools
• No Synopsys-specific statements or packages are
  used

18
State Machine Architecture

• Extended finite state machine
• Almost any C operator can be used in action
  statements
• Z A B C could be placed on any transition?
• Mealy-style outputs
• Outputs are pure combinational functions of
  inputs and current state
• However, outputs and local data are latched to
  preserve previous values

19
Logical Verification

• Design flow generates an HSPICE netlist from the
  EDIF output of Design Compiler
• EPIC simulations are compared with Simulink test
  vectors
• Simulink vectors converted to EPIC format via
  m2epic.pl
• Verification script reports all mismatches
  between Simulink and EPIC outputs
• Early support for direct VHDL simulation with
  Synopsys VSS

20
Reference Design SCF1

• Digital decimation filter designed by Paul Husted
• Four verified charts
• Data_Control (28 states)
• Pilot_Control (25 states)
• Pilot_Ack_Control (11 states)
• PLL_Control (6 states)

21
Hardware Efficiency
22
Future Work

• Better data structures within the program to
  eliminate the limited number of objects
• IEEE data types in VHDL to allow the full range
  of operators
• Improved error checking and reporting
• Support for events
• More reference designs!
• Investigate new applications (i.e. protocol
  stacks)
