The Debugger and Inspector

1

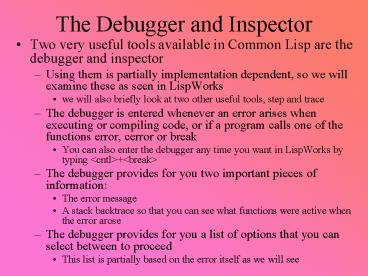

The Debugger and Inspector

• Two very useful tools available in Common Lisp
  are the debugger and inspector
• Using them is partially implementation dependent,
  so we will examine these as seen in LispWorks
• we will also briefly look at two other useful
  tools, step and trace
• The debugger is entered whenever an error arises
  when executing or compiling code, or if a program
  calls one of the functions error, cerror or break
• You can also enter the debugger any time you want
  in LispWorks by typing ltcntlgtltbreakgt
• The debugger provides for you two important
  pieces of information
• The error message
• A stack backtrace so that you can see what
  functions were active when the error arose
• The debugger provides for you a list of options
  that you can select between to proceed
• This list is partially based on the error itself
  as we will see

2
Cause 1 Arithmetic Error

• Consider doing (/ 3 0), you will be dropped into
  the debugger with the following options
• The first choice allows you to abort the function
  but have it return a value
• this is more useful if the function was being
  called from inside another function so that we
  can proceed from this point by supplying a return
  value
• The second choice allows you to replace the 0 in
  the denominator
• this allows you to proceed as if the error did
  not arise by replacing the erroneous value with
  something else
• You can return to the top level, either by
  aborting (in which case everything is reset) or
  not aborting (any values changed prior to the
  error remain changed)

Error Division-by-zero caused by / of (3 0). 1
(continue) Return a value to use. 2 Supply new
arguments to use. 3 (abort) Return to level 0.
4 Return to top loop level 0.
3
Cause 2 Unknown Identifier
CL-USER 123 gt ( c 5) Error The variable C is
unbound. 1 (continue) Try evaluating C again.
2 Return the value of C instead. 3 Specify a
value to use this time instead of evaluating C.
4 Specify a value to set C to. 5 (abort) Return
to level 0. 6 Return to top loop level 0.

• The reason for the first response is that it is
  possible that C will gain a value from elsewhere
• Say if we had multiple processes running
• Using C allows us to change an unbound variable
  for the value C, but unfortunately it will lead
  to another error because we cannot add a
  non-number
• Supplying a value for C is the most useful
  notice we can supply C a one-time value (3) or a
  permanent value (4)

4
Examining the Stack

• One of the commands that you can always try is to
  evaluate the run-time stack
• In LispWorks, do b at the debugger prompt
• bb gives you a reduced (brief) backtrack and bq
  gives you an even shorter backtrace
• This will list all of the function calls leading
  up to the error
• Notice aside from the programs functions, we
  also have various OS function calls which mostly
  we wont need to know about

From the GA code, I placed a break in
computefitness You can see that evolve called
selectvectors which called computefitnesses The
rest of the calls are from the CL environment OS
Interpreted call to COMPUTEFITNESSES Interpreted
call to SELECTVECTORS Interpreted call to
EVOLVE Call to SPECIALEVAL-NOHOOK Call to
IVPROCESS-TOP-LEVEL Call to CAPICAPI-TOP-LEVEL-
FUNCTION Call to CAPIINTERACTIVE-PANE-TOP-LOOP C
all to (SUBFUNCTION MPPROCESS-SG-FUNCTION
MPINITIALIZE-PROCESS-STACK)
5
Example
(defun weirdfact (n) (if (lt n 0) (break)
(if ( n 0) 1 ( n 2 (weirdfact (- n 2))))))
We will only reach the break if weirdfact
is called with an odd numbered parameter

• To the right is the backtrace provided
• ignoring the calls prior to the intepreted call,
  we can see that weirdfact was invoked 4 times (n
  5, n 3, n 1, n -1)
• we can therefore see when we ran into problems
• we can also inspect the stack values (as we will
  see shortly)
• If I resume execution, we enter an infinite loop
• however I could first alter n (say to be even)
  before resuming to avoid the infinite loop

Calling (weirdfact 5) leads to a break with
the following backtrace Interpreted call to
WEIRDFACT Interpreted call to WEIRDFACT Interprete
d call to WEIRDFACT Interpreted call to
WEIRDFACT Call to SPECIALEVAL-NOHOOK Call to
IVPROCESS-TOP-LEVEL Call to CAPICAPI-TOP-LEVEL-
FUNCTION Call to CAPIINTERACTIVE-PANE-TOP-LOOP C
all to (SUBFUNCTION MP PROCESS-SG-FUNCTION
MPINITIALIZE-PROCESS-STACK)
6
Some Debugger Commands

• v Print the current frame
• bq Print quick backtrace of interesting
  frames limited to m calls if we supply m (bq 5)
• b Print backtrace from the current frame
• error Print the error and how to continue
• n Go down the stack by 1 (n m goes down
  by m)
• p Go up the stack (p m goes up by m)
• top Abort to top level
• a Abort one level
• c Continue from error
• ret Return from frame
• res Restart frame
• sres Restart frame, stepping the function
• lt Go to the top of the stack
• gt Go to the bottom of the stack
• cc Get the current condition object

• l Print/return value of given variable in
  current frame.
• show Print all objects found in stack frame
• grab Grab all objects from a stack frame
• bb Print a full backtrace suitable for a
  bug report
• lambda Show lambda expression for frame
• get ltvariablegt ltcommand identifiergt Get a
  command from the history list and put it in a
  variable.
• help Produce help list.
• his optional ltn1gt ltn2gt List command history.
• redo optional ltcommand identifiergt Redo a
  previous command, identified by its number or a
  substring.
• use ltnew formgt ltold formgt optional ltcommand
  identifiergt Redo command after replacing old form
  with new form.

7
Example

• Consider the following function
• (defun foo (lis1 lis2) (let (temp) (dolist (a
  (append lis1 lis2)) (if (atom a) (setf temp
  (append temp (list a))))) temp))
• Called by (foo (a b c) d)
• since d is not a list, append in dolist gives us
  an error and drops us in the debugger with the
  message
• Error D is not of type LIST.
• 1 (abort) Return to level 0.
• 2 Return to top loop level 0.
• entering b gives us the stack trace
• Interpreted call to FOO
• Call to SPECIALEVAL-NOHOOK
• Call to IVPROCESS-TOP-LEVEL
• Call to CAPICAPI-TOP-LEVEL-FUNCTION
• Call to CAPIINTERACTIVE-PANE-TOP-LOOP
• Call to (SUBFUNCTION MPPROCESS-SG-FUNCTION
  MPINITIALIZE-PROCESS-STACK)
• not very helpful!

8
Example Continued

• If we do v we get back the active values on the
  stack
• Interpreted call to FOO
• LIS1 (A B C)
• LIS2 D
• TEMP (A B C)
• A C
• And we can see how these are used if we either do
  (pprint foo) or lambda
• .'(LAMBDA (LIS1 LIS2)
• (DECLARE (LAMBDA-NAME FOO))
• (BLOCK FOO (LET (TEMP) (DOLIST ) TEMP)))
• Does this help?
• notice for (dolist ) we dont get to see
  everything, but we can further inspect the
• What do we do here? The error arose because lis2
  is not a list
• do (setf lis2 (D)) and then res (restart the
  current frame)
• this restarts foo, which can now continue until
  it completes, in this case returning (A B C D)

9
Debugger Activities

• First, identify the cause of the error
• Next, move down the stack looking over the
  function calls
• At each stack frame, you can examine the local
  variables using v, show, or l ltnamegt in some
  combination
• you can change the value of a local variable or
  parameter using setf
• if, in moving around, you forget the error or
  continuations, type error
• lt and gt take you to the top and bottom of stack
  respectively if you need to quickly get to one
  end
• for instance, if youve moved down several
  frames, get back to the top by lt
• If you have identified the cause of the error and
  fixed it by altering a value, you can restart
  from the point of error by doing res (but first
  go to the top of the stack)
• If you are still unsure, move to several stack
  frames prior to the error and do sres (invokes
  the stepping function, which we will examine
  later)
• If you want to give up, you can abort top or
  abort 1 level a or use the continuation that
  takes you to the top level

10
Inspecting the Stack

• CL has a built in inspector which allows you to
  inspect any stack object
• describe is a text-based function to inspect an
  object
• this lists the object, and its component parts if
  it is a sequence, structure or object
• inspect does the same thing but is interactive
• this does the same as describe but drops you into
  the interactive inspector
• the interactive inspector is much like the
  debugger, you can inspect what is going on in the
  object just as you inspect what is going on in
  the stack with the debugger
• once in the inspector, you can examine any
  individual component, or change components
• for instance, if the object is a list, you can
  examine each list element, or change any list
  element

11
Inspector Commands

• d Display current object.
• dm Display more of current object (if you
  cant see the entire object at one time)
• sh Show inspector stack.
• u Undo last inspection.
• ud Undo last inspection and redisplay.
• q Quit from current inspector.
• s s n v sets slot n to value v.
• i Recursively invoke a new inspector.
• m Display possible modes or change mode.
• cv Current values of control variables
  within inspector.
• h Help on inspector commands.
• get ltvariablegt ltcommand identifiergt
  Get a command from the history list and put it in
  a variable.
• help Produce this list.
• his optional ltn1gt ltn2gt List the
  command history, optionally the last n1 or range
  n1 to n2.
• redo optional ltcommand identifiergt
  Redo a previous command, identified by its
  number or a substring.
• use ltnew formgt ltold formgt optional ltcommand
  identifiergt Redo command after
  replacing old form with new form.

12
Example

• (setf a '(1 2 a "abc" (z y x) (9 8 77 66 55)))

(inspect a) (1 2 A "abc" (Z Y X) ...) is a
LIST 0 1 1 2 2 A 3 "abc" 4
(Z Y X) 5 (9 8 77 66 55) Inspect 1 gt
3 "abc" is a SIMPLE-BASE-STRING 0 \a 1
\b 2 \c Inspect 2 gt u Inspect 1 gt 4

• (describe a)
• (1 2 A "abc" (Z Y X) (9 8 77 66 55)) is a LIST
• 0 1
• 1 2
• 2 A
• 3 "abc"
• 4 (Z Y X)
• (9 8 77 66 55)

Selecting 3 recursively inspects it and we are
moved into a lower level of the inspector u
returns us to the previous level Selecting 4
will inspect (Z Y X)
13
Changing Values

• The s command allows us to change the value of a
  component of the inspected object
• s 2 b changes a to become (1 2 B "abc" (Z Y X)
  (9 8 77 66 55)))
• s 3 c changes a to become (1 2 B C (Z Y X) (9
  8 77 66 55)))
• We can change any value we want, even one of the
  vectors
• from inspect 1 gt 4 to inspect item 4
• now we are inspecting the vector (Z Y X)
• s 2 q ? a is now (1 2 B C (Z Y Q) (9 8 77 66
  55))
• The inspector can be invoked from inside of the
  debugger so this makes it easy to check out the
  value of variables and make changes to them
  before resuming your function (if desired)
• inspecting sequences, structures and objects is
  far more useful than inspecting simpler types

S(PERSON NAME FRED SEX M AGE 31 OCCUPATION
NONE) is a PERSON NAME FRED SEX
M AGE 31 OCCUPATION
NONE
Inspecting a structure of type Person we can
reset a value using s age 32 or s occupation
plumber
14
Stepping Through Code

• The Stepper is a tool that lets you step through
  code
• In LispWorks, there is a graphical stepper tool
  (click on the boot-shaped icon, or select Stepper
  from the Tools menu)
• I havent been very successful in using this, so
  instead
• The stepper is also available at the command
  prompt, just like the debugger and inspector
• type (step (functioncall params))
• this brings you into the stepper where you can
  step through the execution of the function
• s steps down one level of the current function,
  or steps through the next function
• for instance, (let ((a (/ x 2))) ? s first steps
  into let, then steps into the assignment of a,
  then steps into the divide, then returns to the
  assignment of a
• st steps through the current function without
  stepping through its specific subparts

15
Stepper Example
(defun bar (a b) (cond ((lt a b) (- a b)) (t ( a
b)))) (step (bar 3 5)) (BAR 3 5) -gt s 3 -gt
s 3 5 -gt s 5 (DECLARE
(SPECIALSOURCE (LAMBDA (A B) (DECLARE
(LAMBDA-NAME BAR)) (BLOCK BAR (COND ((lt A B)
(- A B)) (T ( A B)))))) (LAMBDA-NAME BAR)) -gt
s NIL (BLOCK BAR (COND ((lt A B) (- A B))
(T ( A B)))) -gt s (COND ((lt A B) (- A B))
(T ( A B))) ltgt (IF (lt A B) (PROGN (- A
B)) (COND (T ( A B))))
16
Step Example Continued
(IF (lt A B) (PROGN (- A B)) (COND (T ( A B))))
-gt s (lt A B) -gt s A -gt s
3 B -gt s 5
T (PROGN (- A B)) -gt s (-
A B) -gt s A -gt s
3 B -gt s 5
-2 -2 -2 -2 -2 -2
By using si, we can skip a lot of the details
17
Stepper Commands

• s Step this form and all of its subforms
  (optional ve integer arg)
• st Step this form without stepping its
  subforms
• si Step this form without stepping its
  arguments if function call
• su Step up out of this form without
  stepping its subforms
• sr Return a value to use for this form
• sq Quit from the current stepper level
• get ltvariablegt ltcommand identifiergt
  Get a command from the history list and put it in
  a variable.
• help Produce this list.
• his optional ltn1gt ltn2gt List the
  command history, optionally the last n1 or range
  n1 to n2.
• redo optional ltcommand identifiergt
  Redo a previous command, identified by its number
  or a substring.
• use ltnew formgt ltold formgt optional ltcommand
  identifiergt Redo command after
  replacing old form with new form.

18
Trace Facility

• Trace allows you to trace function calls
• (trace functionname) turns trace on
• Next time you call functionname, you get to see
  its behavior what it calls, what the parameters
  are
• (untrace functionname) turns trace off

here, fib (the fibonacci function), is called
with (fib 4) 0 FIB gt ... gtgt N 4 1 FIB gt
... gtgt N 3 2 FIB gt ... gtgt N 2
2 FIB lt ... ltlt VALUE-0 1 2 FIB gt
... gtgt N 1 2 FIB lt ... ltlt
VALUE-0 1
1 FIB lt ... ltlt VALUE-0 2 1 FIB gt ...
gtgt N 2 1 FIB lt ... ltlt VALUE-0 1 0 FIB lt
... ltlt VALUE-0 3 3
for more on these facilities, see the LispWorks
web site
