Title: ECAL electronics

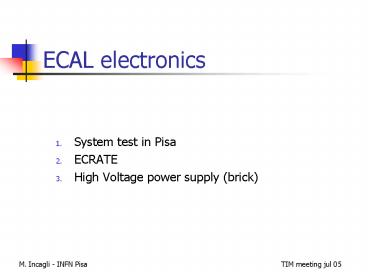

1
ECAL electronics
  • System test in Pisa
  • ECRATE
  • High Voltage power supply (brick)

2
ECAL electronics
?
Electr Mech LAPP-Annecy EletrMech
INFN-Pisa Electronics CAEN - Italy Mechanics
Italy Canarie TestsValidation INFN-Pisa SQ
Tests INFN-Pisa CIEMAT-Madrid In common with
RICH subdet. Electronics CSIST -
Taiwan Mechanics Canarie islands TestsValidation
INFN-Pisa CIEMAT-Madrid
?
REST OF THE WORLD
?
?
?
DATA LV
ECAL CRATE
?
ON ECAL
SLOW CONTROL
TRIGGER
LV
?
?
HV
ANALOG TRIGGER
LV
LINEAR REGULATOR
Front End
High Voltage
Low Voltage
3
System tests in PISA
  • In the week 23-27 may a system to test the
    complete chain has been setup in Pisa, with the
    help of G.Cougoulat, J.Tabin 2 technicians from
    LAPP

The ECAL full scale prototype, built in Pisa in
2001, has been equipped with 9 PMTs and a LED
system
PMT insertion
Coverage for light tightness
ECAL full scale prototype
4
System tests in PISA
  • A row of 9 PMTs has been mounted, equipped with
    ECAL Front end Electronics (EFE) and with ECAL
    Intermediate Board (EIB)
  • The EHV brick has been used to power PMTs

EFE connector
EIB readout
HV cables
5
  • A LED system was prepared (two rows equipped)
  • Each LED could be individually switched on at the
    desired intensity

PMTs on opposite face
LED system 18x2 LEDs connected in pairs
6
System tests
  • Low Voltage was provided by the S9057E QM board
    built in Taiwan at CSIST
  • EPSFE was used as Solid State Fuse (no slow
    control, yet)
  • Data were readout through EDR, JINF and then,
    using EPPCAN box, collected on PC and analyzed
    offline
  • One EDR reads 3 EIBs, therefore each event
    consisted in
  • 3 (EIB) x 9 (PMTs/EIB) x 9 (channels/PMT) 243
    words
  • The software written by Kounine and adapted to
    ECAL readout by S.DiFalco was used

Back Plane
Back Plane
E P S F E
E D R
J I N F
9 0 5 7 E
data
data
LV
LV
EIB
EPPCAN PC
ECAL prototype
7
  • Output plots for the 9 channels of PMT 1 for a
    given LED pulse height

8
Why 9 channels per PMT ?
  • Dynode
  • 1 channel
  • gain 5?104
  • used for trigger
  • Low Gain Anodes
  • 4 channels
  • gain 105
  • Energy range 30MeV-90GeV
  • High Gain Anodes
  • 4 channels
  • gain 3?106
  • Energy range 1MeV-3GeV

Optical fibers (140 per PMT)
1.8cm
PMT
charge collection system
To front end electronics
9
Linearity plots
Low gain High gain Ratio High/Low
30 29
30 29
29 28
ADC counts
LED pulse height (A.U.)
Saturation of High Gain ch.
10
  • STATUS OF BOARDS

11
EDR
  • 6 QM PCBs produced in Italy at ZINCO CELERE (ESA
    qualified factory)
  • PCB currently at FAGREL (Milano) to be mounted
    under supervision of A.DellAcqua (CGSpace)
  • board to Pisa for electrical tests ? beginning
    of Sep
  • board to CGSpace for coating ? october

12
ETRG
  • FPGA with trigger logic programmed and partially
    tested more tests in program with simulator
    board
  • FPGA with Common Digital Part programmed jul, 19
    by F.Spinella and E.Pedreschi under the
    supervision of V.K.
  • Ready to order PCBs for QM2 (september)

Trigger Simulator Board
13
EBP
  • all connections tested
  • two modifications to the design must be made in
    order to accommodate it in the ECRATE
  • angles must be rounded
  • power taps on the backplane are too close to the
    stiffners
  • PCB design is being reviewed to insert these
    modifications
  • Ready to order QM in september

14
EPSFE
Provides low voltage to 3 EIB boards Slow
control functionality 1 channel (positive and
negative) tested at CERN QM ready within Nov, 15
I/O
3.5V
-2.7V
COLD
HOT
15
Mechanics
  • QM crate produced -gt needs alodine treatment and
    painting will be done in September
  • Panel connecting crate to LUSS still to be done
  • Crate ready in October
  • Front panels for QM EDR produced 2 of them
    already sent to factory for QM production
  • All QM front panels ready before end of September

16
Summary on ECRATE
  • EDR tested ? QM production (6 units) started
  • EBP tested ? due to interference with mechanics,
    PCB must be modified ? QM (1 unit) produced in
    September
  • ETRG partially tested CDP code written ? more
    tests in september ? QM (1 unit) produced in
    October
  • EPSFE EM tested small modifications to design
    CDP code written ? more tests in progress
  • Mechanics all parts of QM crate ready ? missing
    fasteners and surface treatment
  • SQ tests will be performed in Terni in November

17
  • 2 - HIGH VOLTAGE

18
From last TIM (april 2005)
  • Current schedule
  • Mount the brick in may at CAEN (in Viareggio,
    30km from Pisa)
  • Prepare the brick SQ tests in Madrid (build
    interface for ThermoVacuum chamber, build stands
    for Vibration Tests, )
  • Perform SQ tests within june
  • If SQ tests are succesfull, EHV production will
    start immediately afterward
  • but

19
Situation in may
  • The test responsability is shared between INFN
    Pisa (ECAL) and CIEMAT Madrid (RICH), since the
    bricks are nearly identical
  • INFN Pisa resp. for brick crate and control
    software
  • CIEMAT Madrid resp. of tests setup (electrical
    mechanical interfaces )
  • The mechanics arrived in Pisa beginning of may
    from Milano and from Madrid
  • Tests were planned in Madrid starting from june
    20

20
  • The brick underwent thermal cycles in Pisa
  • plus vibration tests (car trip from Pisa to
    CERN and back)
  • we (Federico Pilo MI) noticed malfunctioning
    first in 1 and then in 2 channels

BRICK
21
At CAEN to understand
  • The brick was carried to CAEN and carefully
    tested
  • The result is that in some linear regulators the
    SOLDERING WAS BROKEN due to different
    thermal/mechanical properties of resin and
    soldering paste

22
  • The result is that the ECAL EHV cannot be used as
    a QM anymore
  • A new strategy to fix linear regulators to the
    main board must be used by CAEN
  • The proposal is to bend the linear regulators
    pins in order to use them as strain relief

Previous picture showing this detail
23
RHV brick
  • CAEN is building now the RICH QM
  • The modification to the linear regulators pin has
    been implemented
  • The mechanics built for ECAL QM will be used for
    the RICH QM
  • The new brick will be finished first week of
    August and sent to Madrid (pictures in next
    slide)
  • People electronics necessary to drive the RHV
    brick will be sent to Madrid beginning of
    September (Sep, 5)
  • SQ tests will be performed in the month of Sep
    and, if no problems show up, the flight models
    will be ordered (8 months for delivery)

24
Status of RHV assembly
  • Mechanics with holes for temperature sensors
  • Front panel HV connectors
  • LV and data not connected yet

25
Status of RHV assembly
  • Distributor boxes distribute the HV provided by
    elevator to linear regulators
  • Only one elevator for RICH hole filled with
    dummy box
  • HV controller board
  • Front panel with 2 LV and 2 Slow Control
    connectors
