CSRC Directors Report

1

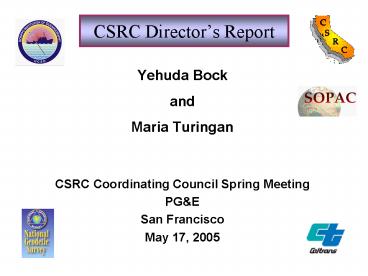

CSRC Directors Report

• Yehuda Bock
• and
• Maria Turingan
• CSRC Coordinating Council Spring Meeting
• PGE
• San Francisco
• May 17, 2005

2
CSRC Mandate

• Provide the necessary geodetic services to
  ensure the availability of accurate, consistent,
  and timely spatial referencing data.
• Monitor temporal changes in geodetic coordinates
  due to tectonic motion, earthquakes, volcanic
  deformation and land subsidence.
• Establish the legal spatial reference system for
  California
• Establish and maintain the California Spatial
  Reference System - CSRS.

3
California Spatial Reference System (CSRS)
Networks
Northern California Densification
Glenn County
Tuolumne Co
Yolo Co Contra Costa Co South SF Bay
San Joaquin Valley
San Simeon Resurvey
CGPS Only CORS Leveling
4
SOPAC/CSRC Operational Staff

• Onsite
• Director Yehuda Bock
• Coordinator Maria Turingan
• IT Manager Michael Scharber
• Analysis Peng Fang, Linette Prawirodirdjo
• Web Administrator Paul Jamason (also analysis)
• System Administrator George Wadsworth
• Applications Programmer Ruey-Juin Chang
• Radio Engineer (Glen Offield), Radio Technician
  (lost John Unwin, hiring replacement, in
  progress)
• Salary paid by seismic networks (Frank Vernon)
• Offsite
• N. California Geodetic Coordinator Don
  DOnofrio
• S. California Geodetic Coordinator Cecilia
  Whitaker, PLS
• Consultants Mike Potterfield, Jim Swanson, PLS,
  Bob Packard, PLS (PBO Support), John Canas, PLS
  (Financial Advisor)

5
CSRC Leveraged Support
6
SCEC support to SOPAC for SCIGN
These funds for data archive, analysis, and site
maintenance will end in 2006, and most probably
will not be renewed as SCEC II transitions to
SCEC III.
7
UNAVCO/SCEC support to SOPAC for SCIGN to PBO
transition
These funds for data archive and site maintenance
will taper off in 2006-2007. Half of SCIGN sites
to transition to PBO. Other half to be maintained
by USGS, SOPAC, and Local Agencies.
8
NASA/JPL funding to SOPAC
This project is directly supporting real-time GPS
infrastructure in southern California, has one
more year of funding
This project is supporting the development of
next-generation SCIGN IT infrastructure, and is a
direct benefit to CSRC (not included a similar
amount to JPL, which also benefits CSRC)
9
NASA SENH Research Project - Development of a
Real-Time GPS/Seismic Displacement Meter
Applications to Civilian Infrastructure in Orange
and Western Riverside Counties, CA
10
NASA SCIGN-REASoN Project
11
Virtual Archive
12
County Funds to SOPAC
This project is funding the real-time upgrade of
SCIGN, PBO, and County stations in San Diego
County, of direct use to the CSRC community
This project is in review and is a collaboration
of SOPAC, JPL, Orange and San Diego Counties and
MWD.
13
Leveraged Funds For Real-Time GPS Upgrades
14
NASA Proposal in Review - Integrated System
Solutions
Precise Real-Time GPS/GIS Solutions for Disaster
Management and Homeland Security

• Collaborators Ray Mathe (County Surveyor) and
  Art Andrew
• County of Orange Resources Development
  Management Dept.

• Applications
• Precise real-time geospatial information for
  decision makers, inundation maps and evacuation
  procedures resulting from natural hazards
  (earthquakes, landslides, tsunamis) and
  infrastructure failure (levees, dams)

Survey Components of OCRTN
15
NASA Proposal in Review - Integrated System
Solutions
Precise Real-Time GPS/GIS Solutions for Disaster
Management and Homeland Security
Collaborators Cecilia Whitaker and Mike
Duffy Metropolitan Water District of Southern
California

• Applications
• Rapid geospatial and deformation information
  related to natural and man-made disasters, and
  their affect on critical water facilities (dams)
  and waterways.

Real-Time Dam deformation monitoring at Diamond
Valley Lake, Riverside County, California
16
MWD RTN
MWD Data Hub
WWMT WIDC KYVW PSAP COTD PIN1/PIN2 AZRY CACT TMA
P BMRY ECFS DSSC BLYT NOCO SPMS TWMS PSAP
ESRW DVNW DVSW DVLW DVLS DVLE DVNE DVSE ESE2
MLFP MAT2 HNPS IMPS GNPS EWPP PPBF BILL CNPP PPCK
PCOX PTIN
MWD
MWD/DVL (9) ESRW DVNW DVSW DVLW DVLS DVLE DVNE DV
SE ESE2 MWD/RTN (12) MLFP MAT2 HNPS IMPS GNPS
EWPP PPBF BILL CNPP PPCK (PBO) PCOX
(PBO) PTIN (PBO) SCIGN (18) WWMT WIDC KYVW PSA
P COTD PIN1/PIN2 AZRY CACT TMAP BMRY ECFS DSSC

MWD Users
Serial to IP converter
RTD CLP
Wireless Internet
MWD Backbone
Internal
SCIGN Archive
Internet
SOPAC
Orange
MWD Backbone
In the upgrade queue
CLP RTD
CLP RTD
BLYT NOCO SPMS TWMS PSAP
Wireless Internet
Internet
General Users
Science Users
17
MWD Upgrades in Western Riverside County
In the queue
18
NASA Proposal in Review - Integrated System
Solutions
Precise Real-Time GPS/GIS Solutions for Disaster
Management and Homeland Security
Collaborators Phil Giurbino (County Surveyor),
Ross Carlson, Steve Martin, Norman Peet San Diego
County Department of Public Works

• Applications
• Rapid disaster management in the areas
  of transportation and engineering infrastructure,
  and precise mapping of crime, disaster (e.g.,
  fires) and security-related scenes (small and
  large scale).

San Diego County Real Time Network
19
San Diego County Real Time Network

• Total of 22 stations
• 7 existing SCIGN stations (3 upgraded)
• 4 new sites built by County to SCIGN standards,
  20 Hz receivers
• 11 PBO stations (6 built)
• Seismic/GPS collocation at Monument Peak and Camp
  Elliott
• Using Sheriffs Dept. and HPWREN communications
  backbone

Map prepared by Ross Carlson, SDDPW
Collaborators San Diego Dept. of Public Works
and Sheriffs Dept., UCSD (ROADNet, HPWREN,
SOPAC), PBO, SCIGN, CSRC
20
GIS Class UCSD Campus Mapping Project
We mapped the main roads on the UCSD/SIO campus
with a GPS receiver mounted on truck, positioned
in real time with a PDA device with respect to SD
Real Time Network.
21
GIS Class UCSD Campus Mapping Project
The image on the left shows offset between
ITRF2000 GPS coordinates and NAD27-based campus
layers. The image on the right shows a
transformation applied in ARCGIS 9.
22
San Diego County PBO Prototype
Five PBO sites in San Diego County will be
upgraded to high-rate real-time streaming
capability as a PBO prototype - first 2 sites to
be upgraded over the next few weeks
23
Status Southern California Upgrades
Real-time RTCM data are streamed by SOPAC in CSRC
Epoch 2004.0 ITRF coordinates, and refer to the
geodetic marker.
See http//sopac.ucsd.edu/input/realtime/sopacReal
Time_ipPorts.txt
24
Other leveraged funds
This long-lived project also funded through the
NOAA/JIMO program for SOPAC to compute
near-real-time orbits in support of NOAAs GPS
Meteorology program for short-term weather
forecasting
Finally, SIO licenses the RTD software package
from Geodetics Inc. on an annual basis (since
2003). This is of benefit to the CSRC community,
by providing real-time access to data. The same
licensing terms are available to SOPAC/CSRC
collaborators in California. The only condition
is free public access to real-time data.
25
(No Transcript)
26
Work Plan - FY05
27
FY04-05 Work Plan
28
FY 05 Appropriations FY05-06 SOW

• Nov. 21, 2004 Received news that FY 05 Height
  Mod funds to California cut by 50 to 500,000.
• Dec. 22, 2004 Received FY05-06
  recommendations of Work Plan Committee (Don
  DOnofrio, Chair, Fasha Eskandari, Marti Ikehara,
  Cecilia Whitaker, Larry Fenske). Included
  recommendations for projected CSRC budget
  surplus.
• January, 19, 2005 Significant SIO efforts to
  undo allocation fail, including discussions with
  various Congressional offices and Director of NOS
  (Richard Spinrad). NGS agrees to provide full
  500,000 to CSRC (no 10 tax) and to consider
  additional projects up to 100,000.
• February 28, 2005 Final SOW and Budget prepared
  for NOAA (500,000) and submitted to JIMO.
• SIO is trying to leverage the FY05 shortfall to
  increase our FY06 allocation to make up the
  shortfall, and set a precedent for future years.
  We are also making a new effort at the state
  level.
• Budget surplus still an outstanding issue

29
Working Group Recommendations
30
FY05-06 Research Objectives

• What is the proper observation mix to maintain a
  modern height network, and how should these
  measurements be optimally combined? Observation
  types include continuous GPS (CGPS), field GPS
  surveys at passive monuments, spirit leveling,
  and gravity surveys.
• What is the proper mix of geoid models and local
  corrector surfaces, in converting from
  GPS-determined geodetic heights to orthometric
  heights? What interpolation methods will provide
  the optimal corrector surfaces?
• Can we apply and enhance modern IT methods to
  provide timely access to height modernization
  information?
• How does one develop and implement a precise GIS
  for the purposes of height modernization?
• How can real-time (RT) CGPS networks, such as
  those being created in California, be best used
  to directly support height modernization and
  spatial referencing?

31
FY05-06 JIMO Proposal to NGS
32
FY05-06 JIMO Proposal - New CGPS
33
FY05-06 JIMO Proposal - New CGPS
34
Pocket GPS Manager (PGM)

• Expediting CSRC Project Execution, Delivery
  Analysis

35
Processing Path0
36
Exercise and beta testing will include the input
and analysis of the Northern California data set
collected by Caltrans.
37
Financial Report
38
Funds Received All Sources thru FY05
39
Spending History thru March 2005
40
Latest Monthly Financial Report
41
Caltrans Service Contract to SIO/CSRC
September 1, 2005 - August 31, 2007

• CSRC shall provide services, as requested and
  directed by Caltrans and agreed to by CSRC.
  Specific tasks shall include, but not be limited
  to the following
• Participate in geodetic surveys to establish and
  maintain the National Spatial Reference System
  (NSRS) in cooperation with the National Geodetic
  Survey (NGS), Caltrans and others within
  California. Process, adjust, and format Global
  Positioning System (GPS) and other geodetic
  survey data and enter the data into the CSRC
  database and submit the data to NGS for inclusion
  in the NSRS.
• Develop time-tagged geodetic coordinates and
  station velocities for stations included in the
  CSRC database and/or the NSRS.
• Provide assistance and support for the
  establishment of Continuous Global Positioning
  System (CGPS) installations, also known as
  Continuously Operating Reference Stations (CORS),
  specific to Caltrans needs.
• Provide assistance and support for the
  establishment of real-time Global Positioning
  System (GPS) networks specific to Caltrans
  needs.
• Assist in the development and implementation of
  project related survey standards, specifications,
  and procedures in such areas as real-time GPS
  survey procedures and GPS determined elevations.
• Assist in the development of procedures to
  establish and maintain basic vertical control
  networks in areas of uplift or subsidence.
• Assist in the development of transportation
  surveying applications, guidelines, and
  procedures for utilizing Continuous Global
  Positioning System (CGPS) stations. If
  appropriate, provide training to Caltrans surveys
  staff on these guidelines and/or procedures.
• Assist in determining the effects of tectonic
  movement (secular and episodic) on stations in
  the CSRC database and/or NSRS, including resurvey
  requirements, extent, and procedures to
  compensate for the effects.
• Develop and conduct training sessions or
  workshops on the above topics (If applicable) and
  other geodetic survey-related topics for Caltrans
  surveys staff.

42
PGM Demo Michael Scharber
