1

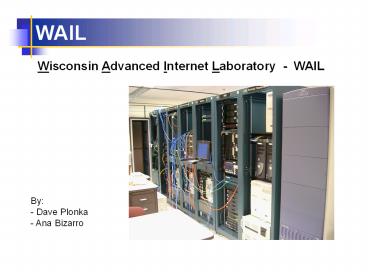

Wisconsin Advanced Internet Laboratory - WAIL
By - Dave Plonka - Ana Bizarro
2
WAIL - overview

• WAILworks
• Motivation
• Challenges
• Approach
• Status

3
WAILworks

• Project Overview
• Backbone
• Front-end (scripts now, GUI later!)
• Lab scheduling application
• (resource management for experiments)
• Definition of scenarios (canonical topologies)
• Automated configuration of network devices
• Results repository (network database)

4
WAILworks

• Project Status
• Backbone
• Front-end (scripts now, GUI later!)
• Lab scheduling application
• (resource management for experiments)
• Definition of scenarios (canonical topologies)
• Automated configuration of network devices
• Results repository (network database)

5
WAILbone
Legend
802.1Q trunk
Lab-wide VLAN
Mngmt VLAN
Other Ethernet
Serial
6
WAILworks - scenarios

• Canonical Topologies
• ISP
• BGP
• End-to-End
• POP
• Maximum Spaghetti
• One-Off
• Data Center

7
WAILworks ISP scenario

• ISP Topology
• Reproduce Internet 2 Backbone Abilene
• Why?
• It is a national high performance backbone
• Hardware information available
• Routing architecture available
• Ping and traceroute tools available
• Router proxy available for show commands
• Log files available

8
WAILworks ISP scenario

• Abilene Real-World Topology

STTL
NYCM
CHIN
CLEV
SNVA
DNVR
IPLS
KSCY
WASH
LOSA
ATLA
HSTN
9
WAILworks ISP scenario

• Abilene Network in WAIL
• Step-by-Step
• Select a Topology (point in time)
• Map Abilene Nodes to WAIL Routers
• Assign Internet Numbers, Addresses
• Basic Configuration
• Routing Configuration
• Automate Config Upload to the Routers
• Test the Network
• Validate Quantify Differences with Real-World
• Save Scenario to Repository

10
WAILworks ISP scenario

• Abilene Network in WAIL
• Progress
• Select a Topology
• Map Abilene Nodes to WAIL Routers
• Assign Internet Numbers, Addresses
• Basic Configuration
• Routing Configuration
• Automate Config Upload to the Routers
• Test the Network
• Validate - Quantify Differences with Real-World
• Save Scenario to Repository

11
WAILworks ISP scenario

• Abilene _at_ WAIL

Legend
802.1Q trunk
Lab-wide VLAN
Mngmt VLAN
Other Ethernet
Serial
Abilene
12
WAILworks ISP scenario

• Abilene Layer 2

13
WAILworks ISP scenario

• Abilene Layer 2 and Layer 3

14
WAILworks

• Summary
• WAILworks is the critical infrastructure for
  running
• experiments in WAIL (unique capability)
• Design and development of each component is
• on track for Summer 03 completion (Phase 1)
• Future
• External access
• More GUI, visualization
• Adapting aspects of WAILworks for operational
  use
