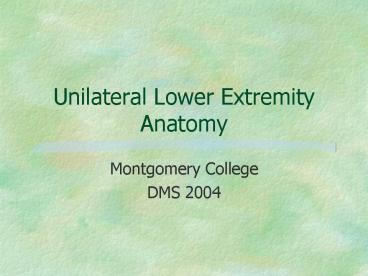

Unilateral Lower Extremity Anatomy

1
Unilateral Lower Extremity Anatomy

• Montgomery College
• DMS 2004

2
Scanning techniques
1. Use a 5-7 MHz probe (depending on the
patients sizeif severely obese, may need to use
a curvilinear probe) 2. A patient is supine with
a leg bent slightly and turned out 3. Beginning
in the groin at the CFV (before the Greater Saph.
Junction), scan in transverse compressing the
veins (walls of veins will collapse if no clot)
all the way down the leg, following the vessels
3
RT TR CFA CFV at the Groin
4
RT TR CFV at GSV Juncture
5
RT SAG CFV with GSV
6
RT SAG CFA Bifurcation
7
RT SAG CFV at the Confluence
8
RT TR SFV Prox
9
RT TR SFV Mid
10
RT TR SFV Dist
11
RT SAG SFV SFA
12
RT TR POP V/A
13
RT SAG POP-LSV Confluence
14
RT TR POPV LSF
15
RT SAG TP Trunk A and V
16
RT TR Trunk A / V
17
RT SAG ATV
18
RT SAG Peroneal A/V
19
RT SAG PTV / PER
