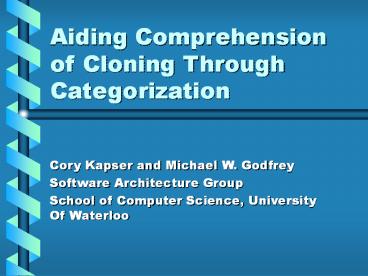

Aiding Comprehension of Cloning Through Categorization

1
Aiding Comprehension of Cloning Through
Categorization

• Cory Kapser and Michael W. Godfrey
• Software Architecture Group
• School of Computer Science, University Of Waterloo

2
Overview

• Motivation
• Background
• Methods
• Case Studies
• Results
• Discussion
• Summary

3
Motivation

• Code duplication (cloning) is common in large,
  long-lived industrial software systems.
• Negatively affects successful system evolution!
• Thus, clone management or removal is desirable.

4
Problems with clone detection technologies

• Comprehension
• Result sets often provide little information
  beyond its a clone
• Scalability
• VERY large result sets typical
• Accuracy
• Esp. false positives

5
Proposed solution

• Classification of clones
• Improve comprehension through informative
  grouping and statistical analysis
• Improve scalability through easier navigation
• Improve accuracy through region-specific filtering

6
Overview

• Motivation
• Background
• Methods
• Case Studies
• Results
• Discussion
• Summary

7
Code cloning

• A serious problem in industrial software.
• Typically, 15 of a system is duplicated code.
• As high as 50 in some cases
• Ducasse

8
Reasons for code cloning

• Perceived cost
• Time constraints
• Insufficient understanding of the underlying
  problem
• Architectural clarity

9
Problems with clones

• Maintenance
• Size
• Comprehension
• Bugs (copied and new)
• Indication of poor design

10
Managing clones

• Removal
• Documentation

11
Overview

• Motivation
• Background
• Methods
• Case Studies
• Results
• Discussion
• Summary

12
Our approach

• Perform clone detection
• Extract/define regions from source code
• Map clone pairs to regions
• Classify clones
• Filter clones
• Display results

13
The taxonomy

• Classifies clones according to attributes such as
  location and region type of a clone
• Hierarchical

14
(No Transcript)
15
ADD A SLIDE HERE

• To discuss what you hoped yoru taxonomy would
  help you with
• Why did you pcik that design?
• Give an example of how using this taxonomy could
  be helpful in a (simple, made up) example case

16
Overview

• Motivation
• Background
• Methods
• Case Studies
• Results
• Discussion
• Summary

17
Case studies

• PostgreSQL
• 543,387 LOC
• 1097 source files
• Linux kernel file-system subsystem
• 280,177 LOC
• 537 source files

18
Filtering and classification results

• 85 87 of clones could be classified using the
  taxonomy
• Fewer unclassified clones in Same Directory
  Clones category
• Large percentage of false positives were removed
  via filtering structural and prototype regions.

19
Overall cloning in the systems

• Function Clones dominate the Same Directory
  Clones.
• Most cloning occurs within the same directory.

20
Frequency of clone types

• Very few loop clones
• Relatively many conditional clones
• 38 of the clone pairs in the Linux fs and 53 of
  the clone pairs of PostgreSQL made up function
  clones

21

• It is possible to insert a table here with the
  results even if it is partial (to show that the
  work is there and that there are numbers)?
• Or maybe a graph? Nice to have this to imply
  heres all the hard work we did, boy did we
  sweat, and there are so many results that the
  obersvations are probably meaningful

22
Overview

• Motivation
• Background
• Methods
• Case Studies
• Discussion
• Summary

23
Cloning comprehension

• Classification of clones can improve
  comprehension
• User will have a working understanding of what a
  clone in a certain type means
• We believe navigation of the clone space will
  be greatly improved
• We now know more about cloning as it occurs in a
  software system
• Simple metrics are now available

24
Tool support

• Clone Interpretation and Classification System
  (CICS)
• Provides GUI to navigate classified clones
• Will provide benchmarking support for clone
  detection tools
• Many features can be added complement the sorting
  of clones in the taxonomy

25
CICS
26
Overview

• Motivation
• Background
• Methods
• Case Studies
• Discussion
• Summary

27
Summary

• Management of clones is important for the healthy
  evolution of a software system
• We can make the process of managing clones more
  comprehensible, scalable, and accurate

28
Future work

• Deeper classification
• Benchmark suite
• IDE plugins
• Evolution of clones
