Moderator:

1

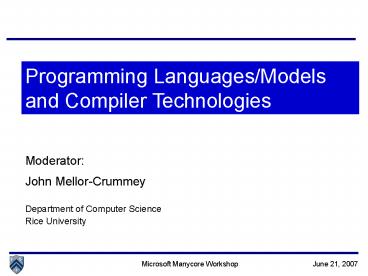

Programming Languages/Models and Compiler
Technologies
Moderator John Mellor-Crummey Department of
Computer Science Rice University
Microsoft Manycore Workshop June 21,
2007
2
Panelists

• David August - Princeton University
• Saman Amarasinghe - Massachusetts Institute of
  Technology
• Guy Blelloch - Carnegie Mellon University
• Charles Leiserson - Massachusetts Institute of
  Technology
• Uzi Vishkin - University of Maryland, College
  Park

3
Architectural Challenges

• Significant parallelism
• Multiple kinds of parallelism
• cores
• ILP
• SIMD
• Diversity of cores
• Run-time throttling of cores for power mgmt
• Memory hierarchy
• bandwidth
• near term will continue to be a significant
  bottleneck
• long term 3D stacked memory?
• long and often non-uniform memory latencies
• scratch pads

4
Roles of Parallel Programming Models

• Enhance programmer productivity through
  abstraction
• Manage platform resources to deliver performance
• Provide standard interface for platform
  portability

5
The Goal

• Simpler ways of conceptualizing, expressing,
• debugging, and tuning scalable parallel programs
• Multiple models will be necessary
• Models will necessarily trade off simplicity,
  expressivity, relevance to legacy code, and
  performance

6
To Succeed, Parallel Programming Models Must

• Be ubiquitous
• cross platform
• at a minimum laptops, SMP servers
• distributed memory clusters?
• Be expressive
• Be productive
• easy to write
• easy to read and maintain
• easy to reuse
• Have a promise of future availability and
  longevity
• Be efficient
• Be supported by tools

7
Simplifying Parallel Programming

• A high-level parallel language should
• Provide global address space
• beware exposed buffering
• Separate concerns partitioning, mapping, and
  synchronization vs. algorithm specification
• viscosity comes from premature mingling of
  these issues
• Enable programmer to manage locality at a high
  level
• locality performance
• affinity between data and computation
• e.g. HPFs ON HOME declarations

8
Design Issues I

• Ultimate control vs. simplicity of use
• library developers vs. productivity users
• should it be the same language for both?
• extensible language model (Suns Fortress)
• kitchen sink model (X10)
• Implicit vs. explicit parallelism
• implicit parallelism is often more malleable
• better supports dynamic adaptation
• Compiler assisted vs. compiler-centric
• Co-array Fortran and UPC
• user control over work decomposition, data
  movement, and synchronization
• HPF compiler must deliver or all is lost
• Lazy vs. eager parallelism
• Cilks lazy parallelism provides a model for
  scalable binaries
• eager parallelism adds unnecessary overhead

9
Design Issues II

• Deterministic vs. non-deterministic models
• deterministic clocked final model
• Saraswat et al. (www.saraswat.org/cf.pdf)
• Static vs. dynamic scheduling
• dynamic scheduling will be increasingly important
• irregular computations, task parallelism
• adaptive scheduling in response to core
  throttling
• Cooperative vs. independent scheduling of work
• does benefit of shared cache outweigh difficulty
  of using it?
• tightly synchronous vs. more loosely synchronous
• Scalable to distributed-memory ensembles?
• broad community probably only cares about
  tightly-coupled platforms
• some government and industry clients will always
  have extreme needs
• Importance of managing affinity between cores and
  data
• important for highest efficiency for library
  developers

10
Transactions are not THE Answer

• Transactions are a piece of the puzzle atomicity
• Other aspects of the parallel programming problem
• identifying concurrency
• partitioning work
• ordering actions

11
Autotuning

• Seductive idea
• Very successful as a library-based approach
• FFTW, Atlas, OSKI,
• Much work needed to apply to applications rather
  than kernels
• huge search space
• progress in effective truncated search
• model guidance can be effective
• autotuning for parallelism
• dangerously close to automatic parallelization

12
Rice Experience Lessons from HPF

• Good data and computation partitionings are
  essential
• without good partitionings, parallelism suffers
• flexible user-control is essential
• Excess communication undermines scalability
• both frequency and volume must be right
• embrace user hints to guide communication
  placement and optimization
• e.g. HPF/JA directives REFLECT, LOCAL, PIPELINE,
  etc.
• Single processor efficiency is critical
• must use caches effectively on microprocessors
• Icache beware of complex machine-generated code
• Dcache beware of communication footprint
• Optimizing tightly-coupled algorithms can be hard
• if the compiler doesnt optimize it, performance
  may be doomed!

13
Rice Experience HPF vs. Co-array Fortran

• Rice dHPF - a decade of investment in compiler
  technology
• not quite, govt cut funding here too, just like
  architecture
• polyhedral code generation models (like Lethin
  described)
• Co-array Fortran for clusters
• a few years effort by a pair of students
• Result Co-array Fortran bests HPF
• more expressive
• higher performance
• shorter time to solution
• currently, can be HARDER to program than MPI

14
Principal Compiler and Runtime Challenges

• Exploiting multiple levels of heterogeneous
  parallelism
• Choreographing parallelism, data movement,
  synchronization
• Managing memory hierarchy
• cache
• scratch pad

Warning Dont try this at home.
15
Programming Model Ecosystem Issues

• Semantic mismatch between programming model and
  execution model
• Debugging data races and non-determinism
• Performance analysis why isnt performance
  scaling
• insufficient parallelism
• parallelism is too fine grain to be efficient
• architecture level issues, e.g., false sharing

16
A Path Forward

• Kernel, benchmark, and application driven studies
• assess strengths and weaknesses of models
• Explore alternatives evaluate their effects on
• simplicity
• expressiveness
• correctness
• performance
