Regression Diagnostics

1

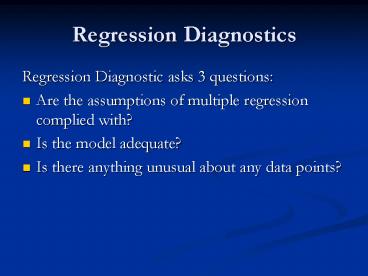

Regression Diagnostics

• Regression Diagnostic asks 3 questions
• Are the assumptions of multiple regression
  complied with?
• Is the model adequate?
• Is there anything unusual about any data points?

2
Checking for Non-violation of Assumptions

• Linearity of relationship between each X and Y
  can be checked by scatter plot of Y against each
  X.
• Normality of distribution of Y data points can be
  checked by plotting a histogram of residuals.
• Independence of explanatory variables from each
  other can be checked by scatter matrix, Variance
  Inflation Factor and Durbin-Watson statistic.

3
Diagnosis of Multi-collinearity

• Check by means of correlation matrix
• Significant F but non-significant t-ratios.
• Variance Inflation. Large changes in regression
  coefficients when variables are added or deleted.
• Variance Inflation Factor (VIF) gt 4 or 5 suggests
  multi-collinearity VIF gt 10 is strong evidence
  that collinearity is affecting the regression
  coefficients.
• Durbin Watson statistic is another check for
  collinearity. (Normal value 0-4).

4
Diagnosis of Violation of Assumptions

• Residual Plots are used to check for
• Variance not being constant across the
  explanatory variables.
• Fitted relationship not being linear.
• Random variation not having a Normal distribution.

5
Fitted Values and Residuals

• Fitted values (Fits) are the estimates of Y as
  determined by the regression equation.
• Residuals (Resids) are the differences between
  each observed value and the corresponding fitted
  value.

6
Residual Plots
7
Abnormal Patterns in Residual Plots

• Figures a). and b). suggest non-linear
  relationship between X and Y.
• Fig. c). Suggests autocorrelation.
• Fig. d). Suggests variance is not the same since
  the spread of Y values is far greater for larger
  values of X.

8
Checking Unusual Data Points

• Check for outliers long distance away from the
  rest of the data. They exercise leverage, which
  is checked by hi. It is considered large if
  more than 3 x p /n (pnumber of predictors
  including the constant). Flagged by X in
  printout.
• Cooks Distance which measures the influence of a
  data point on the regression equation. Cooks D gt
  1 requires careful checking gt 4 suggests
  potentially serious outliers.

9
Patterns of Outliers

• a). Outlier is extreme in both X and Y but not in
  pattern. Removal is unlikely to alter regression
  line.
• b). Outlier is extreme in both X and Y as well as
  in the overall pattern. Inclusion will strongly
  influence regression line
• c). Outlier is extreme for X nearly average for
  Y.
• d). Outlier extreme in Y not in X.
• e). Outlier extreme in pattern, but not in X or
  Y.
