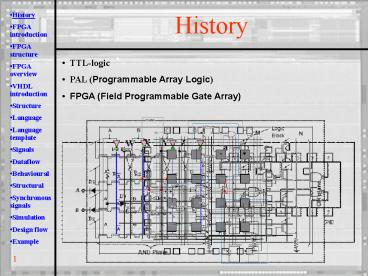

History

1
History

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• TTL-logic
• PAL (Programmable Array Logic)
• FPGA (Field Programmable Gate Array)

1
2
FPGA Introduction

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Logical element / slice
• Programmable interconnections
• RAM, DSP, PLL, IO,

2
3
FPGA Structure

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Look-up table Ff(F1,F2,F3,F4)
• Flip-flop
• Multiplexer

3
4
FPGA Overview

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

4
5
VHDL Introduction

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• VHDL (VHSIC Hardware Description Language)
• VHSIC (Very High Speed Integrated Circuit)
• Original Language for description, simulation
  and documentation of digital systems
• Now Language for description, simulation,
  documentation and syntheses of digital systems
• First developments around 1970
• First standardization in 1987 by IEEE (IEEE
  1076-1987)
• Later adjusted in 1993 (VHDL-93)
• Again adjusted in 2001 (VHDL-2001)
• Other languages (Verilog, Abel, ..) are available

5
6
Structure

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Component (inputs, outputs, behaviour)

• Entity, architecture, signals

6
7
Language

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

XOR function
entity XORport is port ( A,B in BIT C
out BIT ) end XORport
architecture dataflow of XORport is begin CltA
xor B end dataflow
7
8
Language Template

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

architecture architecture-name of entity-name
is variable declarations signal
declarations constant declarations function
definitions component declarations begin concurr
ent-statement concurrent-statement end
architecture-name
entity entity-name is port ( signal-names
mode signal-type signal-names mode
signal-type ) end entity-name
8
9
Signals

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Signal-modes
• in
• out
• buffer
• inout

• Signal-types
• bit (1 or 0)
• bit_vector (combination of bits)
• boolean (true or false)
• integer (-2311 to 231-1)
• real
• user-defined types (defined by libraries)
• std_logic
• std_logic_vector

• Problems with bit signal-types
• Unknown values
• Dont care
• Pull-up or pull-down
• Tri-state

• std_logic type
• U --Not initialized
• X --Forcing Unknown
• 0 --Forcing 0
• 1 --Forcing 1
• Z --High Impedance
• W --Weak Unknown
• L --Weak 0
• H --Weak 1
• - --Dont care

• Signal
• Physical value
• Line or register in design
• Has history of values
• Can be observed in simulation
• Variable
• Temporally value
• Only defined in process, block, procedure,
  function
• Used to make design more readable
• Cant be observed in simulation
• Constant
• Used in generic programming
• Used to make design more readable
• Cant be observed in simulation

9
10
Dataflow

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• CltA xor B
• Defines direct relation between output and input
• Sequence not important (parallelism)
• Asynchronous
• Difficult for complex functions
• Difficult to understand

• QltR nor nQ
• nQltS nor Q
• start R'0', S'0', Q'1', nQ'0
• step 1 R'1', S'0', Q'1', nQ'0 (Assert R)
• step 2 R'1', S'0', Q'0', nQ'0 (Q changes)
• step 3 R'1', S'0', Q'0', nQ'1 (nQ changes)
• step 4 R1', S'0', Q'0', nQ'1 (no changes
  gt stop)

10
11
Behavioural

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Sequence important
• Asynchronous
• Divides complex functions in manageable parts
• Easier to understand

process(signal-names) begin -- sequential
code e.g. if (condition) then action1 els
e action2 end if end process
11
12
Structural

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

--component declarations component
entity-name port ( signal-names mode
signal-type ) end component
--signals to connect blocks signal-names mode
signal-type begin component-name
component port map ( signal-mapping )

• Divide problems into sub-problems
• Connecting blocks
• Reuse

12
13
Synchronous Signals

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

process(clk) begin if (clk'EVENT and clk'1')
then action end if end process

• Rising or falling edge
• No else condition
• Clock signal in process list

13
14
Simulation

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Test functionality of each block
• Test interaction between blocks
• Test bench written in VHDL
• Assert stimuli, observe outputs
• Possible to look at internal signals

14
15
Design Flow

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Create new project
• Select FPGA device
• Create new VHDL file
• Simulation
• Assign pins
• Synthesis and fitting
• Program device
• Test new hardware

15
16
Example

• History
• FPGA introduction
• FPGA structure
• FPGA overview
• VHDL introduction
• Structure
• Language
• Language template
• Signals
• Dataflow
• Behavioural
• Structural
• Synchronous signals
• Simulation
• Design flow
• Example

• Quiz buttons (2 players, first push wins, reset)

library IEEE use IEEE.std_logic_1164.all use
ieee.std_logic_unsigned.all entity tstbench
is end tstbench architecture test of tstbench
is component QuizButton is port ( button1,
button2 in std_logic reset in
std_logic light1, light2 out
std_logic ) end component signal clk
std_logic '0' signal rst std_logic
'0' signal testData std_logic_vector(1 downto
0) "00" begin uut QuizButton port map
( button1gttestData(0), button2gttestData(1),
resetgtrst ) end test
architecture dataflow of QuizButton is signal
state1 std_logic '0' signal state2
std_logic '0' begin process(button1,
button2, reset) begin if (button1'1' and
state2'0') then state1lt'1' end if if
(button2'1' and state1'0') then state2lt'1'
end if if (reset'1') then state1lt'0'
state2lt'0' end if end process light1ltsta
te1 light2ltstate2 end dataflow
library IEEE use IEEE.STD_LOGIC_1164.ALL entit
y QuizButton is port ( button1, button2 in
std_logic reset in std_logic light1,
light2 out std_logic ) end QuizButton
process(clk) begin clk lt not clk after 20
ns -- 50MHz if (clk'0') then rstlt'1' el
se rstlt'0' testDatalt"00" testDataltte
stData1 after 10 ns end if end process
16
