Branch Predictor Design for AE64000

1

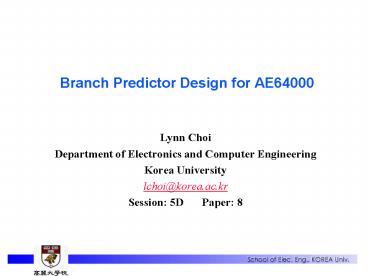

Branch Predictor Design for AE64000

• Lynn Choi
• Department of Electronics and Computer
  Engineering
• Korea University
• lchoi_at_korea.ac.kr
• Session 5D Paper 8

2
Motivation

• Demand for high performance embedded processors
• ? High-end embedded applications
• ? Many uses of embedded processors
• Addition of a branch predictor
• ? To achieve higher performance
• ? The most cost-effective method

3
AE64000 Characteristics

• IFU to minimize performance decrease caused by
  LERIs
• Additional two pipeline stages (IFU1IFU2) to
  eliminate LERIs
• 3 line buffers to store 12 instructions
• PrePC in IFU and PC in the pipeline core
• Branch misprediction penalty
• Branch misprediction penalty 3 cycles

4
Branch Predictor Design for AE64000

• Issues in branch predictor design for AE64000
• AE64000 has additional two stages (IFU1-IFU2) in
  front of 5-stage pipeline core. At which pipeline
  stage prediction should be performed?
• ? IFU1 stage
• Due to line buffers in the IFU, predicted target
  addresses need to be buffered as well to verify
  branch prediction results
• ? need buffers for predicted branch target
  addresses (PTAB)
• Since 4 instructions are fetched at a time,
  multiple branches can be fetched at a time as
  well.
• ? Only the first taken branch will be
  predicted.
• To do that, TAC has the precise target
  address.
• Branch misprediction penalty
• Can be reduced from 3 to 2 cycles by updating PPC
  at the same cycle that PC is updated by adding a
  MUX in the IFU

5
Branch Predictor
For AE64000

• Separate BPT with TAC
• PTAB to store predicted target address for
  instructions in the line buffer
• Branch prediction verification in the ID stage

6
Predicted Target Address Buffer

• Predicted Target Address Buffer (PTAB)
• For branch instructions in the line buffer
• When we send a branch instruction to the pipeline
  core, we also send the corresponding predicted
  target address

7
Simulation Environment

• Developed a cycle-accurate AE64000 simulator
• Simulated 1 billion instructions
• 30 minutes on P4 1.6GHz with 512MB RAM
• Indirect branches are not predicted in the
  simulation
• Input AE64000 compiler binary, memory
  predictor configuration parameters
• Output IPC, BPT/TAC hit ratios, etc.
• Benchmark
• SPECint95 (compress, go)
• Dhrystone
• Whetstone
• Predictors tested
• Last-time predictor
• Bimodal predictor
• G-share predictor

Simulator Block Diagram
8
Simulation Results

• Without branch predictor (IPC)

Classification 3-cycle misprediction penalty 2-cycle misprediction penalty
Compress 0.6787 0.7429
Go 0.6905 0.7322
Dhrystone 0.6500 0.7200
Whetstone 0.5569 0.6521
9
Simulation Results

• Last-time branch predictor

10
Simulation Results (contd)

• Bimodal Branch Predictor

11
Simulation Results (contd)

• G-share Branch Predictor

12
Conclusion

• Simulation result analysis
• Consider both performance and area
• The additional performance gain by g-share and
  bimodal predictors are negligible compared to
  their size and complexity.
• Final design
• Last-time predictor with 4-way set-associative
  8-entry TAC with LRU replacement
• IPC is improved 10 by reducing the branch
  prediction penalty from 3 to 2 cycles
• Additional 15 IPC improvement by branch
  predictor
• About 11500 gate (about 2.64 area) in Verilog
  HDL model
• Thus, we can improve the performance of AE64000
  by 25 with less than 3 cost
