Statistical Simulation of Superscalar Architectures using Commercial Workloads

1

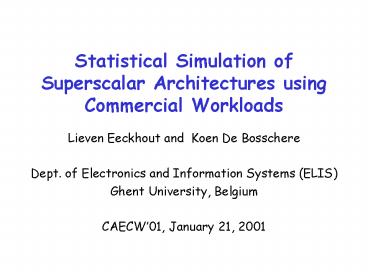

Statistical Simulation of Superscalar
Architectures using Commercial Workloads

• Lieven Eeckhout and Koen De Bosschere
• Dept. of Electronics and Information Systems
  (ELIS)
• Ghent University, Belgium
• CAECW01, January 21, 2001

2
Outline

• Introduction
• Statistical Simulation
• Statistical profiling
• Synthetic trace generation
• Methodology
• Evaluation
• Conclusion

3
Introduction

• Architectural simulation
• trace-driven or execution-driven
• accurate
• long simulation times
• long traces to be stored
• Need for fast simulation techniques
• take part of a full trace
• analytical modeling
• trace sampling
• statistical simulation

4
Goal

• Previous work used SPEC benchmarks to evaluate
  statistical simulation
• In this talk we use both commercial and
  scientific workloads
• SPECint, SPECfp, system traces, multimedia, X
  graphics, database

5
Statistical Simulation

• Three steps
• extract statistical profile from a program
  execution
• generate synthetic trace from it
• simulate on a trace-driven simulator
• Two major advantages
• statistical profile is more compact than full
  trace
• fast simulation due to statistical nature
• design space exploration in limited time

6
Statistical Simulation
real trace (e.g. SPEC benchmark)
branch profiling
cache profiling
instruction profiling
branch statistics
cache statistics
instruction statistics
7
Statistical Profiling

• Microarchitecture-independent statistics
• instruction statistics
• Microarchitecture-dependent statistics
• branch statistics
• cache statistics
• Result statistical simulation only to explore
  design options of processor core (cache and
  branch predictor are fixed)

8
Statistical ProfilingInstruction Statistics

• Instruction mix (13 classes)
• Number of register operands
• Age of register operands
• probability that register operand was produced ?
  instructions before it in the trace (only RAW)
• Memory dependencies
• probability that load is memory-dependent on the
  ?-th store before it in the trace (only RAW)

9
Statistical ProfilingBranch Statistics

• Six branch types
• conditional branch, unconditional branch, call
  with offset, indirect jump, indirect call, return
• Distinction
• branch prediction accuracy refill pipeline on
  branch misprediction
• branch target prediction accuracy single-cycle
  bubble in pipeline on correct branch prediction
  but target misprediction

10
Statistical ProfilingCache Statistics

• D-cache statistics
• L1 D-cache miss rate
• L2 D-cache miss rate
• I-cache statistics
• L1 I-cache miss rate
• L2 I-cache miss rate

11
Synthetic Trace Generation

• Instruction-by-instruction
• through random number generation
• Determine
• instruction type
• number of operands
• age of register operands
• memory dependency
• branch behavior
• D-cache behavior
• I-cache behavior

I-cache miss
D-cache miss
mispredicted
12
Methodology microarchitecture

• Out-of-order processor
• 8 and 16 issue
• windows of 64 and 128 instructions
• McFarling branch predictor
• small cache configuration
• 8KB DM L1 I-cache, 8KB DM L1 D-cache, 64KB 2WSA
  unified L2 cache
• large cache configuration
• 32KB DM L1 I-cache, 64KB 2WSA L1 D-cache, 512KB
  4WSA unified L2 cache
• Access time
• L1 I-cache (1 cycle), L1 D-cache (2 cycles), L2
  cache (10 cycles), main memory (80 cycles)

13
Methodology benchmarks

• 8 SPECint95 benchmarks
• 5 SPECfp95 benchmarks (hydro2d, su2cor, swim,
  tomcatv, wave5)
• 8 IBS system traces (mpeg, jpeg, gs, verilog,
  gcc, sdet, nroff, groff)
• 4 MediaBench applications (g721, gs, gsm, mpeg2)
• 4 X graphics benchmarks (DooM, POVRay, Xanim,
  Quake)
• 2 TPC-D queries running on Postgres 6.3
• 200 million instructions / trace

14
Evaluation

• IPC prediction error
• IPC real trace - IPC synthetic trace
• IPC real trace
• IPC real trace IPC when running real trace on
  trace-driven simulator
• IPC synthetic trace IPC when running synthetic
  trace generated from the statistical profile of
  the real trace
• Simulation speed sIPC/xIPC less than 1 after
  simulating 1 million instructions

15
IPC prediction error (1)
high D-cache miss rate
157
135
40
30
20
10
IPC prediction error
0
-10
-20
-30
li
go
gs
gs
perl
jpeg
sdet
gcc
ijpeg
nroff
groff
swim
verilog
gsm_e
mpeg2
xanim
mpeg
tpc-d.2
vortex
wave5
su2cor
xdoom
xquake
hydro2d
g721_e
xpovray
tomcatv
tpc-d.17
real_gcc
m88ksim
compress
SPECint95
SPECfp95
IBS
MediaBench
X graphics
TPC-D
16-issue, 128-entry window, small cache
configuration
16
IPC prediction error (2)
30
20
10
IPC prediction error
0
-10
-20
-30
li
go
gs
gs
gcc
jpeg
ijpeg
sdet
perl
nroff
groff
swim
verilog
mpeg
gsm_e
mpeg2
xanim
vortex
tpc-d.2
wave5
xquake
su2cor
xdoom
g721_e
xpovray
tomcatv
tpc-d.17
real_gcc
hydro2d
m88ksim
compress
SPECint95
SPECfp95
IBS
MediaBench
X graphics
TPC-D
16-issue, 128-entry window, large cache
configuration
17
IPC prediction error vs. static instruction count
160
w 64 i 8 'small' cache
140
w 128 i 16 'small' cache
120
w 64 i 8 'large' cache
nroff jpeg (IBS) verilog sdet
100
w 128 i 16 'large' cache
80
mpeg (IBS) groff
gcc
DooM Quake
gs (IBS)
IPC prediction error
60
40
20
0
gcc (IBS)
vortex go
TPC-D
-20
-40
0
20000
40000
60000
80000
100000
120000
140000
160000
static instruction count (number of instructions
executed at least once)
18
Conclusion (1)

• Higher IPC prediction errors for applications
  with smaller static instruction count
• MediaBench applications
• SPECfp95 benchmarks
• 2 X graphics benchmarks (POVRay and Xanim)
• 5 SPECint95 benchmarks

19
Conclusion (2)

• Smaller IPC prediction errors for applications
  with larger instruction footprint
• IBS system traces
• TPC-D traces
• 2 X graphics benchmarks (DooM and Quake)
• 3 SPECint95 benchmarks (go, gcc, vortex)
• IPC prediction error between -1 and 25

20
Conclusion (3)

• Statistical simulation is a useful fast
  simulation technique for commercial workloads
• due to higher variability in instructions
• since commercial workloads have larger
  instruction footprint
• which makes a statistical technique more powerful
