XST Synthesis

1

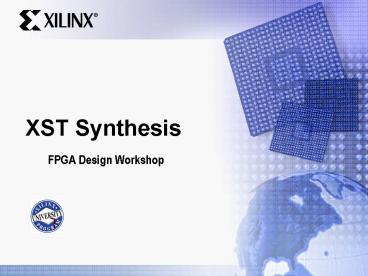

XST Synthesis

• FPGA Design Workshop

2
Objectives

• After completing this module, you will be able
  to

• List the synthesis options for XST.
• Describe how to insert code from the Language
  Template.
• Specify various methods for entering constraints.

3
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 2 XST Synthesis

4
Xilinx Design Process

• Step1 Design
• Two design entry methods HDL(Verilog or VHDL) or
  schematic drawings
• Step 2 Synthesize to create Netlist
• Translates V, VHD, SCH files into an industry
  standard format EDIF file
• Step 3 Implement design (netlist)
• Translate, Map, Place Route
• Step 4 Configure FPGA
• Download BIT file into FPGA

HDL code
Schematic
Synthesize
Netlist
Implement
BIT File
5
XST Features

• RAM inferencing
• Schematic viewer
• Error navigation
• Timing-driven synthesis
• Fanout control
• Note Mixed language designs are not supported

6
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• Log Reports
• Summary
• Lab 3 XST Synthesis

7
XST Synthesis in Project Navigator

• Module/entity selected in Sources window treated
  as top
• XST-specific processes
• Synthesize
• View Synthesis Report
• Analyze Hierarchy
• Check Syntax
• XST-specific properties
• Synthesis Options
• HDL Options
• Xilinx Specific Options

AM2910 as top-level
8
Device Support
XST provides technology specific optimization for

• FPGAs
• Virtex
• Virtex-E
• Virtex-II
• Virtex-II Pro
• Spartan-II
• Spartan-IIE

• CPLDs
• XC9500
• XC9500XL
• XC9500XV
• CoolRunner
• CoolRunner-II

9
XST Flow
VHDL
Verilog

Constraints
Synthesis Technology Specific Optimization
To Implementation Tools
Synthesis Report File
.LOG
.NGC
10
Main Synthesis Steps
HDL
HDL ParsingIdentification of language syntax
errors
HDL SynthesisMacro recognition, FSM
extraction,resource sharing
Low Level OptimizationMacro implementation,
timing optimization,LUT mapping, register
replication
.NGC
.LOG
11
Macro Inference

• Macro inference consists of two main steps
• Recognition (HDL synthesis level) XST tries to
  recognize as many macros as possible
• Implementation (low level optimization) XST
  makes technology dependent choices
• Improve design performance and decrease area
• Preserve the macro as a macro?
• Merge the macro with surrounded logic?
• Choices depends on the macro type and size
• If XST decides to preserve the macro, you must
  decide the way the macro is to be implemented

12
Macro Inference
Supported Macros
Sequential
Combinatorial
Special Cases

• Black boxes
• Primitives

• Arithmetic
• Adders
• Subtractors
• Adder/subtractors
• Comparators
• Multipliers
• Dividers
• Multiplexers
• Decoders
• Priority encoders
• Logical shifters
• Three states

• Registers
• Latches
• Counters
• Accumulators
• Shift registers
• RAMs
• ROMS
• FSMs
• Reg. multipliers

13
FSM Recognition

• XST is able to recognize state machines
  independent of the modeling style used
• For example, you may have several processes (one,
  two, or three) in your description, depending on
  how you consider and decompose
• Notes
• XST can handle/recognize synchronous state
  machines
• Currently, XST requires FSM with initialization
  signals, which can be asynchronous or synchronous

14
FSM Optimization

• Optimization is based on
• State assignment
• Flip-flop (FF) type selection
• State assignment - XST supports
• One-Hot - speed optimization
• Compact - area optimization (Xilinx proprietary)
• Gray - minimizes hazards and glitches
• Also Johnson, Sequential, User Defined
• User Encoding - XST will use the original
  encoding specified in the HDL file
• If you use enumerated type for your state
  registers, you can use the enum_encoding
  constraint to assign a specific binary value to
  each state

15
ISE GUI

• Synthesis options
• Global synthesis and optimization goal and effort
• HDL options
• Family-specific inference and optimization
  options
• Xilinx Specific options
• Specific low-level implementation and
  optimization algorithms

16
XST Synthesis Options

• Set global synthesis, optimization goal, and
  effort
• Optimization Goal (speed/area)
• Optimization Effort (normal/high)
• Synthesis Constraints File
• Any text file
• Use Synthesis Constraints File
• Global Optimization Goal
• Generate RTL Schematic
• Write Timing Constraints
• Verilog 2001

17
XST HDL Options

• Set family-specific inference and optimization
  options
• FSM Encoding Algorithm
• RAM/ROM/Multiplexer Extraction
• RAM/Multiplexer Style
• Decoder/Priority Encoder Extraction
• Shift Register/Logical Shifter Extraction
• XOR Collapsing
• Resource Sharing
• Complex Clock Enable Extraction

18
XST Xilinx-Specific Options

• Set specific low-level implementation and
  optimization algorithms
• Add I/O Buffers
• Maximum Fanout
• Equivalent Register Removal
• Register Balancing
• Move First/Last Flip-Flop Stage
• Slice Packing
• Pack I/O Registers into IOBs

19
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 3 XST Synthesis

20
Language Templates

• Two methods to open templates
• Language Icon
• Edit -gt Language Templates
• Language Templates provide common templates for
  designs
• Component instantiation
• Language templates
• Synthesis templates

21
Language Templates

• To use template, be sure that an HDL source file
  is already opened
• Place cursor at the location for the code to be
  entered
• In the Language Template GUI, right-click on the
  template you wish to use
• Select Use in
• Be sure the appropriate file name is listed

22
HDL Libraries

• Create VHDL Library using New Source Wizard
• HDL Libraries Displayed in Libraries Tab of
  Sources Window

23
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 3 XST Synthesis

24
What are Constraints?

• Writing constraints is a method of communicating
  your design and performance objectives to the
  synthesis tools and implementation tools

25
Xilinx Design Process

• Step1 Design
• Two design entry methods HDL(Verilog or VHDL) or
  schematic drawings
• Step 2 Synthesize to create Netlist
• Translates V, VHD, SCH files into an industry
  standard format EDIF file
• Step 3 Implement design (netlist)
• Translate, Map, Place Route
• Step 4 Configure FPGA
• Download BIT file into FPGA

HDL code
Schematic
Synthesize
Synthesis CONSTRAINTS
Netlist
Implementation CONSTRAINTS
Implement
BIT File
26
XST Constraints

• XST will accept synthesis constraints through the

  Xilinx Constraints File (XCF)
• Do not confuse this with the User Constraints
  File (UCF), which contains implementation
  constraints for the Xilinx tools
• When using an XCF file, specify the file in the
  Synthesis Options tab

27
XST Constraints

• To quickly enable or disable the use of a
  constraint file by XST, you can check or uncheck
  the Use Synthesis Constraint File menu

-uc
-iuc
28
Constraint Types

• Constraints in the XCF file can be divided into
  two groups
• Timing
• Non-timing
• For all non-timing constraints, the MODEL or
  BEGIN MODEL...END constructs must be used
• This is true for pure XST constraints, such as
  FSM_EXTRACT or RAM_STYLE, as well as for
  implementation constraints, such as RLOC or KEEP
• For timing constraints, such as PERIOD, OFFSET,
  TNM_NET, TIMEGRP, TIG, FROM-TO, etc., XST
  supports native UCF syntax, including the use of
  wildcards and hierarchical names
• Do not use these constraints inside the BEGIN
  MODEL... END construct because XST will issue an
  error

29
XCF - MODEL

• To apply a constraint to the entire entity or
  module, use the following syntax
• MODEL entity_name constraint_name
  constraint_value
• Note If a constraint is applied to an entity or
  module, the constraint
• will be applied to each instance of
  the entity/module
• To apply constraints to specific instances or
  signals within an entity or module, use the INST
  or NET keywords
• BEGIN MODEL entity_name
• INST instance_name constraint_name
  constraint_value
• NET signal_name constraint_name
  constraint_value
• END

30
Sample FPGA Constraints/Attributes

• allclocknets
• period
• max_delay
• mux_style
• ram_style
• maxfanout
• register_duplication
• keep_hierarchy
• For more information on attribute syntax, consult
  the XST Users Guide

31
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraint Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 3 XST Synthesis

32
Design Constraints

• If XST decides to push flip-flops to IOBs, then
  the following cases are taken into account
• Flip -flops controlling OBUFTs will be replicated

33
Design Constraints

• Flip-flops having feedback will be replicated

A
RES
CLK
A
CLK
RES
IOBTRUE
34
Design Constraints

• If the output flip-flop belongs to a shift
  register and represents its last stage, then it
  will be pushed to an IOB
• Note XST will not reduce the number of stages in
  SRL and infer additional flip-flops in order to
  improve the clock-to-out of the slice
• Example If the user has described a 16-bit shift
  register, then

RESULT Generated by XST
SLICE
IOBTRUE
SLICE
SI
SRL 14 bit
RES
IOBTRUE
reg
reg
SI
SRL 15 bit
RES
reg
CLK
CLK
35
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 3 XST Synthesis

36
How XST Identifies Critical Paths During Timing
Optimization

• Notes
• Other synthesis tools apply frequency
  specification to all four regions
• ALLCLOCKNETS (the default constraint for timing
  optimization) in XST represents only
  clock-to-clock regions
• MAX_DELAY is the constraint incorporating all
  four regions.

37
How XST Identifies Critical Paths During Timing
Optimization

• The identification of a critical path depends on
  the timing constraints and is based on the slack
  calculation
• The value of the slack depends on the way the
  constraints are applied
• As soon as all of the slacks are identified, XST
  will choose the smallest (most negative) one in
  order to identify the Critical Region
• Let us consider the following example

38
How XST Identifies Critical Paths During Timing
Optimization

• Suppose we have two clocks (clk1, clk2) in the
  design. Before timing optimization their periods
  are estimated as
• clk1 30 ns
• clk2 25 ns
• If no value is supplied with the ALLCLOCKNETS
  constraint, XST will calculate the slack assuming
  the goal delay is 0 ns
• clk1 -30 ns
• clk2 -25 ns
• As a consequence, clk1 will be considered the
  critical one and XST will try to optimize this
  clock first

39
How XST identifies Critical Paths During Timing
Optimization

• Suppose a PERIOD constraint defines individual
  timing requirement for each clock 25 ns for
  clk1, 15 ns for clk2. In this case the slack will
  be
• clk1 -5 ns
• clk2 -10 ns
• As a result, clk2 will be considered the critical
  one, and XST will try to optimize this clock
  first
• The ultimate goal, in both cases, is to increase
  the slack of all paths within the Critical
  Region. However, the final results of
  optimization are directly affected by the types
  and values of the constraints applied

40
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 3 XST Synthesis

41
Understanding the Log File

• The log file can be divided into three main parts

HDL Compilation
HDL Analysis
Table of synthesis options
HDL Synthesis
Messages generated duringsynthesis
Low LevelSynthesis
Final report
General Statistic Table
Timing Report
42
Log File Organization
TABLE OF CONTENTS 1) Synthesis Options Summary
2) HDL Compilation 3) HDL Analysis 4) HDL
Synthesis 4.1) HDL Synthesis Report 5) Low
Level Synthesis 6) Final Report 6.1)
Device utilization summary 6.2) TIMING
REPORT . . .

HDL Compilation

Compiling vhdl
file constant.vhd in Library my_lib. . .
.

HDL Synthesis

Synthesizing Unit
ltled_decgt. . . .
43
Messages During Synthesis

• The structure of this part directly reflects the
  main steps of the synthesis

• Lists files used during
• synthesis

• Syntax check Warnings
• and Errors

HDL Compilation
HDL Analysis
...

• Information on extracted
• macros and FSMs for
• each hierarchical block
• Summary Table on extracted macros for the
  entire design
• Encoding style chosen for each FSM

Messages generatedduring synthesis
HDL Synthesis
Low LevelSynthesis
...

• Information on register
• replication and removal

44
Final Report
...
Messages generated during synthesis
GeneralStatistic Table
Final Report
Timing Report (FPGA only)
45
Timing Report

• XST is trying to keep its post-synthesis timing
  report close to the report generated by TRACE
• Moreover, we have added a new table at the
  beginning of the report summarizing clock
  information of the design
• List of all clocks in the design
• How each clock is bufferized
• How many loads each clock has

46
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 3 XST Synthesis

47
Summary

• XST is provided with v5.2i ISE software
• XST provides various options for synthesizing
  designs
• Language Templates allow you to re-use commonly
  used code
• Several methods for entering constraints

48
Outline

• Introduction
• XST Synthesis
• Templates and Libraries
• XST Constraints Entry
• Design Constraints
• Timing Constraints
• XST Report File
• Summary
• Lab 3 XST Synthesis

49
Lab 3 XST Synthesis

• Synthesize a verilog design using XST
• View the report file
• Take a snapshot
• Change synthesis options
• Add constraints to design
• View timing results
